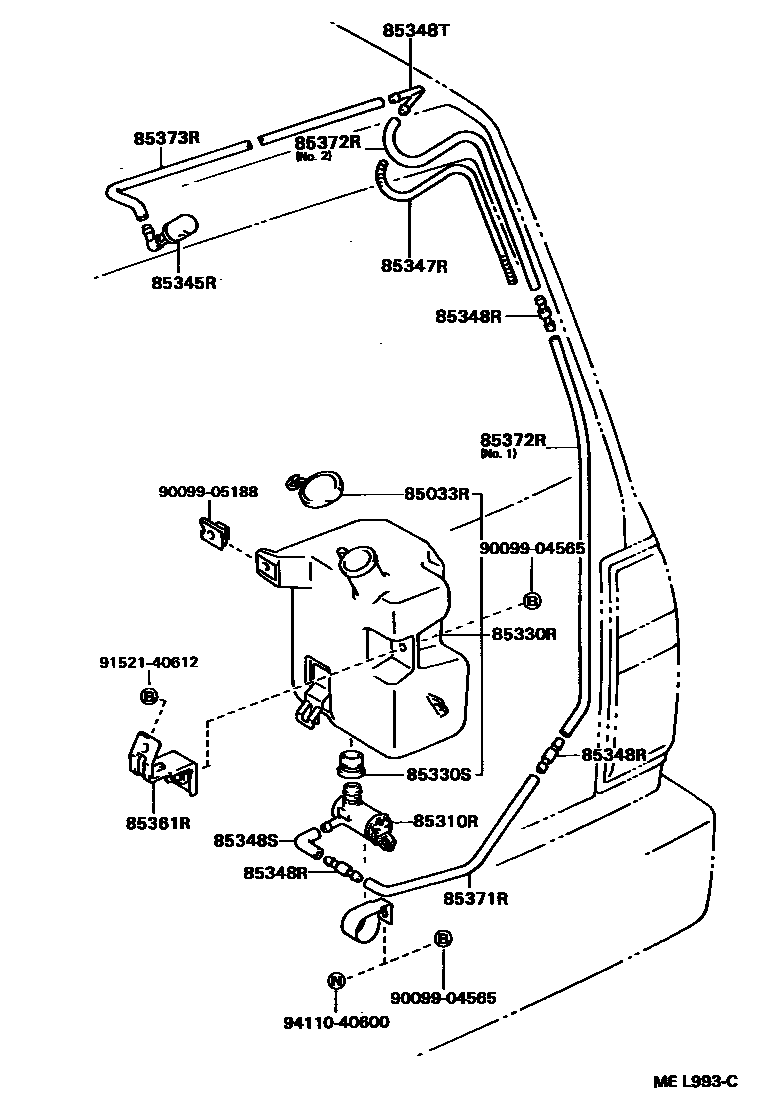

REAR WASHER

85033RCAP ASSY, REAR WASHER

main85332-30050iRX72198810-199302

85310RMOTOR ASSY, REAR WASHER

main85310-30060iRX72198810-199302

sub85310-89115

85330RJAR ASSY, REAR WASHER

main85331-22430iRX72198810-199302

85330SBUSH, REAR WASHER JAR

main90099-32089iRX72198810-199302

85345RNOZZLE, REAR WASHER

main85341-16090iRX72198810-199302

85347RSPRING

main85349-22191iRX72198810-199302

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iRX72198810-199302

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iRX72198810-199302

85348TJOINT, REAR WASHER HOSE, NO.2

main85355-12360iRX72198810-199302

85361RHOLDER, REAR WASHER

main85361-22430iRX72198810-199302

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06013iRX72198810-199302

L=1000

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iRX72198810-199302

L=1450,NO.2

main90446-07001iRX72198810-199302

L=1800,NO.1

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iRX72198810-199302

L=1000

9009904565

main90099-04565

9009905188

main90099-05188

9152140612

main91521-40612

9411040600

main94110-40600

17 parts on this diagram · 1 diagram in section
