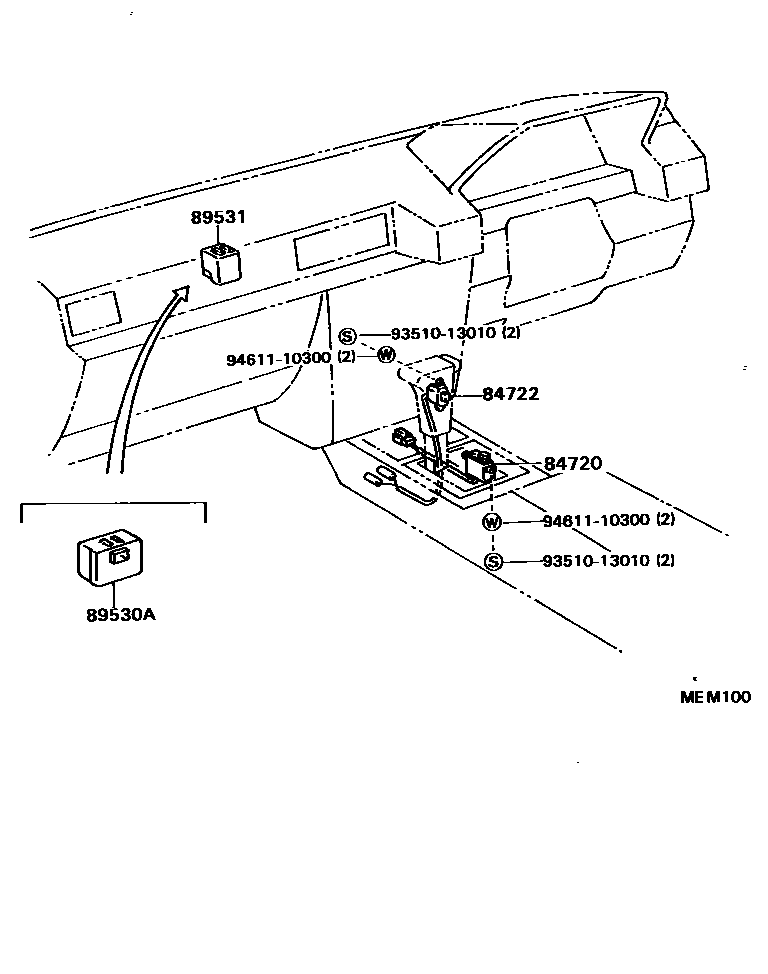

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

84720SWITCH ASSY, PATTERN SELECT

main84720-22081iMX75..GLX198812-199205

sub84720-14061

84722SWITCH, TRANSMISSION CONTROL

main84722-14070-03iGX71,MX75,RX73..4FC198812-199009

GRAY,TRIM1#

sub84722-14070

main84722-14070-23iRX72..4FC199008-199302

MEDIUM GRAY,TRIM1#

sub84722-14070

main84722-14070-42iRX72..4FC198810-199302

NEW MAROON,TRIM3#

sub84722-14070

main84722-14070-44iRX72..4FC198810-199008

BLUE,TRIM8#

sub84722-14070

main84722-14070-46iGX71,MX75,RX7#..4FC198810-199302

SABLE,TRIM4#

sub84722-14070

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-22410iGX71..4FC198812-199008

sub89530-22411

main89530-22411iGX71..4FC199008-199205

89531RELAY, TRANSMISSION CONTROL

main89531-28010iRX7#..4FC198810-199302

9351013010

main93510-13010

9461110300

main94611-10300

6 parts on this diagram · 2 diagrams in section
