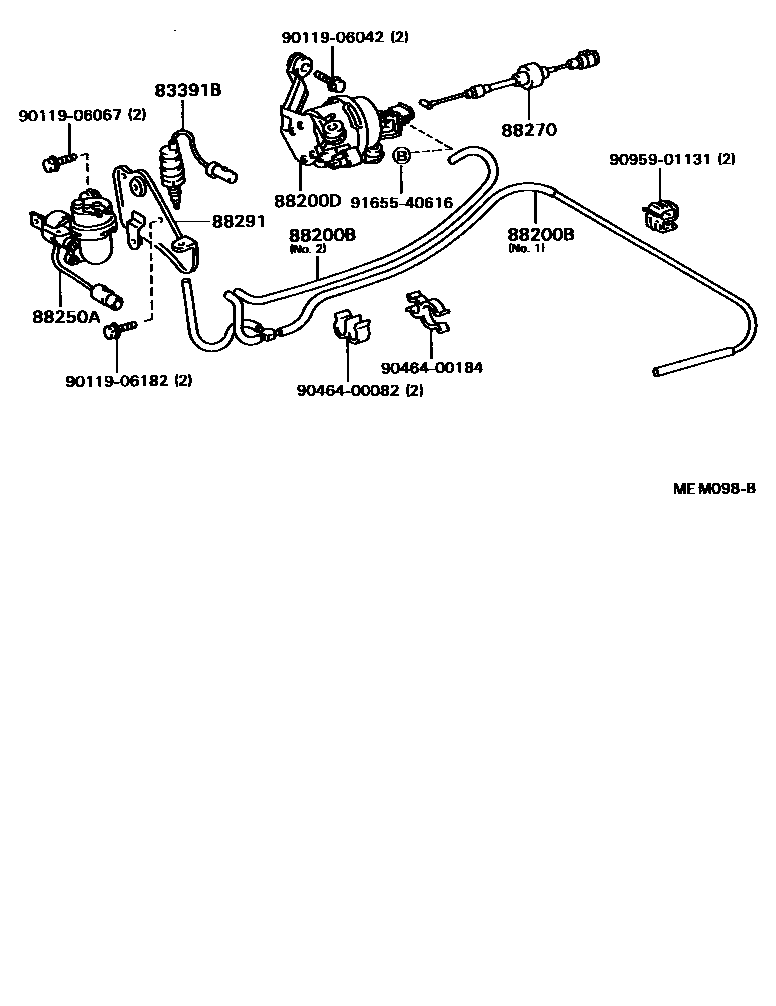

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

83391BSWITCH, AUTO DRIVE VACUUM

main83391-22040iMX75..GLX198812-199205

88200BHOSE, CRUISE CONTROL VACUUM

main88283-22170iMX75..GLX198812-199205

MARK=#*,NO.1

main90999-92003iMX75..GLX198812-199205

*H,L=480,MARK=#1,*H,L=480,MARK=#1,NO.2,NO.2

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-22152iMX75..GLX198812-199205

88250APUMP ASSY, CRUISE CONTROL

main88250-22011iMX75..GLX198812-199205

88270CABLE ASSY, CRUISE CONTROL(AUTO DRIVE)

main83731-22011iMX75..GLX198812-199205

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-22070iMX75..GLX198812-199205

9011906042

main90119-06042

9011906067

main90119-06067

9011906182

main90119-06182

9046400082

main90464-00082

9046400184

main90464-00184

9095901131

main90959-01131

9165540616

main91655-40616

13 parts on this diagram · 2 diagrams in section
