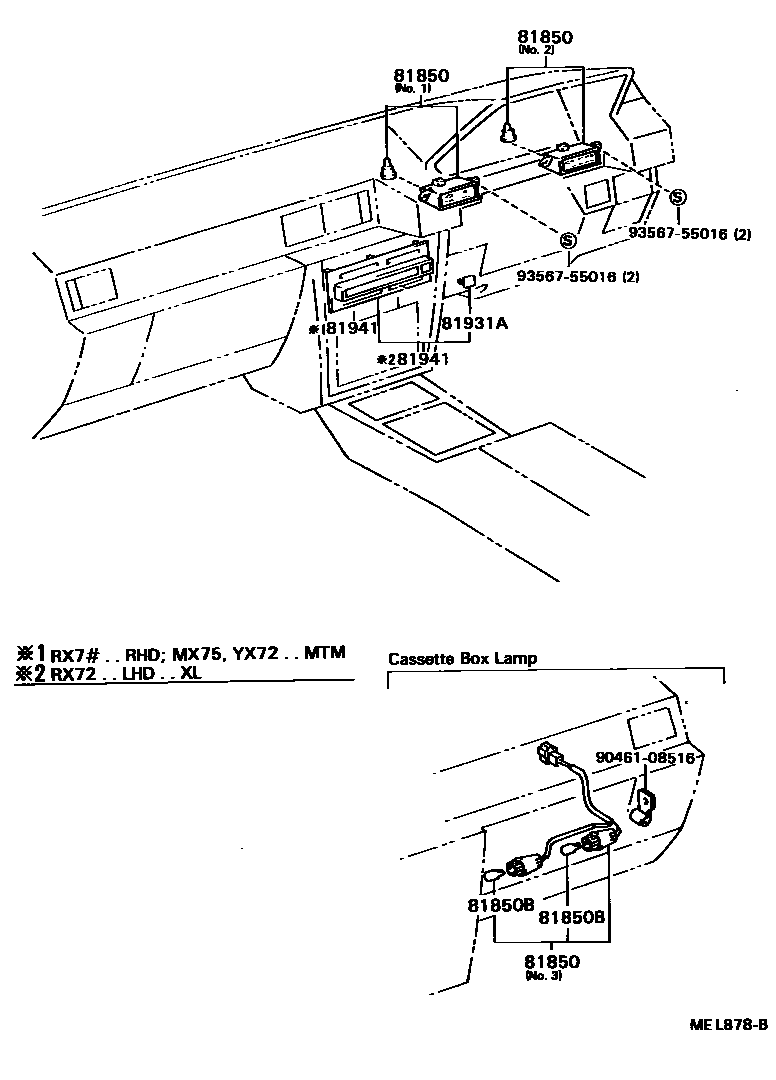

INDICATOR

81850LAMP ASSY, INDICATOR

main81850-22090iRX72..GL198810-199302

NO.3(CASSETTE BOX)

main81850-22350iMX75..GL;GX71,RX7#,YX72198810-199302

NO.1

main81850-22390iGX71,MX75,YX72198812-199205

NO.2

main81850-22440iRX7#198810-199302

NO.2

main81850-22460iMX75..GLX198812-199205

NO.1

81850BBULB, INDICATOR LAMP

main84999-50140iGX71,MX75,RX7#,YX72198810-199302

12V 1.4W,12V 1.4W,NO.2

main90981-11014iRX72..GL198810-199302

14V 1.4W,14V 1.4W,NO.3(CASSETTE BOX LAMP)

81931ACOVER, COOLER SWITCH HOLE

main55538-22041iRX72..XL;MX75,RX73,YX72..GL,STD,XL198810-199302

81941PLATE, HEATER CONTROL NAME

main55519-22122iMX75..GLX198812-199205

main55519-22162iMX75,RX7#,YX72..RHD..(GL,STD,XL)198810-199302

main55519-22182iRX72..RHD..GEN199008-199302

W(BOOST VENTILATOR)

main55519-22182iRX72..RHD..GEN198810-199008

W(AIR CONDITIONER & BOOST VENTILATOR)

main55519-22192iRX72..LHD..XL198810-199302

main55519-22222iRX72..GL198810-199302

main55519-22222iRX72..LHD..XL198810-199302

W(AIR CONDITIONER)

main55519-22232iRX72..LHD..GEN199008-199302

W(BOOST VENTILATOR)

main55519-22232iRX72..XL..V198810-199008

W(AIR CONDITIONER & BOOST VENTILATOR)

main55519-22251iGX71198812-199205

9046108516

main90461-08516

9356755016

main93567-55016

6 parts on this diagram · 1 diagram in section
