METER

0001 1DIGITAL 0002 1ANALOG,W 0003 1ANALOG,W(TACHOMETER) 0004 1CLOCK 0005 1SPEEDOMETER CABLE & ADAPTER

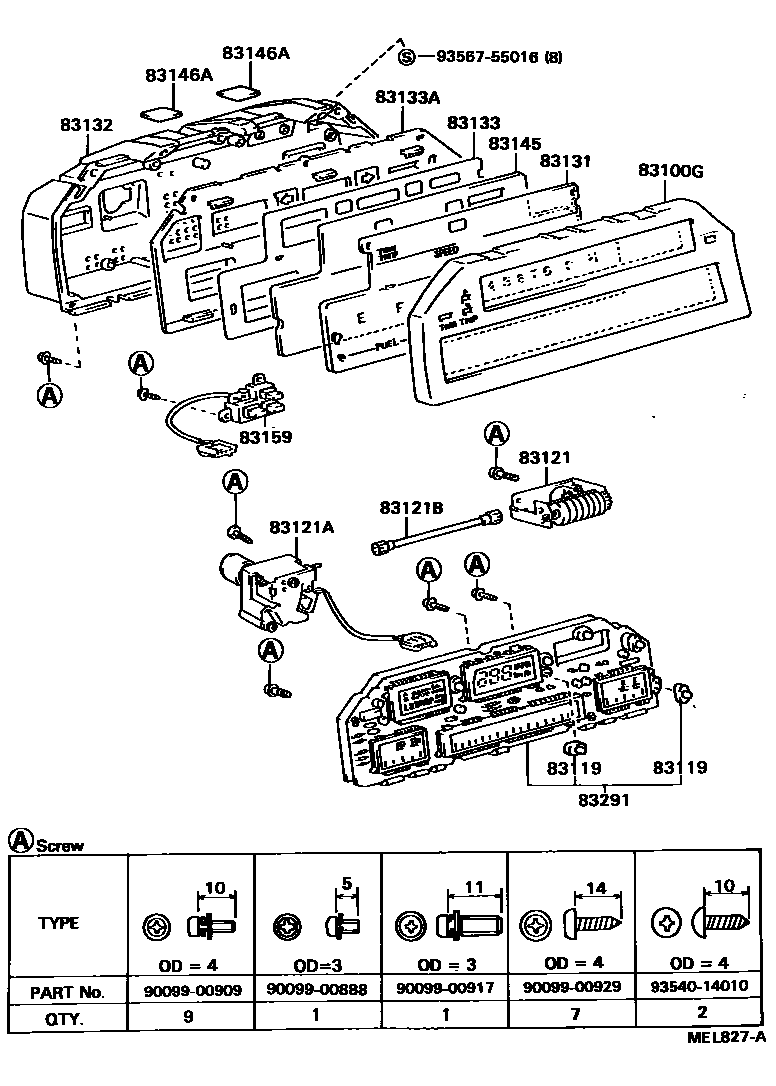

83100GGLASS, COMBINATION METER

main83133-22690iMX75..GLX198812-199205

main83134-2A380iRX72..5F..GL199008-199302

W(TACHOMETER)

main83134-2A400iRX72..4FC;RX72..LHD..XL198810-199302

main83134-2A440iMX75..GL;GX71,RX7#..SA198902-199008

main83134-2A460iRX72..4FC;RX72..XL..V198810-199008

W(TACHOMETER)

83119BULB, COMBINATION METER, NO.3

main83119-24010×3iMX75..GLX198812-199205

12V 1.4W W(SOCKET)

main83119-24050×3iMX75..GLX198812-199205

12V 1.4W,GREEN

83121COUNTER, TOTAL

main83121-22130iMX75..GLX198812-199205

83121ASENSOR, SPEED

main83111-22230iMX75..GLX198812-199205

83121BCABLE, COUNTER AND SENSOR

main83129-22090iMX75..GLX198812-199205

83131DIAL, METER, NO.1

main83131-22810iMX75..GLX198812-199205

83132CASE, COMBINATION METER

main83132-22260iRX72..RHD..GEN198812-199008

W(TACHOMETER)

main83132-22370iMX75..GLX198812-199205

main83132-2A120iRX72..5F..GL;RX72,YX72..RHD198810-198902

main83132-2A140iRX72..LHD..GEN198810-199008

W(TACHOMETER)

main83132-2A160iRX72..4FC;RX72..LHD..XL198810-199302

83133PLATE, COMBINATION METER, NO.1

main83133-22530iMX75..GLX198812-199205

83133APLATE, COMBINATION METER, NO.2

main83133-22630iMX75..GLX198812-199205

83145LENS, METER, NO.1

main83145-22370iMX75..GLX198812-199205

83146ACOVER, SPEEDMETER

main83146-22010×2iMX75..GLX198812-199205

83159SWITCH, METER, NO.1

main83159-22150iMX75..GLX198812-199205

83291COMPUTER, COMBINATION METER

main83291-22330iMX75..GLX198812-199205

9009900888

main90099-00888

9009900909

main90099-00909

9009900917

main90099-00917

9009900929

main90099-00929

9354014010

main93540-14010

9356755016

main93567-55016

19 parts on this diagram · 5 diagrams in section
