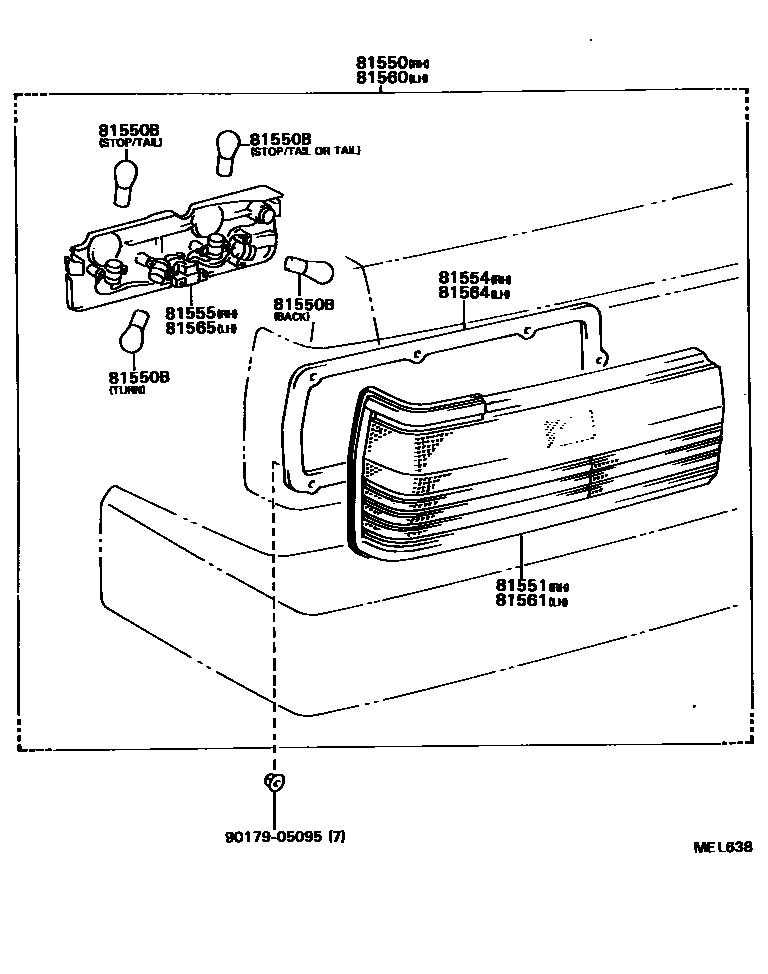

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-22720iGX71,MX75,RX73,YX72198812-199205

main81550-23210iRX72..SA198812-199205

main81550-91612iRX72..GEN,V198810-199302

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iGX71,MX75,RX7#,YX72198810-199302

12V 21W

main99132-21210iGX71,MX75,RX73,YX72198810-199302

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-22720iGX71,MX75,RX73,YX72198812-199205

main81551-23190iRX72..GEN,V198810-199302

main81551-23210iRX72..SA198812-199205

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-22620iGX71,MX75,RX73,YX72198812-199205

main81554-23190iRX72198810-199302

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-22720iGX71,MX75,RX73,YX72198812-199205

sub81555-22630

main81555-23190iRX72..GEN,V198810-199302

main81555-23210iRX72..SA198812-199205

81560LAMP ASSY, REAR COMBINATION, LH

main81560-22720iGX71,MX75,RX73,YX72198812-199205

main81560-23210iRX72..SA198812-199205

main81560-91614iRX72..GEN,V198810-199302

81561LENS, REAR COMBINATION LAMP, LH

main81561-22720iGX71,MX75,RX73,YX72198812-199205

main81561-23190iRX72..GEN,V198810-199302

main81561-23210iRX72..SA198812-199205

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-22620iGX71,MX75,RX73,YX72198812-199205

main81554-23190iRX72198810-199302

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-23190iRX72..GEN,V198810-199302

main81555-23210iRX72..SA198812-199205

main81565-22720iGX71,MX75,RX73,YX72198812-199205

sub81565-22630

9017905095

main90179-05095

10 parts on this diagram · 2 diagrams in section
