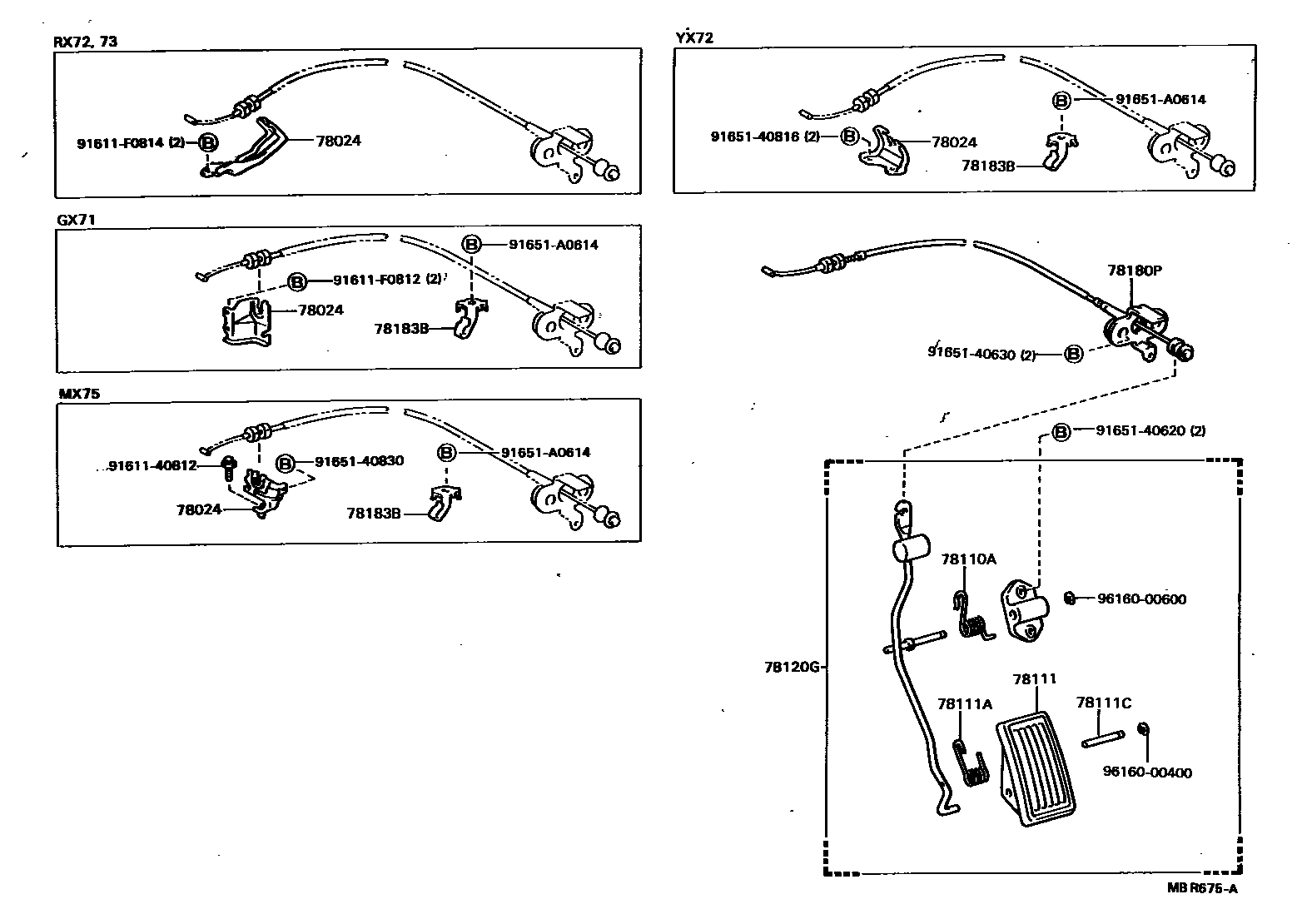

ACCELERATOR LINK

0001 1 0002 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-14070iMX75..GL198903-199205

main78024-22060iRX72..LHD198810-199302

main78024-22110iGX71198812-199205

sub78024-30100

main78024-22130iRX7#..RHD198810-199302

main78024-22140iMX75198812-198903

main78024-23010iYX72198812-199205

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18060iGX71,MX75,RX7#..4FC198810-199302

main90508-26054iGX71,MX75,RX7#,YX72..5F198810-199302

78111PEDAL, ACCELERATOR

main78111-12100iGX71,MX75,RX7#,YX72198810-199001

main78111-22010iGX71,MX75,RX7#,YX72199001-199302

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23088iGX71,MX75,RX7#,YX72198810-199302

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iGX71,MX75,RX7#,YX72198810-199302

78120GROD ASSY, ACCELERATOR PEDAL

main78120-22201iRX72..LHD..5F198810-199302

main78120-22221iGX71,MX75,RX7#,YX72..RHD..5F198810-199302

main78120-22231iGX71,MX75,RX73..4FC198812-199205

main78120-22241iRX72..4FC198810-199302

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-22481iRX72..LHD198810-199302

sub78180-2A330

main78180-22580iRX7#..RHD198810-199302

main78180-2A120iMX75..GL198812-199205

main78180-2A130iMX75..GLX198812-199205

main78180-2A260iGX71198812-199205

main78180-2A300iYX72198812-199205

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-22040iGX71,MX75,YX72198812-199205

9161140812

main91611-40812

91611F0812

main91611-F0812

91611F0814

main91611-F0814

9165140620

main91651-40620

9165140630

main91651-40630

9165140816

main91651-40816

9165140830

main91651-40830

91651A0614

main91651-A0614

9616000400

main96160-00400

9616000600

main96160-00600

18 parts on this diagram · 2 diagrams in section
