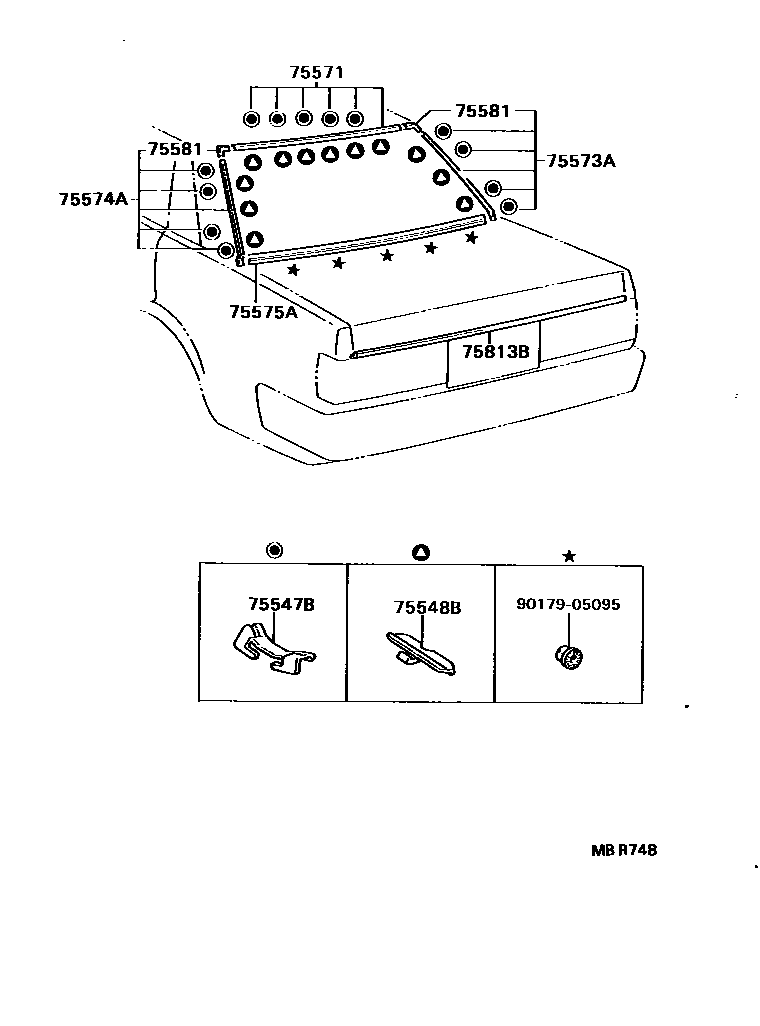

REAR MOULDING

0001 1 0002 1

75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-22030iGX71,MX75,RX73,YX72¥210198812-199205

75548BFASTENER, BACK WINDOW OUTSIDE MOULDING

main75548-22101iGX71,MX75,RX73,YX72¥340198812-199205

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-22110iGX71,MX75,RX73,YX72¥5,600198812-199205

main75571-23010iRX72¥3,540198810-199302

75573AMOULDING, BACK WINDOW, OUTSIDE RH

main75573-22110iGX71,MX75,RX73,YX72¥4,400198812-199205

main75573-23010iRX72¥3,540198810-199302

75574AMOULDING, BACK WINDOW, OUTSIDE LH

main75574-22090iGX71,MX75,RX73,YX72¥4,400198812-199205

main75574-23010iRX72¥3,540198810-199302

75575AMOULDING, BACK WINDOW, OUTSIDE LOWER

main75507-22060iGX71,MX75,RX73,YX72¥8,900198812-199205

main75575-23010iRX72¥3,540198810-199302

75581COVER, BACK WINDOW MOULDING JOINT, UPPER

main75581-22050iGX71,MX75,RX73,YX72¥610198812-199205

75813BMOULDING, LUGGAGE COMPARTMENT DOOR

main75813-22090iGX71,MX75,RX73,YX72¥5,100198812-199205

9017905095

main90179-05095¥240

9 parts on this diagram · 2 diagrams in section
