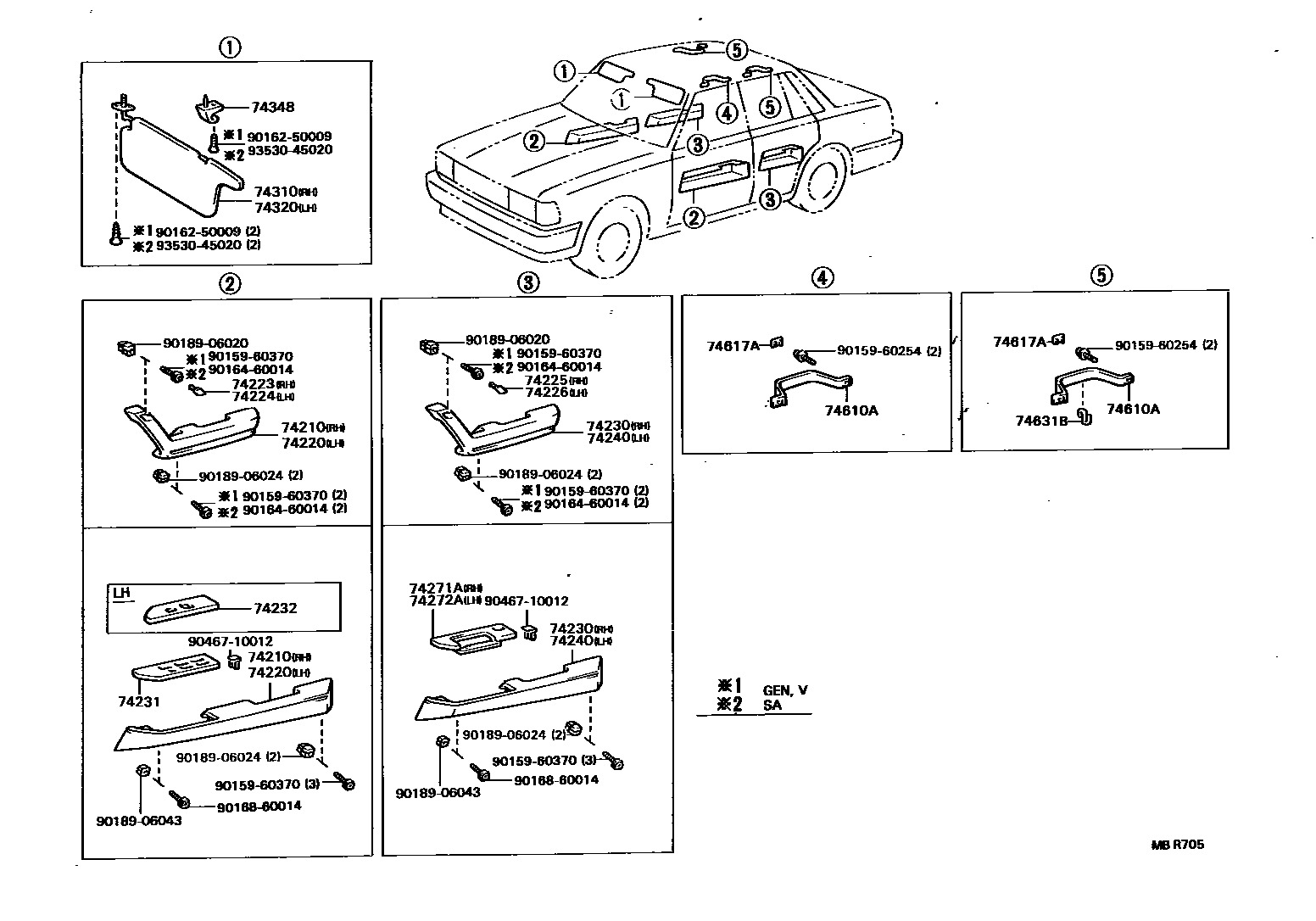

ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-22070-13iRX72..4FC;RX72..XL..(GEN,V)199008-199302

MEDIUM GRAY,TRIM1#

main74210-22070-22iRX72..4FC;RX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

main74210-22070-26iRX72..4FC;RX72..XL..(GEN,V)198810-199302

SABLE,TRIM4#

main74210-22070-34iRX72..4FC;RX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

main74210-22100-06iRX72..5F..GL198810-199302

SABLE,TRIM4#

main74210-22100-12iRX72..5F..GL198810-199302

NEW MAROON,TRIM3#

main74210-22100-13iRX72..5F..GL199008-199302

W(POWER WINDOW),MEDIUM GRAY,TRIM1#

main74210-22100-14iRX72..5F..GL198810-199008

W(POWER WINDOW),BLUE,TRIM8#

main74210-22110-03iGX71,MX75..GLX198812-199009

COOL GRAY,TRIM1#

main74210-22110-06iGX71,MX75..GLX198812-199205

SABLE,TRIM4#

main74210-22110-13iGX71,MX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74220-22060-13iRX72..4FC;RX72..XL..(GEN,V)199008-199302

MEDIUM GRAY,TRIM1#

main74220-22060-22iRX72..4FC;RX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

main74220-22060-26iRX72..4FC;RX72..XL..(GEN,V)198810-199302

SABLE,TRIM4#

main74220-22060-34iRX72..4FC;RX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

main74220-22090-06iRX72..5F..GL198810-199302

W(POWER WINDOW),SABLE,TRIM4#

main74220-22090-12iRX72..5F..GL198810-199302

NEW MAROON,TRIM3#

main74220-22090-13iRX72..5F..GL199008-199302

MEDIUM GRAY,TRIM1#

main74220-22090-14iRX72..5F..GL198810-199008

BLUE,TRIM8#

main74220-22100-03iGX71,MX75..GLX198812-199009

COOL GRAY,TRIM1#

main74220-22100-06iGX71,MX75..GLX198812-199205

SABLE,TRIM4#

main74220-22100-13iGX71,MX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

74223CAP, DOOR ARMREST, RH

main74223-22010-03iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199009

COOL GRAY,TRIM1#

main74223-22010-13iRX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL199009-199302

MEDIUM GRAY,TRIM1#

main74223-22010-22iRX72..4FC;RX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

main74223-22010-26iRX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL198810-199302

SABLE,TRIM4#

main74223-22010-34iRX72..4FC;RX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

74224CAP, DOOR ARMREST, LH

main74224-22010-03iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199009

COOL GRAY,TRIM1#

main74224-22010-13iRX72..4FC;RX72..XL..(GEN,V)199008-199009

MEDIUM GRAY,TRIM1#

main74224-22010-22iRX72..4FC;RX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

main74224-22010-26iRX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL198810-199302

SABLE,TRIM4#

main74224-22010-34iRX72..4FC;RX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

74225CAP, DOOR ARMREST, REAR RH

main74223-22010-03iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199009

COOL GRAY,TRIM1#

main74223-22010-13iRX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL199009-199302

MEDIUM GRAY,TRIM1#

main74223-22010-22iRX72..4FC;RX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

main74223-22010-26iRX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL198810-199302

SABLE,TRIM4#

main74223-22010-34iRX72..4FC;RX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

74226CAP, DOOR ARMREST, REAR LH

main74224-22010-03iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199009

COOL GRAY,TRIM1#

main74224-22010-13iRX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL199009-199302

MEDIUM GRAY,TRIM1#

main74224-22010-22iRX72..4FC;RX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

main74224-22010-26iRX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL198810-199302

SABLE,TRIM4#

main74224-22010-34iRX72..4FC;RX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

74230ARMREST ASSY, REAR, RH

main74210-22070-13iRX72..4FC;RX72..XL..(GEN,V)199008-199302

MEDIUM GRAY,TRIM1#

main74210-22070-22iRX72..4FC;RX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

main74210-22070-26iRX72..4FC;RX72..XL..(GEN,V)198810-199302

SABLE,TRIM4#

main74210-22070-34iRX72..4FC;RX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

main74250-22040-06iRX72..5F..GL198810-199302

SABLE,TRIM4#

main74250-22040-12iRX72..5F..GL198810-199302

W(POWER WINDOW),NEW MAROON,TRIM3#

main74250-22040-13iRX72..5F..GL199008-199302

W(POWER WINDOW),MEDIUM GRAY,TRIM1#

main74250-22040-14iRX72..5F..GL198810-199008

BLUE,TRIM8#

main74250-22050-03iGX71,MX75..GLX198812-199009

COOL GRAY,TRIM1#

main74250-22050-06iGX71,MX75..GLX198812-199205

SABLE,TRIM4#

main74250-22050-13iGX71,MX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-91602iRX72..GL198810-199302

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-91602iRX72..GL198810-199302

74240ARMREST ASSY, REAR, LH

main74220-22060-13iRX72..4FC;RX72..XL..(GEN,V)199008-199302

MEDIUM GRAY,TRIM1#

main74220-22060-22iRX72..4FC;RX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

main74220-22060-26iRX72..4FC;RX72..XL..(GEN,V)198810-199302

SABLE,TRIM4#

main74220-22060-34iRX72..4FC;RX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

main74260-22030-06iRX72..5F..GL198810-199302

W(POWER WINDOW),SABLE,TRIM4#

main74260-22030-12iRX72..5F..GL198810-199302

NEW MAROON,TRIM3#

main74260-22030-13iRX72..5F..GL199008-199302

W(POWER WINDOW),MEDIUM GRAY,TRIM1#

main74260-22030-14iRX72..5F..GL198810-199008

BLUE,TRIM8#

main74260-22040-03iGX71,MX75..GLX198812-199009

COOL GRAY,TRIM1#

main74260-22040-06iGX71,MX75..GLX198812-199205

SABLE,TRIM4#

main74260-22040-13iGX71,MX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-91601iRX72..GL198810-199302

sub74271-22040

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-91601iRX72..GL198810-199302

sub74272-22040

74310VISOR ASSY, RH

main74310-91608-02iRX72..GL199008-199302

NEW MAROON,TRIM3#

main74310-91608-03iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main74310-91608-04iRX72..GL198810-199008

LIGHT BLUE,TRIM8#

main74310-91608-06iRX72..GL198810-199008

LIGHT SABLE,TRIM3#,4#

main74310-91608-16iRX72..GL199008-199302

SABLE,TRIM4#

main74310-91609-02iRX72..LHD..XL199008-199302

NEW MAROON,TRIM3#

main74310-91609-03iRX72..LHD..XL199008-199302

MEDIUM GRAY,TRIM1#

main74310-91609-04iRX72..LHD..XL198810-199008

LIGHT BLUE,TRIM8#

main74310-91609-06iRX72..LHD..XL199008-199302

LIGHT SABLE,TRIM4#

main74310-91610-02iRX72..RHD..GEN199008-199302

NEW MAROON,TRIM3#

main74310-91610-03iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

main74310-91610-04iRX72..RHD..GEN198810-199008

LIGHT BLUE,TRIM8#

main74310-91610-06iRX72..RHD..GEN199008-199302

LIGHT SABLE,TRIM4#

74320VISOR ASSY, LH

main74320-91607-02iRX72..GL199008-199302

NEW MAROON,TRIM3#

main74320-91607-03iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main74320-91607-04iRX72..GL198810-199008

LIGHT BLUE,TRIM8#

main74320-91607-06iRX72..GL198810-199008

LIGHT SABLE,TRIM3#,4#

main74320-91607-16iRX72..GL199008-199302

SABLE,TRIM4#

main74320-91609-02iRX72..LHD..GEN199008-199302

NEW MAROON,TRIM1#

main74320-91609-03iRX72..LHD..XL199008-199302

MEDIUM GRAY,TRIM1#

main74320-91609-04iRX72..LHD..XL198810-199008

LIGHT BLUE,TRIM8#

main74320-91609-06iRX72..LHD..GEN199008-199302

LIGHT SABLE,TRIM4#

main74320-91610-02iRX72..RHD..GEN199008-199302

NEW MAROON,TRIM3#

main74320-91610-03iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

main74320-91610-04iRX72..RHD..GEN198810-199008

LIGHT BLUE,TRIM8#

main74320-91610-06iRX72..RHD..GEN198810-199008

LIGHT SABLE,TRIM3#,4#

74348HOLDER, VISOR

main74348-12020-13×2iGX71,MX75,RX7#,YX72..SA199009-199106

MEDIUM GRAY,TRIM1#

sub74348-60010

sub74348-26020

main74348-12020-23×2iRX72..GEN,V199008-199302

LIGHT GRAY,TRIM1#

sub74348-60010

sub74348-26020

main74348-12020-26×2iGX71,MX75,RX7#,YX72..SA198810-199008

LIGHT SABLE,TRIM3#,4#

sub74348-60010

sub74348-26020

main74348-12020-33×2iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub74348-60010

sub74348-26020

main74348-12020-34×2iRX72..GEN,V198810-199008

LIGHT BLUE,TRIM8#

sub74348-60010

sub74348-26020

main74348-12020-52×2iRX72..GEN,V199008-199302

NEW MAROON,TRIM3#

sub74348-60010

sub74348-26020

74610AGRIP SUB-ASSY, ASSIST

main74610-32010-12×3iRX72..GEN,V199008-199302

NEW MAROON,TRIM3#

sub74610-20040

main74610-32010-13×3iRX72..GEN,V199008-199302

GRAY,TRIM1#

sub74610-20040

main74610-32010-26×3iGX71,MX75,RX7#,YX72199008-199302

LIGHT SABLE,TRIM4#

sub74610-20040

main74610-32010-33×3iGX71,MX75,RX7#,YX72..SA198812-199009

GRAY,TRIM1#

sub74610-20040

main74610-32010-34×3iRX72..GEN,V198810-199008

LIGHT BLUE,TRIM8#

sub74610-20040

main74610-32010-53×3iGX71,MX75,RX7#,YX72..SA199009-199205

LIGHT GRAY,TRIM1#

sub74610-20040

74617APLUG, ASSIST GRIP

main74617-16010-10×6iGX71,MX75,RX7#,YX72..SA199009-199205

MEDIUM GRAY,TRIM1#

main74617-16010-13×6iGX71,MX75,RX7#,YX72..SA198812-199009

GRAY,TRIM1#

main74617-16010-39×6iRX72..GEN,V199008-199302

NEW MAROON,TRIM3#

main74617-16010-47×6iRX72..GEN,V199008-199302

LIGHT GRAY,TRIM1#

main74617-16010-54×6iRX72..GEN,V198810-199008

LIGHT BLUE,TRIM8#

main74617-16010-56×6iGX71,MX75,RX7#,YX72..SA198810-199008

LIGHT SABLE,TRIM4#

74631BHOOK, COAT

main74631-14010-23×2iRX72..GEN,V199008-199302

GRAY,TRIM1#

sub74631-20040

main74631-14010-36×2iGX71,MX75,RX7#,YX72..SA198810-199008

SABLE,TRIM4#

sub74631-20040

main74631-14010-53×2iGX71,MX75,RX7#,YX72..SA198812-199009

GRAY,TRIM1#

sub74631-20040

main74631-14010-54×2iRX72..GEN,V198810-199008

LIGHT BLUE,TRIM8#

sub74631-20040

main74631-14010-59×2iRX72..GEN,V199008-199302

NEW MAROON,TRIM3#

sub74631-20040

9015960254

main90159-60254

9015960370

main90159-60370

9016250009

main90162-50009

9016460014

main90164-60014

9016860014

main90168-60014

9018906020

main90189-06020

9018906024

main90189-06024

9018906043

main90189-06043

9046710012

main90467-10012

9353045020

main93530-45020

28 parts on this diagram · 1 diagram in section
