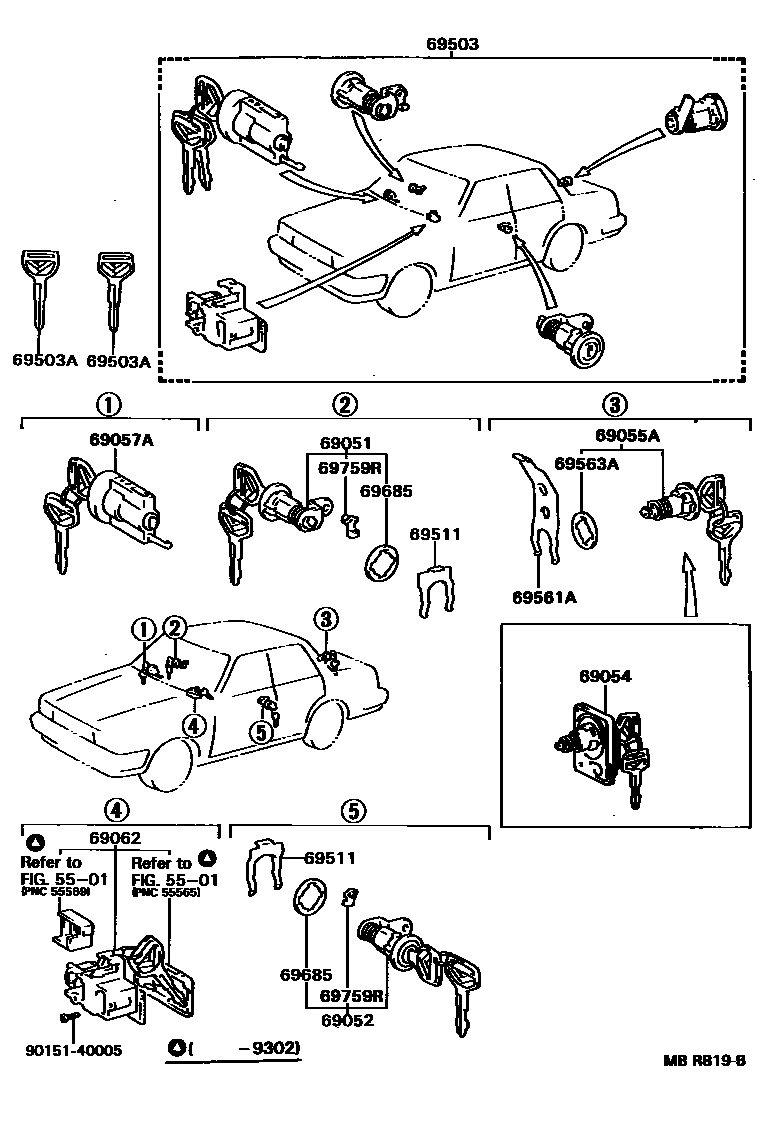

LOCK CYLINDER SET

0001 1 0002 1

5501

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-22181iGX71,MX75..GLX198812-199205

main69051-22250iRX72..SA198812-199205

main69051-22260iMX75,RX73,YX72..GL,STD,XL198812-199205

main69051-23051iRX72..RHD..GEN198810-199302

main69051-23080iRX72..LHD198810-199302

sub69051-23051

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-22191iGX71,MX75..GLX198812-199205

main69052-22250iRX72..SA198812-199205

main69052-22260iMX75,RX73,YX72..GL,STD,XL198812-199205

main69052-23051iRX72..RHD..GEN198810-199302

main69052-23080iRX72..LHD198810-199302

sub69052-23051

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-22320iMX75,RX73,YX72..GL,STD,XL198812-199205

main69055-22330iRX72..SA198812-199205

main69055-23021iRX72..RHD..GEN198810-199302

main69055-23070iRX72..LHD198810-199302

sub69055-23021

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-22191iGX71,MX75..GLX198812-199205

sub69055-22152

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-22160iRX72..SA198812-199205

main69057-22170iGX71,MX75..GLX198812-199205

sub69057-32121

main69057-22180iMX75,RX73,YX72..GL,STD,XL198812-199205

sub69057-32121

main69057-23021iRX72..RHD..GEN198810-199302

sub69057-91607

main69057-23051iRX72..LHD198810-199302

sub69057-23031

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-22120iRX72..SA198812-199205

main69056-22130iGX71,MX75,RX73,YX72198812-199205

main69056-23011-03iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

sub69056-23011

sub69056-22130

sub55565-22010

sub55569-22020

main69056-23011-06iRX72..RHD..GEN198810-199302

SABLE,TRIM4#

sub69056-23011

sub69056-22130

sub55565-22010

sub55569-22020

main69056-23011-12iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

sub69056-23011

sub69056-22130

sub55565-22010

sub55569-22020

main69056-23011-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub69056-23011

sub69056-22130

sub55565-22010

sub55569-22020

main69056-23050-02iRX72..LHD198810-199302

NEW MAROON,TRIM3#

sub69056-23011

main69056-23050-03iRX72..LHD199008-199302

M.GRAY,TRIM1#

sub69056-23011

main69056-23050-04iRX72..LHD198810-199008

BLUE,TRIM8#

sub69056-23011

main69056-23050-06iRX72..LHD198810-199302

SABLE,TRIM4#

sub69056-23011

69503CYLINDER SET, LOCK

main69005-22533iMX75,RX73,YX72..GL,STD,XL198812-199205

main69005-22641iGX71,MX75..GLX198812-199205

main69005-22830iRX72..SA198812-199205

main69005-23081iRX72..RHD..GEN198810-199005

sub69005-91642

main69005-23101iRX72..LHD198810-199005

main69005-91645iRX72..RHD..GEN199005-199302

main69005-91646iRX72..LHD199005-199302

69503AKEY, BLANK

main90999-00099iGX71,MX75,RX73,YX72198812-199205

MASTER KEY

main90999-00100iGX71,MX75,RX73,YX72198812-199205

SUB KEY

main90999-00107iRX72198810-199302

MASTER KEY

main90999-00108iRX72198810-199302

SUB KEY

main90999-00109iRX72..LHD198810-199302

MASTER KEY,W(*68)

sub90999-00123

main90999-00118iGX71,MX75,RX73,YX72198812-199205

MASTER KEY,W(*68)

main90999-00123iRX72..RHD198810-199302

MASTER KEY,W(*68)

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iGX71,MX75,RX7#,YX72198810-199302

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-22050iGX71,MX75,RX73,YX72198812-199205

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-32010iGX71,MX75,RX73,YX72198812-199205

69685PAD, LOCK CYLINDER

main69513-32010iGX71,MX75,RX73,YX72198812-199205

main69513-87001iRX72198810-199302

sub69513-32010

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-20080iGX71,MX75,RX7#,YX72198810-199302

ORANGE

main69759-20080iRX72..GEN,V199008-199302

RH

main69759-20090iGX71,MX75,RX7#,YX72..SA198810-199302

PINK

main69759-20090iRX72..GEN,V199008-199302

LH

9015140005

main90151-40005

15 parts on this diagram · 2 diagrams in section
