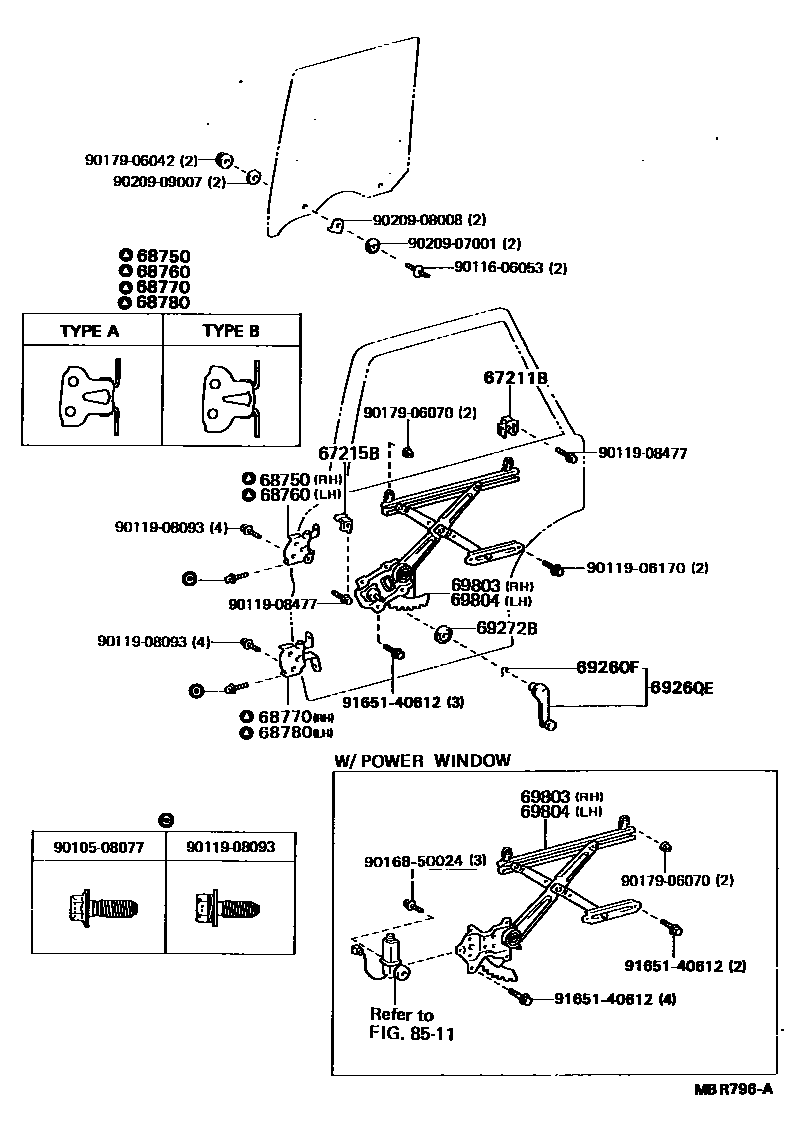

REAR DOOR WINDOW REGULATOR & HINGE

67211BSTOP, REAR DOOR WINDOW, UPPER

main67211-22010iGX71,MX75,RX7#,YX72..SA198810-199302

67215BSTOP, REAR DOOR WINDOW, UPPER

main67215-22020iGX71,MX75,RX7#,YX72198810-199302

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20050iGX71,MX75,RX7#,YX72..SA199008-199302

TYPE A

main68750-20050iGX71,MX75,RX7#,YX72198810-199008

main68750-32010iRX72..GEN,V199008-199302

TYPE B

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20040iGX71,MX75,RX7#,YX72..SA199008-199302

TYPE A

main68760-20040iGX71,MX75,RX7#,YX72198810-199008

main68760-32010iRX72..GEN,V199008-199302

TYPE B

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-20040iGX71,MX75,RX7#,YX72198810-199008

main68770-20040iRX72..GEN,V199008-199302

TYPE A

main68770-32010iRX72..GEN,V199008-199302

TYPE B

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-20040iGX71,MX75,RX7#,YX72198810-199008

main68780-20040iRX72..GEN,V199008-199302

TYPE A

main68780-32010iRX72..GEN,V199008-199302

TYPE B

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-14030-43iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199009

COOL GRAY,TRIM1#

sub69260-14030

main69260-14030-50iMX75,RX7#,YX72..(GL,STD,XL)..SA199009-199205

MEDIUM GRAY,TRIM1#

sub69260-14030

main69260-14030-58iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199205

SABLE,TRIM4#

sub69260-14030

main69260-22030-16iRX72..4FC;RX72..XL..(GEN,V)198810-199302

SABLE,TRIM4#

sub69260-22030

main69260-22030-23iRX72..4FC;RX72..XL..(GEN,V)199008-199302

MEDIUM GRAY,TRIM1#

sub69260-22030

main69260-22030-24iRX72..4FC;RX72..XL..(GEN,V)198810-199008

DARK BLUE,TRIM8#

sub69260-22030

main69260-22030-32iRX72..4FC;RX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

sub69260-22030

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274iRX72..4FC198810-199302

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iRX72..4FC;RX72..XL..(GEN,V)198810-199008

NATURAL WHITE,TRIM3#,4#,8#

sub69285-22010

main69285-22010-08iMX75,RX7#,YX72..(GL,STD,XL)..SA198810-199302

NATURAL WHITE,TRIM1#,4#

sub69285-22010

main69285-22010-08iRX72..4FC;RX72..XL..(GEN,V)199008-199302

NATURAL WHITE,TRIM1#,3#,4#

sub69285-22010

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-22080iRX72..5F..GL;GX71,MX75..GLX198810-199302

W(POWER WINDOW)

main69830-22120iRX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL198810-199302

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-22080iRX72..5F..GL;GX71,MX75..GLX198810-199302

W(POWER WINDOW)

main69840-22120iRX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL198810-199302

8511

9010508077

main90105-08077

9011606053

main90116-06053

9011906170

main90119-06170

9011908093

main90119-08093

9011908477

main90119-08477

9016850024

main90168-50024

9017906042

main90179-06042

9017906070

main90179-06070

9020907001

main90209-07001

9020908008

main90209-08008

9020909007

main90209-09007

9165140612

main91651-40612

24 parts on this diagram · 1 diagram in section
