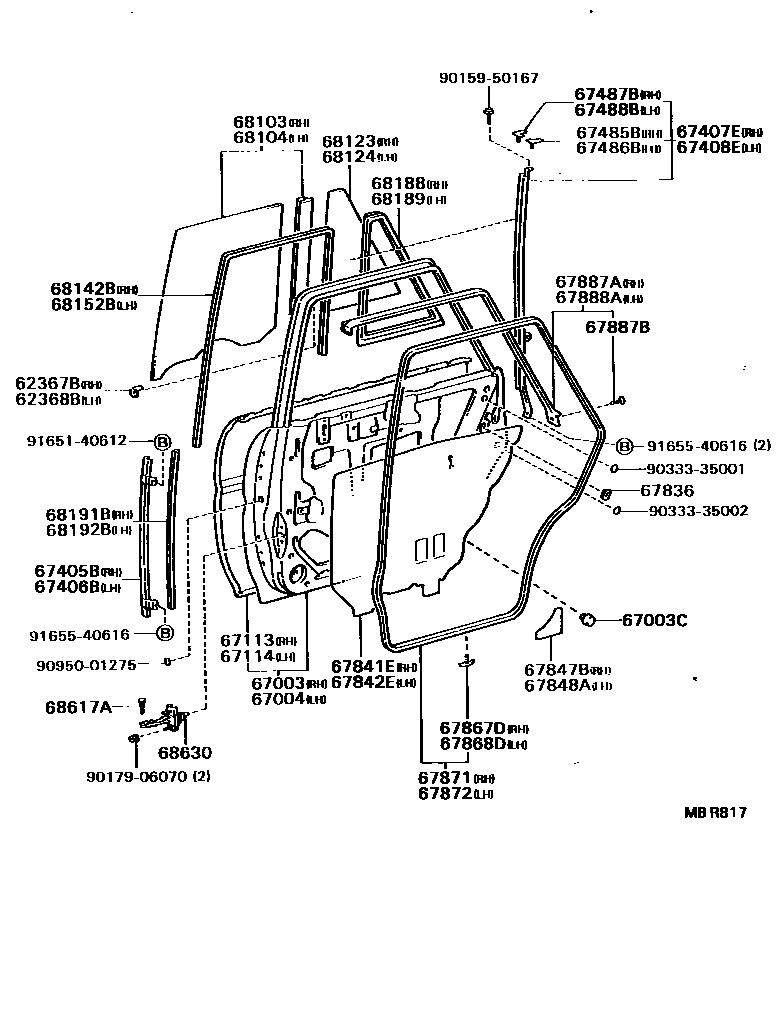

REAR DOOR PANEL & GLASS

0001 1 0002 1

62367BCLIP, DOOR WINDOW GLASS, REAR RH

main62367-22030iGX71,MX75,RX7#..(GLX,XL)..SA¥740198812-199205

main62367-22040iRX72..GEN,V;MX75,YX72..5F¥810198810-199302

62368BCLIP, DOOR WINDOW GLASS, REAR LH

main62368-22040iGX71,MX75,RX7#..(GLX,XL)..SA¥740198812-199205

main62368-22050iRX72..GEN,V;MX75,YX72..5F¥810198810-199302

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-23020iRX72..GEN,SA¥56,100198810-199302

sub67003-23050¥56,100

sub90950-01573¥200

main67003-23030iRX72..V¥56,200198810-199302

67003CCUSHION, REAR DOOR PANEL

main90541-09006iGX71,MX75,RX7#,YX72¥190198810-199302

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-23020iRX72..GEN,SA¥56,100198810-199302

sub67004-23050¥56,100

sub90950-01573¥200

main67004-23030iRX72..V¥56,200198810-199302

67113PANEL, REAR DOOR, OUTER RH

main67113-22110iRX72¥23,000198810-199302

67114PANEL, REAR DOOR, OUTER LH

main67114-22110iRX72¥23,000198810-199302

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-22060iGX71,MX75,RX7#,YX72¥1,810198810-199302

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-22060iGX71,MX75,RX7#,YX72¥1,810198810-199302

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-22050iGX71,MX75,RX73,YX72¥5,100198812-199205

main67407-23010iRX72¥5,100198810-199302

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-22050iGX71,MX75,RX73,YX72¥5,100198812-199205

main67408-23010iRX72¥5,100198810-199302

67485BSEAL, REAR DOOR DIVISION BAR, INSIDE, RH

main67485-22010iGX71,MX75,RX7#,YX72¥300198810-199302

67486BSEAL, REAR DOOR DIVISION BAR, INSIDE, LH

main67486-22010iGX71,MX75,RX7#,YX72¥300198810-199302

67487BSEAL, REAR DOOR DIVISION BAR, RH

main67487-22030iGX71,MX75,RX7#,YX72¥300198810-199302

67488BSEAL, REAR DOOR DIVISION BAR, LH

main67488-22030iGX71,MX75,RX7#,YX72¥300198810-199302

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010iRX72..V¥250198810-199302

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-22110iRX72..GEN,V¥740198810-199302

sub67841-22150¥720

main67841-22150iRX72..5F..(GEN,V)¥720198810-199008

DUST PROTECTING OR W(POWER WINDOW)

main67841-22150iRX72..5F..(GEN,V)¥720198810-199302

DUST PROTECTING

main67841-22150iGX71,MX75,RX7#,YX72..SA¥720198812-199205

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-22150iRX72..GEN,V¥720199008-199302

DUST PROTECTING

main67842-22020iRX72..GEN,V¥740198810-199302

sub67841-22150¥720

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-22020iRX72..5F..(GEN,V)¥1,160198810-199302

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-22020iRX72..GEN,V¥1,160198810-199302

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-22020iRX72¥170198810-199205

main67868-12050iRX72¥210199104-199302

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-12050iRX72¥210199104-199302

main67868-22010iGX71,MX75,RX73,YX72¥170198810-199205

67871WEATHERSTRIP, REAR DOOR, RH

main67871-22100iGX71,MX75,RX73,YX72¥6,600198812-199205

main67871-23010iRX72¥5,900198810-199302

67872WEATHERSTRIP, REAR DOOR, LH

main67872-22100iGX71,MX75,RX73,YX72¥6,600198812-199205

main67872-23010iRX72¥5,900198810-199302

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-22010iGX71,MX75,RX73,YX72¥3,810198812-199205

main67887-23010iRX72¥3,920198810-199302

67887BCLIP(FOR REAR DOOR WEATHERSTRIP)

main67869-30020iGX71,MX75,RX7#,YX72¥220198810-199302

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-22010iGX71,MX75,RX73,YX72¥3,810198812-199205

main67888-23010iRX72¥3,920198810-199302

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-23010iRX72..GEN,V¥22,500198810-199302

*TT,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-23010iRX72..GEN,V¥22,500198810-199302

*TT,T=3.5

68123GLASS, REAR DOOR WINDOW, RH

main68123-23010iRX72..GEN,V¥4,180198810-199302

*TT,T=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-23010iRX72..GEN,V¥4,180198810-199302

*TT,T=3.5

68142BRUN, REAR DOOR WINDOW, RH

main68142-22050iGX71,MX75,RX7#,YX72¥3,930198810-199302

68152BRUN, REAR DOOR WINDOW, LH

main68152-22010iGX71,MX75,RX7#,YX72¥3,930198810-199302

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-22060iGX71,MX75,RX73,YX72¥5,800198812-199205

main68188-23010iRX72¥5,800198810-199302

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-22050iGX71,MX75,RX73,YX72¥5,800198812-199205

main68189-23010iRX72¥5,800198810-199302

68191BRUN, REAR DOOR GLASS, NO.2 RH

main68191-22010iGX71,MX75,RX7#,YX72¥1,700198810-199302

68192BRUN, REAR DOOR GLASS, NO.2 LH

main68192-22010iGX71,MX75,RX7#,YX72¥1,700198810-199302

68617APIN, REAR DOOR CHECK

main68617-22020iGX71,MX75,RX7#,YX72¥300198810-199302

68630CHECK ASSY, REAR DOOR

main68630-22040iGX71,MX75,RX7#,YX72¥3,730198810-199302

9015950167

main90159-50167¥120

9017906070

main90179-06070¥180

9033335001

main90333-35001¥140

9033335002

main90333-35002¥80

9095001275

main90950-01275¥270

9165140612

main91651-40612¥70

9165540616

main91655-40616¥120

46 parts on this diagram · 2 diagrams in section
