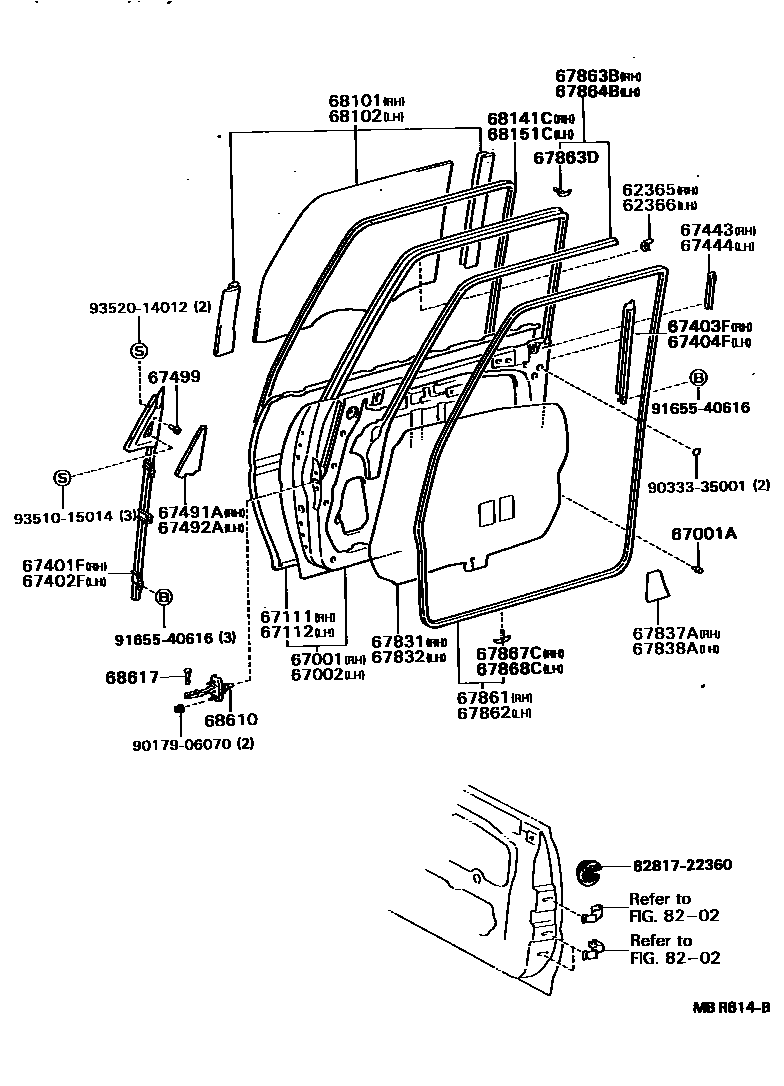

FRONT DOOR PANEL & GLASS

0001 1 0002 1

62365CLIP, DOOR WINDOW GLASS, FRONT RH

main62369-22020iGX71,MX75,RX7#..(GLX,XL)..SA198812-199205

main62369-22030iRX72..GEN,V;MX75,YX72..5F198810-199302

62366CLIP, DOOR WINDOW GLASS, FRONT LH

main62369-22020iGX71,MX75,RX7#..(GLX,XL)..SA198812-199205

main62369-22030iRX72..GEN,V;MX75,YX72..5F198810-199302

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-22220iRX72..V198810-199302

main67001-22230iMX75,RX7#,YX72..(GL,STD,XL)..(GEN,SA)198810-199302

67001ACUSHION, FRONT DOOR PANEL

main90541-09006×2iGX71,MX75,RX7#,YX72198810-199302

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-22220iRX72..V198810-199302

main67002-22230iMX75,RX7#,YX72..(GL,STD,XL)..(GEN,SA)198810-199302

67111PANEL, FRONT DOOR, OUTER RH

main67111-22130iMX75,RX7#,YX72..GL,STD,XL198810-199302

67112PANEL, FRONT DOOR, OUTER LH

main67112-22140iMX75,RX7#,YX72..GL,STD,XL198810-199302

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-22080iGX71,MX75,RX7#,YX72198810-199302

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-22080iGX71,MX75,RX7#,YX72198810-199302

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-22050iGX71,MX75,RX7#,YX72198810-199302

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-22050iGX71,MX75,RX7#,YX72198810-199302

67443PROTECTOR, FRONT DOOR LOCKING ROD, RH

main67443-22010iGX71,MX75,RX7#,YX72198810-199302

67444PROTECTOR, FRONT DOOR LOCKING ROD, LH

main67444-22010iGX71,MX75,RX7#,YX72198810-199302

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-22040iGX71,MX75,RX7#,YX72198810-199302

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-22040iGX71,MX75,RX7#,YX72198810-199302

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010×2iGX71,MX75,RX7#,YX72198810-199302

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-22100iRX72..GEN,V198810-199302

main67831-22130×2iRX72..5F..(GEN,V)198810-199008

DUST PROTECTING OR W(*PW)

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-22010iRX72..GEN,V198810-199302

67837ASEAL, FRONT DOOR VENT, RH

main67837-22020iRX72..5F..(GEN,V)198810-199008

67838ASEAL, FRONT DOOR VENT, LH

main67838-22020iRX72..5F..(GEN,V)198810-199008

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-22140iGX71,MX75,RX7#,YX72198810-199302

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-22140iGX71,MX75,RX7#,YX72198810-199302

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-22010iGX71,MX75,RX7#,YX72198810-199302

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67868-30040×4iGX71,MX75,RX7#,YX72198810-199302

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-22010iGX71,MX75,RX7#,YX72198810-199302

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-22020×19iGX71,MX75,RX7#,YX72198810-199302

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-22010×19iGX71,MX75,RX7#,YX72198810-199302

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-22090iGX71,MX75,RX7#,YX72198810-199302

*TT,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-22090iGX71,MX75,RX7#,YX72198810-199302

*TT,T=4.0

68141CRUN, FRONT DOOR GLASS, RH

main68141-22070iGX71,MX75,RX7#,YX72198810-199302

68151CRUN, FRONT DOOR GLASS, LH

main68151-22020iGX71,MX75,RX7#,YX72198810-199302

68610CHECK ASSY, FRONT DOOR

main68610-22030×2iGX71,MX75,RX7#,YX72198810-199302

68617PIN, FRONT DOOR CHECK

main68617-22020×2iGX71,MX75,RX7#,YX72198810-199302

8202

8281722360PROTECTOR, WIRING HARNESS, NO.1

main82817-22360

9017906070

main90179-06070

9033335001

main90333-35001

9165540616

main91655-40616

9351015014

main93510-15014

9352014012

main93520-14012

40 parts on this diagram · 2 diagrams in section
