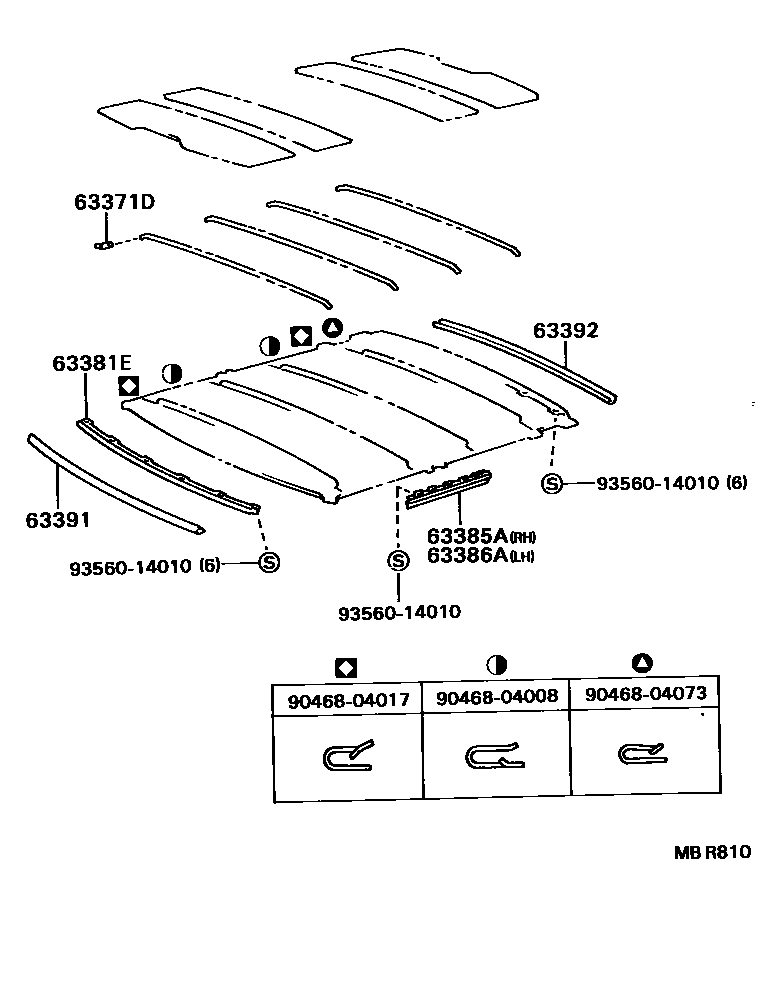

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63371DRETAINER, ROOF HEADLINING SUPPORT

main63371-22020iRX72198810-199302

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-22050iGX71,MX75,RX7#,YX72198810-199302

63385ARETAINER, ROOF HEADLINING TRIM SIDE, RH

main63385-22020iGX71,MX75,RX73,YX72198812-199205

63386ARETAINER, ROOF HEADLINING TRIM SIDE, LH

main63386-22020iGX71,MX75,RX73,YX72198812-199205

63391TRIM, ROOF HEADLINING, FRONT

main63391-22060-03iMX75..GL;GX71,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub63391-22060

main63391-22060-06iMX75..GL;RX72..GEN,V;GX71,RX73,YX72198812-199302

SABLE,TRIM4#

sub63391-22060

main63391-22060-12iRX72..GEN,V198810-199203

NEW MAROON,TRIM3#

sub63391-22060

main63391-22060-13iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub63391-22060

main63391-22060-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub63391-22060

main63391-22070-03iMX75..GLX198812-199009

COOL GRAY,TRIM1#

sub63391-22070

main63391-22070-06iMX75..GLX198812-199205

SABLE,TRIM4#

sub63391-22070

main63391-22070-23iMX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

sub63391-22070

63392TRIM, ROOF HEADLINING, REAR

main63392-22050-03iMX75..GL;GX71,RX73,YX72198812-199009

COOL GRAY,TRIM1#

sub63392-22050

main63392-22050-06iMX75..GL;GX71,RX73,YX72198812-199205

SABLE,TRIM4#

sub63392-22050

main63392-22050-13iMX75..GL;GX71,RX73,YX72199009-199205

MEDIUM GRAY,TRIM1#

sub63392-22050

main63392-22060-03iMX75..GLX198812-199009

COOL GRAY,TRIM1#

sub63392-22060

main63392-22060-06iMX75..GLX198812-199205

SABLE,TRIM4#

sub63392-22060

main63392-22060-23iMX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

sub63392-22060

9046804008

main90468-04008

9046804017

main90468-04017

9046804073

main90468-04073

9356014010

main93560-14010

10 parts on this diagram · 2 diagrams in section
