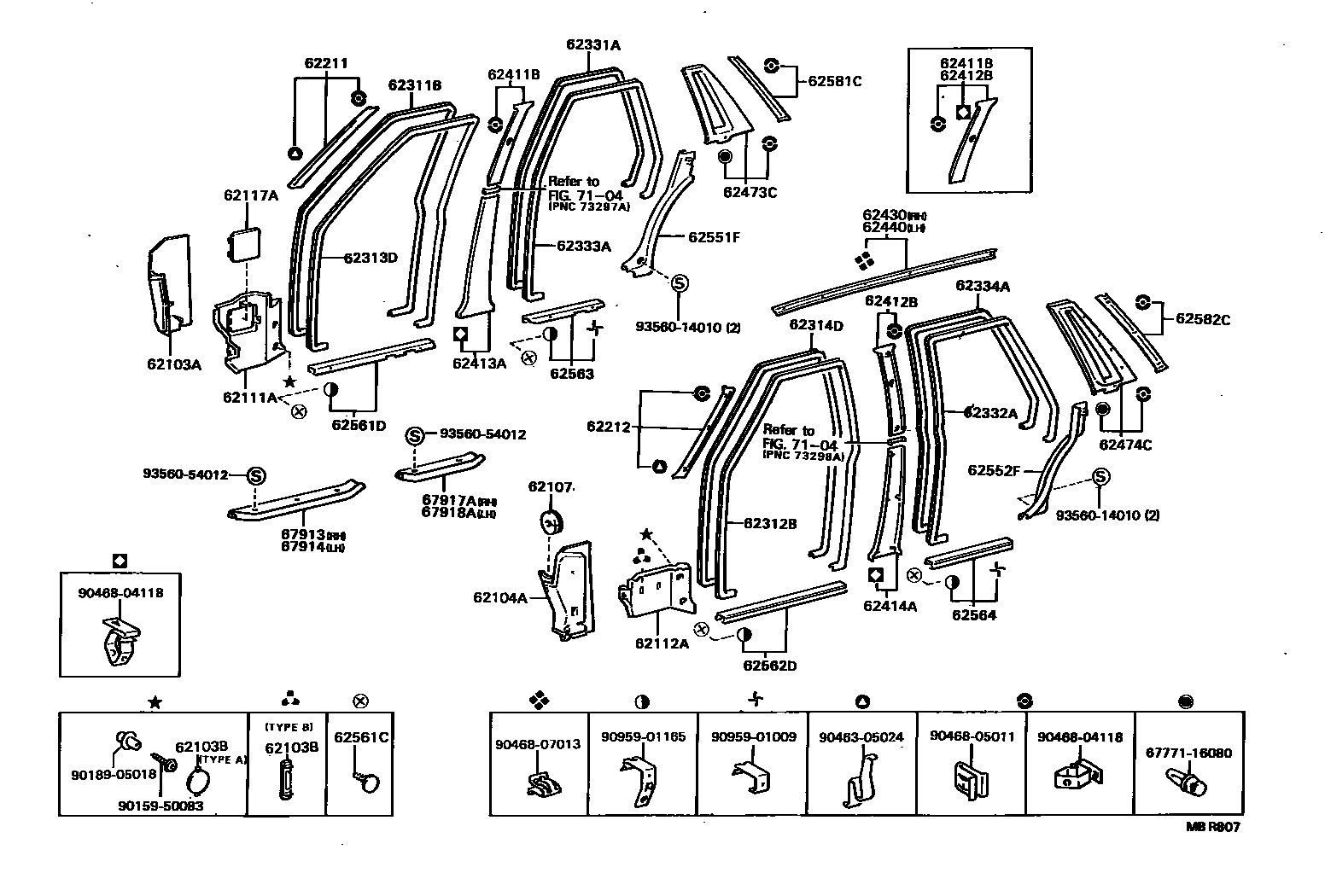

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-22010iGX71,MX75,RX7#,YX72..RHD¥2,050198810-199302

main62105-22020iRX72..LHD¥1,960198810-199302

62103BPLUG(FOR COWL SIDE TRIM BOARD)

main90950-01267-03iGX71,MX75,RX7#,YX72..SA198812-199009

GRAY,TRIM1#,TYPE B

sub90950-01267¥330

main90950-01267-36iGX71,MX75,RX7#,YX72..RHD198810-199302

SABLE,TRIM4#,TYPE B

sub90950-01267¥330

main90950-01267-42iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#,TYPE B

sub90950-01267¥330

main90950-01267-43iGX71,MX75,RX7#,YX72..RHD199008-199302

MEDIUM GRAY,TRIM1#,TYPE B

sub90950-01267¥330

main90950-01267-54iRX72..RHD..GEN198810-199008

BLUE,TRIM8#,TYPE B

sub90950-01267¥330

main90950-01427-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#,TYPE A

sub90950-01427¥390

main90950-01427-06iRX72..LHD..XL198810-199302

SABLE,TRIM4#

sub90950-01427¥390

main90950-01427-06iGX71,MX75,RX7#,YX72..RHD198810-199302

SABLE,TRIM4#,TYPE A

sub90950-01427¥390

main90950-01427-12iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#,TYPE A

sub90950-01427¥390

main90950-01427-12iRX72..LHD..XL198810-199302

NEW MAROON,TRIM3#

sub90950-01427¥390

main90950-01427-13iGX71,MX75,RX7#,YX72..RHD199008-199302

MEDIUM GRAY,TRIM1#,TYPE A

sub90950-01427¥390

main90950-01427-13iRX72..LHD..XL199008-199302

MEDIUM GRAY,TRIM1#

sub90950-01427¥390

main90950-01427-14iRX72..LHD..XL198810-199008

BLUE,TRIM8#

sub90950-01427¥390

main90950-01427-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#,TYPE A

sub90950-01427¥390

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-22010iGX71,MX75,RX7#,YX72..RHD¥1,960198810-199302

main62106-22020iRX72..LHD¥2,050198810-199302

62107INSULATOR SUB-ASSY, COWL SIDE, UPPER RH

main62107-22010iGX71,MX75,RX7#,YX72¥1,160198810-199302

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-22140-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub62101-22140¥3,590

main62101-22140-06iGX71,MX75,RX7#,YX72..RHD198810-199302

SABLE,TRIM4#

sub62101-22140¥3,590

main62101-22140-12iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

sub62101-22140¥3,590

main62101-22140-13iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

sub62101-22140¥3,590

main62101-22140-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub62101-22140¥3,590

main62101-22151-06iRX72..LHD..XL198810-199302

SABLE,TRIM4#

sub62101-22151¥2,690

main62101-22151-12iRX72..LHD..XL198810-199302

NEW MAROON,TRIM3#

sub62101-22151¥2,690

main62101-22151-13iRX72..LHD..XL199008-199302

MEDIUM GRAY,TRIM1#

sub62101-22151¥2,690

main62101-22151-14iRX72..LHD..XL198810-199008

BLUE,TRIM8#

sub62101-22151¥2,690

main62101-22172-06iRX72..GL198810-198902

BROWN,TRIM4#

sub62101-22172¥11,200

sub62101-91601¥2,640

main62101-22172-12iRX72..GL198810-198902

NEW MAROON,TRIM3#

sub62101-22172¥11,200

sub62101-91601¥2,640

main62101-22172-14iRX72..GL198810-198902

BLUE,TRIM8#

sub62101-22172¥11,200

sub62101-91601¥2,640

main62101-91601-02iRX72..GL198902-199302

NEW MAROON,TRIM3#

main62101-91601-03iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main62101-91601-04iRX72..GL198902-199008

BLUE,TRIM8#

main62101-91601-06iRX72..GL198902-199302

SABLE,TRIM4#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-22170-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub62102-22170¥2,700

main62102-22170-06iGX71,MX75,RX7#,YX72..RHD198810-199302

SABLE,TRIM4#

sub62102-22170¥2,700

main62102-22170-12iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

sub62102-22170¥2,700

main62102-22170-13iGX71,MX75,RX7#,YX72..RHD199008-199302

MEDIUM GRAY,TRIM1#

sub62102-22170¥2,700

main62102-22170-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub62102-22170¥2,700

main62102-22180-06iRX72..LHD..XL198810-199302

SABLE,TRIM4#

sub62102-22180¥3,580

main62102-22180-12iRX72..LHD..XL198810-199302

NEW MAROON,TRIM3#

sub62102-22180¥3,580

main62102-22180-13iRX72..LHD..XL199008-199302

MEDIUM GRAY,TRIM1#

sub62102-22180¥3,580

main62102-22180-14iRX72..LHD..XL198810-199008

BLUE,TRIM8#

sub62102-22180¥3,580

main62102-22201-06iRX72..GL198810-198902

BROWN,TRIM4#

sub62102-22201¥3,610

sub62102-91601¥2,560

main62102-22201-12iRX72..GL198810-198902

NEW MAROON,TRIM3#

sub62102-22201¥3,610

sub62102-91601¥2,560

main62102-22201-14iRX72..GL198810-198902

BLUE,TRIM8#

sub62102-22201¥3,610

sub62102-91601¥2,560

main62102-91601-02iRX72..GL198902-199302

NEW MAROON,TRIM3#

main62102-91601-03iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main62102-91601-04iRX72..GL198902-199008

BLUE,TRIM8#

main62102-91601-06iRX72..GL198902-199302

SABLE,TRIM4#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-22031-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub62117-22031¥1,060

main62117-22031-06iGX71,MX75,RX7#,YX72..SA198812-199205

SABLE,TRIM4#

sub62117-22031¥1,060

main62117-22031-13iGX71,MX75,RX7#,YX72..SA199009-199205

MEDIUM GRAY,TRIM1#

sub62117-22031¥1,060

main62117-91603-02iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

sub62117-91603¥790

main62117-91603-03iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

sub62117-91603¥790

main62117-91603-04iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub62117-91603¥790

main62117-91603-06iRX72..RHD..GEN198810-199302

SABLE,TRIM4#

sub62117-91603¥790

main62117-91604-02iRX72..LHD198810-199302

NEW MAROON,TRIM3#

main62117-91604-03iRX72..LHD199008-199302

MEDIUM GRAY,TRIM1#

main62117-91604-04iRX72..LHD198810-199008

BLUE,TRIM8#

main62117-91604-06iRX72..LHD198810-199302

SABLE,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62211-22120-03iMX75..GL;GX71,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub62211-22120¥2,930

main62211-22120-06iMX75..GL;GX71,RX7#,YX72198810-199302

SABLE,TRIM4#

sub62211-22120¥2,930

main62211-22120-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub62211-22120¥2,930

main62211-22120-13iMX75..GL;GX71,RX7#,YX72199008-199302

MEDIUM GRAY,TRIM1#

sub62211-22120¥2,930

main62211-22120-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub62211-22120¥2,930

main62211-22130-03iMX75..GLX198812-199009

COOL GRAY,TRIM1#

sub62211-22130¥3,820

main62211-22130-06iMX75..GLX198812-199205

SABLE,TRIM4#

sub62211-22130¥3,820

main62211-22130-13iMX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

sub62211-22130¥3,820

62212GARNISH, FRONT PILLAR, LH

main62212-22130-03iMX75..GL;GX71,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub62212-22130¥2,930

main62212-22130-06iMX75..GL;GX71,RX7#,YX72198810-199302

SABLE,TRIM4#

sub62212-22130¥2,930

main62212-22130-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub62212-22130¥2,930

main62212-22130-13iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub62212-22130¥2,930

main62212-22130-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub62212-22130¥2,930

main62212-22140-03iMX75..GLX198812-199009

COOL GRAY,TRIM1#

sub62212-22140¥3,820

main62212-22140-06iMX75..GLX198812-199205

SABLE,TRIM4#

sub62212-22140¥3,820

main62212-22140-13iMX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

sub62212-22140¥3,820

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-22011-03iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub62311-22011¥6,200

main62311-22011-06iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

sub62311-22011¥6,200

main62311-22011-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub62311-22011¥6,200

main62311-22011-13iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub62311-22011¥6,200

main62311-22011-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub62311-22011¥6,200

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-22011-03iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub62312-22011¥6,200

main62312-22011-06iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

sub62312-22011¥6,200

main62312-22011-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub62312-22011¥6,200

main62312-22011-13iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub62312-22011¥6,200

main62312-22011-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub62312-22011¥6,200

62313DTRIM, FRONT DOOR OPENING, RH

main62313-22110-03iYX72198812-199009

COOL GRAY,TRIM1#

sub62313-91603¥2,930

main62313-22110-06iYX72198812-199205

SABLE,TRIM4#

sub62313-91603¥2,930

main62313-22110-13iYX72199009-199205

MEDIUM GRAY,TRIM1#

sub62313-91603¥2,930

62314DTRIM, FRONT DOOR OPENING, LH

main62313-22110-03iYX72198812-199009

COOL GRAY,TRIM1#

sub62313-91603¥2,930

main62313-22110-06iYX72198812-199205

SABLE,TRIM4#

sub62313-91603¥2,930

main62313-22110-13iYX72199009-199205

MEDIUM GRAY,TRIM1#

sub62313-91603¥2,930

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-22010-03iGX71,MX75,RX73,YX72198812-199009

COOL GRAY,TRIM1#

sub62331-22010¥5,500

main62331-22010-06iGX71,MX75,RX73,YX72198812-199205

SABLE,TRIM4#

sub62331-22010¥5,500

main62331-22010-13iGX71,MX75,RX73,YX72199009-199205

MEDIUM GRAY,TRIM1#

sub62331-22010¥5,500

main62331-23010-06iRX72198810-199302

SABLE,TRIM4#

sub62331-23010¥5,900

main62331-23010-13iRX72..SA198812-199009

COOL GRAY,TRIM1#

sub62331-23010¥5,900

main62331-23010-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub62331-23010¥5,900

main62331-23010-22iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub62331-23010¥5,900

main62331-23010-23iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub62331-23010¥5,900

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-22010-03iGX71,MX75,RX73,YX72198812-199009

COOL GRAY,TRIM1#

sub62332-22010¥5,500

main62332-22010-06iGX71,MX75,RX73,YX72198812-199205

SABLE,TRIM4#

sub62332-22010¥5,500

main62332-22010-13iGX71,MX75,RX73,YX72199009-199205

MEDIUM GRAY,TRIM1#

sub62332-22010¥5,500

main62332-23010-06iRX72198810-199302

SABLE,TRIM4#

sub62332-23010¥5,900

main62332-23010-13iRX72..SA198812-199009

COOL GRAY,TRIM1#

sub62332-23010¥5,900

main62332-23010-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub62332-23010¥5,900

main62332-23010-22iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub62332-23010¥5,900

main62332-23010-23iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub62332-23010¥5,900

62333ATRIM, REAR DOOR OPENING, RH

main62313-22110-03iYX72198812-199009

COOL GRAY,TRIM1#

sub62313-91603¥2,930

main62313-22110-06iYX72198812-199205

SABLE,TRIM4#

sub62313-91603¥2,930

main62313-22110-13iYX72199009-199205

MEDIUM GRAY,TRIM1#

sub62313-91603¥2,930

62334ATRIM, REAR DOOR OPENING, LH

main62313-22110-03iYX72198812-199009

COOL GRAY,TRIM1#

sub62313-91603¥2,930

main62313-22110-06iYX72198812-199205

SABLE,TRIM4#

sub62313-91603¥2,930

main62313-22110-13iYX72199009-199205

MEDIUM GRAY,TRIM1#

sub62313-91603¥2,930

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-22150-06iRX72..GEN,V198810-199302

SABLE,TRIM4#

sub62411-22150¥1,810

main62411-22150-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub62411-22150¥1,810

main62411-22150-13iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub62411-22150¥1,810

main62411-22150-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub62411-22150¥1,810

main62411-22170-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub62411-22170¥3,130

main62411-22170-06iGX71,MX75,RX7#,YX72..SA198812-199205

SABLE,TRIM4#

sub62411-22170¥3,130

main62411-22170-13iGX71,MX75,RX7#,YX72..SA199009-199205

MEDIUM GRAY,TRIM1#

sub62411-22170¥3,130

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-22170-06iRX72..GEN,V198810-199302

SABLE,TRIM4#

sub62412-22170¥1,810

main62412-22170-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub62412-22170¥1,810

main62412-22170-13iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub62412-22170¥1,810

main62412-22170-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub62412-22170¥1,810

main62412-22190-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub62412-22190¥3,130

sub62411-22170¥3,130

main62412-22190-06iGX71,MX75,RX7#,YX72..SA198812-199205

SABLE,TRIM4#

sub62412-22190¥3,130

sub62411-22170¥3,130

main62412-22190-13iGX71,MX75,RX7#,YX72..SA199009-199205

MEDIUM GRAY,TRIM1#

sub62412-22190¥3,130

sub62411-22170¥3,130

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-22040-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub62413-22040¥2,600

main62413-22040-06iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

sub62413-22040¥2,600

main62413-22040-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub62413-22040¥2,600

main62413-22040-13iGX71,MX75,RX7#,YX72199008-199302

MEDIUM GRAY,TRIM1#

sub62413-22040¥2,600

main62413-22040-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub62413-22040¥2,600

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-22040-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub62414-22040¥2,600

main62414-22040-06iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

sub62414-22040¥2,600

main62414-22040-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub62414-22040¥2,600

main62414-22040-13iGX71,MX75,RX7#,YX72199008-199302

MEDIUM GRAY,TRIM1#

sub62414-22040¥2,600

main62414-22040-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub62414-22040¥2,600

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62431-22060-03iGX71;MX75..GL198812-199009

COOL GRAY,TRIM1#

sub62431-22060¥2,930

main62431-22060-06iGX71;MX75..GL198812-199205

SABLE,TRIM4#

sub62431-22060¥2,930

main62431-22060-13iGX71;MX75..GL199009-199205

MEDIUM GRAY,TRIM1#

sub62431-22060¥2,930

main62431-22070-03iMX75..GLX198812-199009

COOL GRAY,TRIM1#

sub62431-22070¥3,810

main62431-22070-06iMX75..GLX198812-199205

SABLE,TRIM4#

sub62431-22070¥3,810

main62431-22070-13iMX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

sub62431-22070¥3,810

main62431-23010-03iRX72..SA198812-199009

COOL GRAY,TRIM1#

sub62431-23010¥3,400

main62431-23010-06iRX72198810-199302

SABLE,TRIM4#

sub62431-23010¥3,400

main62431-23010-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub62431-23010¥3,400

main62431-23010-13iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub62431-23010¥3,400

main62431-23010-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub62431-23010¥3,400

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62432-22060-03iGX71;MX75..GL198812-199009

COOL GRAY,TRIM1#

sub62432-22060¥2,930

main62432-22060-06iGX71;MX75..GL198812-199205

SABLE,TRIM4#

sub62432-22060¥2,930

main62432-22060-13iGX71;MX75..GL199009-199205

MEDIUM GRAY,TRIM1#

sub62432-22060¥2,930

main62432-22070-03iMX75..GLX198812-199009

COOL GRAY,TRIM1#

sub62432-22070¥3,810

main62432-22070-06iMX75..GLX198812-199205

SABLE,TRIM4#

sub62432-22070¥3,810

main62432-22070-13iMX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

sub62432-22070¥3,810

main62432-23010-03iRX72..SA198812-199009

COOL GRAY,TRIM1#

sub62432-23010¥3,400

main62432-23010-06iRX72198810-199302

SABLE,TRIM4#

sub62432-23010¥3,400

main62432-23010-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub62432-23010¥3,400

main62432-23010-13iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub62432-23010¥3,400

main62432-23010-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub62432-23010¥3,400

62473CBOARD, ROOF SIDE INNER GARNISH, RH

main62473-22120-03iRX73,YX72198812-199009

COOL GRAY,TRIM1#

main62473-22120-06iRX73,YX72198812-199205

SABLE,TRIM4#

main62473-22120-13iRX73,YX72199009-199205

MEDIUM GRAY,TRIM1#

main62473-22150-03iMX75..GLX198812-199009

COOL GRAY,TRIM1#

main62473-22160-06iMX75..GLX198812-199205

SABLE,TRIM4#

sub62473-22150¥5,700

main62473-22160-13iMX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

sub62473-22150¥5,700

main62473-22170-03iGX71;MX75..GL198812-199009

COOL GRAY,TRIM1#

sub62473-22140¥5,700

main62473-22170-06iGX71;MX75..GL198812-199205

SABLE,TRIM4#

sub62473-22140¥5,700

main62473-22170-13iGX71;MX75..GL199009-199205

MEDIUM GRAY,TRIM1#

sub62473-22140¥5,700

62474CBOARD, ROOF SIDE INNER GARNISH, LH

main62474-22120-03iRX73,YX72198812-199009

COOL GRAY,TRIM1#

main62474-22120-06iRX73,YX72198812-199205

SABLE,TRIM4#

main62474-22120-13iRX73,YX72199009-199205

MEDIUM GRAY,TRIM1#

main62474-22150-03iMX75..GLX198812-199009

COOL GRAY,TRIM1#

main62474-22160-06iMX75..GLX198812-199205

SABLE,TRIM4#

sub62474-22150¥5,700

main62474-22160-13iMX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

sub62474-22150¥5,700

main62474-22170-03iGX71;MX75..GL198812-199009

COOL GRAY,TRIM1#

sub62474-22140¥5,700

main62474-22170-06iGX71;MX75..GL198812-199205

SABLE,TRIM4#

sub62474-22140¥5,700

main62474-22170-13iGX71;MX75..GL199009-199205

MEDIUM GRAY,TRIM1#

sub62474-22140¥5,700

62551FGARNISH, REAR SEAT SIDE, RH

main62551-22020-03iGX71,MX75,RX73,YX72198812-199009

COOL GRAY,TRIM1#

sub62551-22020¥3,400

main62551-22020-06iGX71,MX75,RX73,YX72198812-199205

SABLE,TRIM4#

sub62551-22020¥3,400

main62551-22020-13iGX71,MX75,RX73,YX72199009-199205

MEDIUM GRAY,TRIM1#

sub62551-22020¥3,400

62552FGARNISH, REAR SEAT SIDE, LH

main62552-22020-03iGX71,MX75,RX73,YX72198812-199009

COOL GRAY,TRIM1#

sub62552-22020¥3,400

main62552-22020-06iGX71,MX75,RX73,YX72198812-199205

SABLE,TRIM4#

sub62552-22020¥3,400

main62552-22020-13iGX71,MX75,RX73,YX72199009-199205

MEDIUM GRAY,TRIM1#

sub62552-22020¥3,400

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-08056-01iRX72..GEN,V198810-199008

BLACK,TRIM3#,4#,8#

sub90467-08056¥140

main90467-08056-01iGX71,MX75,RX7#,YX72..SA198810-199205

BLACK,TRIM1#,4#

sub90467-08056¥140

62561DPROTECTOR, ROCKER PANEL, INNER FRONT RH

main62561-22030iGX71,MX75,RX7#,YX72¥2,050198810-199302

62562DPROTECTOR, ROCKER PANEL, INNER FRONT LH

main62562-22030iGX71,MX75,RX7#,YX72¥2,050198810-199302

62563PROTECTOR, ROCKER PANEL, INNER REAR RH

main62563-22020iGX71,MX75,RX7#,YX72¥1,400198810-199302

62564PROTECTOR, ROCKER PANEL, INNER REAR LH

main62564-22010iGX71,MX75,RX7#,YX72¥1,400198810-199302

62581CGARNISH, REAR WINDOW SIDE, RH

main62581-22050-03iMX75..GL;GX71,RX73,YX72198812-199009

COOL GRAY,TRIM1#

sub62581-22050¥1,960

main62581-22050-06iMX75..GL;GX71,RX73,YX72198812-199205

SABLE,TRIM4#

sub62581-22050¥1,960

main62581-22060-03iMX75..GLX198812-199009

COOL GRAY,TRIM1#

sub62581-22050¥1,960

main62581-22060-06iMX75..GLX198812-199205

SABLE,TRIM4#

sub62581-22050¥1,960

main62581-22060-23iMX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

sub62581-22050¥1,960

62582CGARNISH, REAR WINDOW SIDE, LH

main62582-22030-03iMX75..GL;GX71,RX73,YX72198812-199009

COOL GRAY,TRIM1#

sub62582-22030¥1,960

main62582-22030-06iMX75..GL;GX71,RX73,YX72198812-199205

SABLE,TRIM4#

sub62582-22030¥1,960

main62582-22040-03iMX75..GLX198812-199009

COOL GRAY,TRIM1#

sub62582-22030¥1,960

main62582-22040-06iMX75..GLX198812-199205

SABLE,TRIM4#

sub62582-22030¥1,960

main62582-22040-23iMX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

sub62582-22030¥1,960

67913PLATE, FRONT DOOR SCUFF, RH

main67913-22060-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub67913-22060¥2,090

main67913-22060-06iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

sub67913-22060¥2,090

main67913-22060-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub67913-22060¥2,090

main67913-22060-13iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub67913-22060¥2,090

main67913-22060-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub67913-22060¥2,090

67914PLATE, FRONT DOOR SCUFF, LH

main67913-22060-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub67913-22060¥2,090

main67913-22060-06iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

sub67913-22060¥2,090

main67913-22060-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub67913-22060¥2,090

main67913-22060-13iGX71,MX75,RX7#,YX72199008-199302

MEDIUM GRAY,TRIM1#

sub67913-22060¥2,090

main67913-22060-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub67913-22060¥2,090

67917APLATE, REAR DOOR SCUFF, RH

main67917-22060-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub67917-22060¥1,530

main67917-22060-06iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

sub67917-22060¥1,530

main67917-22060-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub67917-22060¥1,530

main67917-22060-13iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub67917-22060¥1,530

main67917-22060-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub67917-22060¥1,530

67918APLATE, REAR DOOR SCUFF, LH

main67918-22060-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub67918-22060¥1,530

main67918-22060-06iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

sub67918-22060¥1,530

main67918-22060-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub67918-22060¥1,530

main67918-22060-13iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub67918-22060¥1,530

main67918-22060-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub67918-22060¥1,530

7104

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080¥160

9015950083

main90159-50083¥90

9018905018

main90189-05018¥120

9046305024

main90463-05024¥140

9046804118

main90468-04118¥140

9046805011

main90468-05011¥120

9046807013

main90468-07013¥140

9095901009

main90959-01009¥230

9095901165

main90959-01165¥230

9356014010

main93560-14010¥60

9356054012

main93560-54012¥60

50 parts on this diagram · 3 diagrams in section
