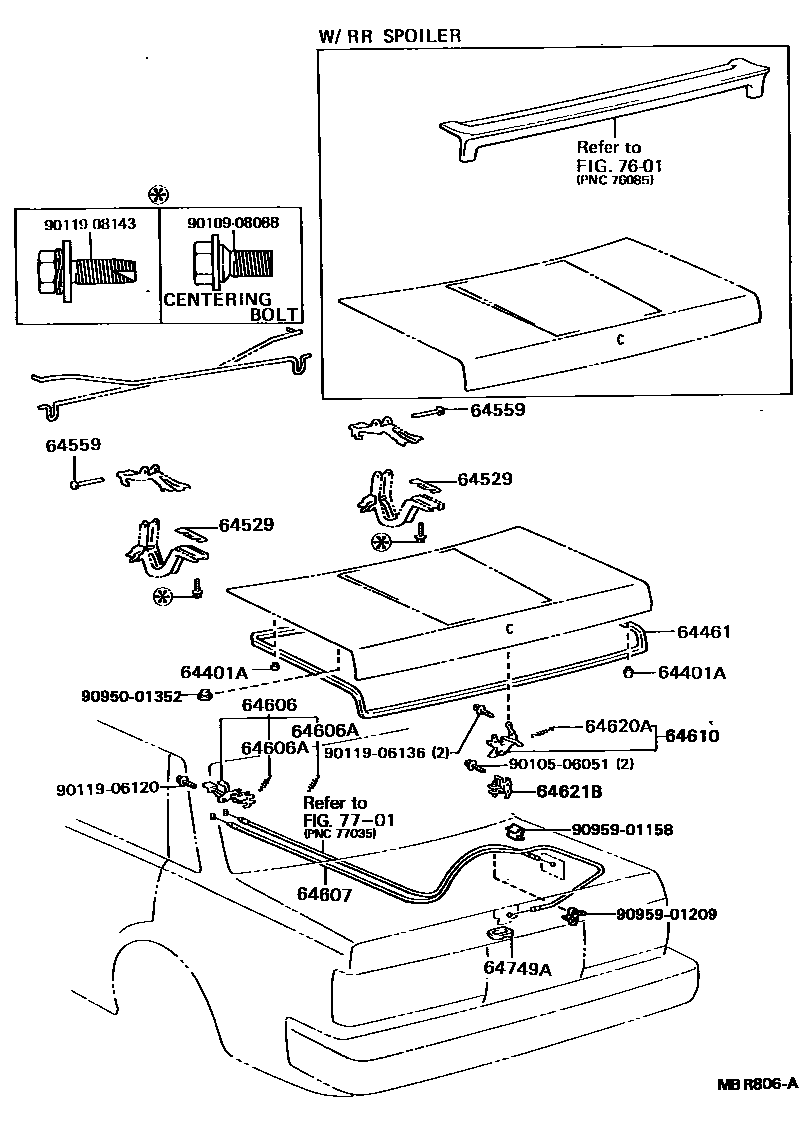

LUGGAGE COMPARTMENT DOOR & LOCK

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076iGX71,MX75,RX73,YX72198812-199205

FRONT

sub90541-06056

main90541-09042iGX71,MX75,RX73,YX72198812-199205

REAR

sub90541-09043

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-22120iGX71,MX75,RX73,YX72198812-199205

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010iGX71,MX75,RX73,YX72198812-199205

64559PIN, LUGGAGE DOOR HINGE

main64559-22010iGX71,MX75,RX73,YX72198812-199205

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-22090iGX71,MX75,RX73,YX72198812-199205

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iGX71,MX75,RX73,YX72198812-199205

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-22300iGX71,MX75,RX73,YX72198812-199205

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-22100iGX71,MX75,RX73,YX72198812-199205

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iGX71,MX75,RX73,YX72198812-199205

CW=13,WD=0.8

main90508-09001iGX71,MX75,RX73,YX72198812-199205

CW=3.25,WD=0.9

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-12060iGX71,MX75,RX73,YX72198812-199205

sub64621-12070

64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-22020iRX73,YX72198812-199205

7601

7701

9010506051

main90105-06051

9010908088

main90109-08088

9011906120

main90119-06120

9011906136

main90119-06136

9011908143

main90119-08143

9095001352

main90950-01352

9095901158

main90959-01158

9095901209

main90959-01209

21 parts on this diagram · 1 diagram in section
