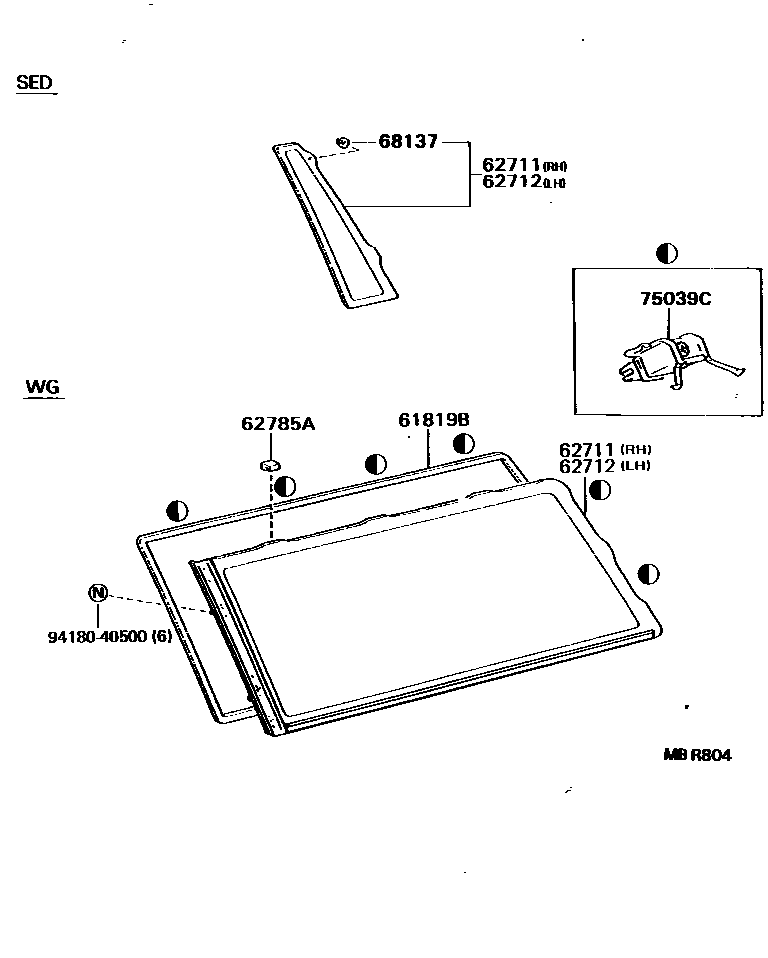

QUARTER WINDOW

61819BSEAL, QUARTER WINDOW REAR SHIELD

main61819-23020iRX72198810-199302

62711GLASS, QUARTER WINDOW, RH

main62710-23900iRX72..GEN,V198810-199302

*TT,T=3.5

main62711-22100iGX71,MX75,RX73,YX72198812-199205

*TT,T=3.5

62712GLASS, QUARTER WINDOW, LH

main62712-22100iGX71,MX75,RX73,YX72198812-199205

*TT,T=3.5

main62720-23900iRX72..GEN,V198810-199302

*TT,T=3.5

62785ASPACER, QUARTER WINDOW GLASS

main62785-23010iRX72198810-199302

68137SPACER, QUARTER WINDOW NO.2 GLASS

main68137-32010iGX71,MX75,RX73,YX72198812-199205

75039CCLIP SUB-ASSY, OUTSIDE MOULDING, NO.1

main75039-23010iRX72198810-199302

9418040500

main94180-40500

7 parts on this diagram · 1 diagram in section
