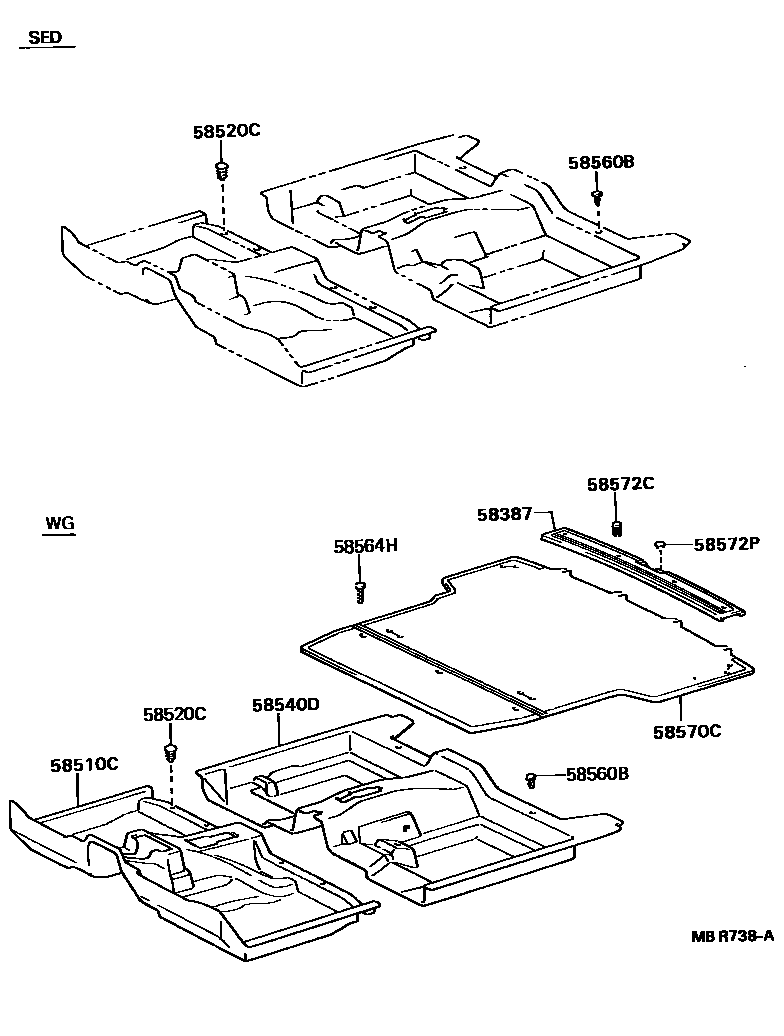

MAT & CARPET

58387PLATE, REAR FLOOR FINISH

main58387-23010-03iRX72..SA198812-199009

COOL GRAY,TRIM1#

main58387-23010-06iRX72198810-199302

SABLE,TRIM4#

main58387-23010-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

main58387-23010-13iRX72..GEN,V199008-199009

MEDIUM GRAY,TRIM1#

main58387-23010-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-2A200-03iRX7#,YX72..SA199008-199205

MEDIUM GRAY,MEDIUM GRAY,TRIM1#

main58510-2A200-06iRX72..RHD..GEN199008-199302

SABLE,TRIM4#

main58510-2A200-12iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

main58510-2A200-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

main58510-2A220-03iRX72..LHD..XL199008-199302

MEDIUM GRAY,TRIM1#

main58510-2A220-06iRX72..LHD..XL198810-199302

SABLE,TRIM4#

main58510-2A220-12iRX72..LHD..XL198810-199302

NEW MAROON,TRIM3#

main58510-2A220-14iRX72..LHD..XL198810-199008

BLUE,TRIM8#

main58510-2A230-06iRX72..GL198810-198902

BROWN,TRIM4#

main58510-2A230-12iRX72..GL198810-198902

NEW MAROON,TRIM3#

main58510-2A230-14iRX72..GL198810-198902

BLUE,TRIM8#

main58510-91628-02iRX72..GL198902-199302

NEW MAROON,TRIM3#

main58510-91628-03iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main58510-91628-04iRX72..GL198902-199008

BLUE,TRIM8#

main58510-91628-06iRX72..GL198902-199302

SABLE,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06055-03×2iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

main90467-06055-06×2iGX71,MX75,RX7#,YX72..RHD198810-199302

SABLE,TRIM4#

main90467-06055-12×2iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

main90467-06055-14×2iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

main90467-06055-23×2iRX72..RHD..GEN199008-199009

MEDIUM GRAY,TRIM1#

58540DCARPET ASSY, FLOOR, REAR

main58540-22510-06iRX72..XL..V198810-198907

W(FRONT SEAT BELT),SABLE,TRIM4#

main58540-22510-12iRX72..XL..V198810-198907

NEW MAROON,TRIM3#

main58540-22510-14iRX72..XL..V198810-198907

BLUE,TRIM8#

main58540-22530-02iRX72..GEN198810-198907

MAROON,TRIM3#

main58540-22530-06iRX72..GEN198810-198907

SABLE,TRIM4#

main58540-22530-12iRX72..GEN198810-198907

NEW MAROON,TRIM3#

main58540-22530-14iRX72..GEN198810-198907

BLUE,TRIM8#

main58540-22540-06iRX72..GL198810-198902

BROWN,TRIM4#

main58540-22540-12iRX72..GL198810-198902

NEW MAROON,TRIM3#

main58540-22540-14iRX72..GL198810-198902

BLUE,TRIM8#

main58540-91616-02iRX72..GL198902-199302

NEW MAROON,TRIM3#

sub58540-23040

main58540-91616-03iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

sub58540-23040

main58540-91616-04iRX72..GL198902-199008

BLUE,TRIM8#

sub58540-23040

main58540-91616-06iRX72..GL198902-199302

SABLE,TRIM4#

sub58540-23040

main58540-91619-02iRX72..XL..V198907-199008

NEW MAROON,TRIM3#

sub58540-23030

main58540-91619-03iRX72..XL..(GEN,V)199008-199302

MEDIUM GRAY,TRIM1#

sub58540-23030

main58540-91619-04iRX72..XL..V198907-199008

BLUE,TRIM8#

sub58540-23030

main58540-91619-06iRX72..XL..V198907-199008

W(FRONT SEAT BELT),SABLE,TRIM4#

sub58540-23030

main58540-91620-02iRX72..GEN198907-199008

NEW MAROON,TRIM3#

main58540-91620-04iRX72..GEN198907-199008

BLUE,TRIM8#

main58540-91620-06iRX72..GEN198907-199008

SABLE,TRIM4#

58560BCLIP(FOR FLOOR CARPET, REAR)

main90467-07158-01×2iRX72..GEN,V198810-199008

BLACK,TRIM3#,4#,8#

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-06016-47×3iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub90467-07049

main90467-06016-48×3iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub90467-07049

main90467-06016-49×3iRX72199009-199302

GRAY,TRIM1#

sub90467-07049

main90467-06016-53×3iRX72..SA198812-199009

COOL GRAY,TRIM1#

sub90467-07049

main90467-06016-57×3iRX72198810-199302

SABLE,TRIM4#

sub90467-07049

58570CCARPET ASSY, REAR FLOOR

main58570-23021-06iRX72..GL198810-198902

BROWN,TRIM4#

main58570-23021-12iRX72..GL198810-198902

NEW MAROON,TRIM3#

main58570-23021-14iRX72..GL198810-198902

BLUE,TRIM8#

main58570-23030-06iRX72..SA198812-199205

SABLE,SABLE,TRIM4#

main58570-23030-13iRX72..XL..(GEN,V)199008-199302

MEDIUM GRAY,TRIM1#

main58570-23030-14iRX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

main58570-23030-22iRX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

main58570-91604-02iRX72..GL198902-199302

NEW MAROON,TRIM3#

main58570-91604-03iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main58570-91604-04iRX72..GL198902-199008

BLUE,TRIM8#

main58570-91604-06iRX72..GL198902-199302

SABLE,TRIM4#

58572CCLIP, REAR FLOOR MAT SET

main90467-06017-40×5iRX72..SA198812-199009

GRAY,TRIM1#

main90467-06017-41×5iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

main90467-06017-48×5iRX72..GEN,V198810-199008

BLUE,TRIM8#

main90467-06017-58×5iRX72198810-199302

SABLE,TRIM4#

main90467-06017-59×5iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

58572PPLUG, HOLE(FOR SET PLATE)

main90950-01484-03iRX72..SA198812-199009

COOL GRAY,TRIM1#

main90950-01484-06iRX72198810-199302

SABLE,TRIM4#

main90950-01484-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

main90950-01484-13iRX72..GEN,V199008-199009

MEDIUM GRAY,TRIM1#

main90950-01484-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

9 parts on this diagram · 1 diagram in section
