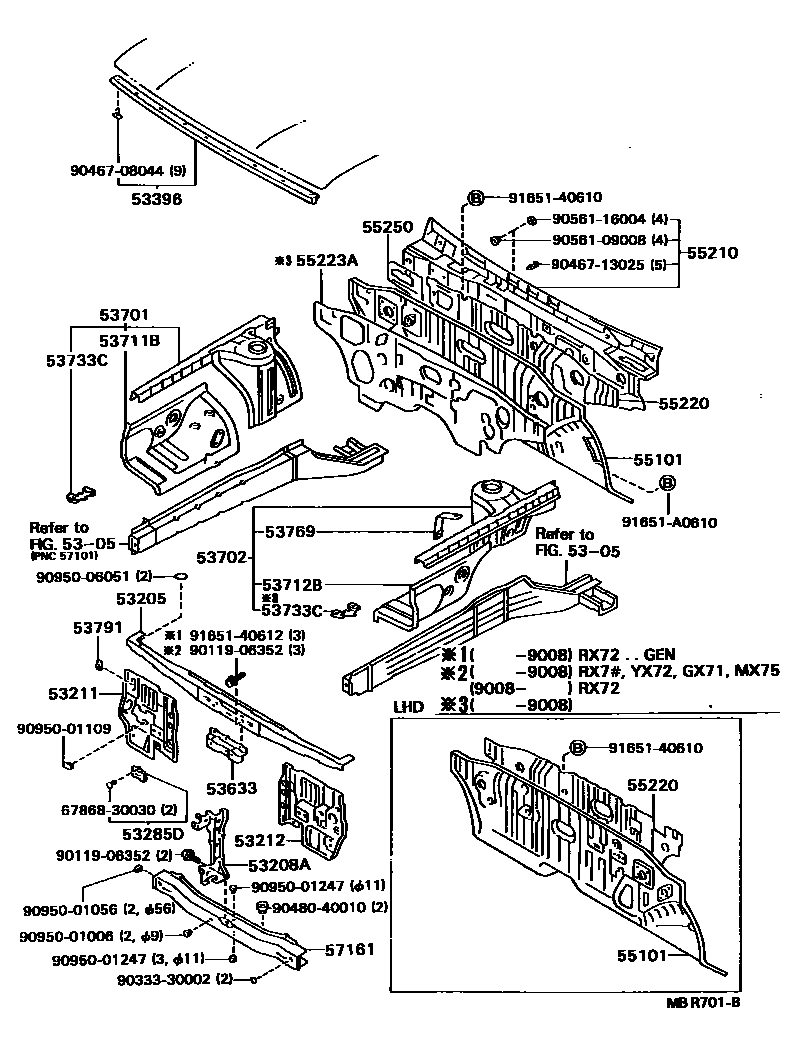

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

5305

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-22150iRX72..GEN,V198810-199302

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-22042iGX71,MX75,RX7#,YX72198810-199302

sub53208-22051

53211SUPPORT, RADIATOR, RH

main53211-22211iRX72..GEN198810-199302

main53211-22230iRX72..V198810-199302

53212SUPPORT, RADIATOR, LH

main53212-22141iRX72..GEN198810-199302

sub53212-22190

main53212-22170iRX72..V198810-199302

53285DCOVER, FRONT BUMPER ARM HOLE

main53285-22020iGX71,MX75,RX7#,YX72..GEN,SA198810-199302

RH

main53286-22010iGX71,MX75,RX7#,YX72..GEN,SA198810-199302

LH

53396SEAL, RADIATOR SUPPORT TO HEADLAMP

main53396-22011iGX71,MX75,RX7#,YX72198810-199302

53633SHIELD, HOOD LOCK CONTROL CABLE

main53633-22030iGX71,MX75,RX7#,YX72198810-199302

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-22420iRX7#,YX72..RHD198810-199212

sub53701-22400

main53701-22440iRX72..LHD198810-199302

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-22360iRX7#,YX72..RHD198810-199302

main53702-22380iRX72..LHD198810-199302

53711BAPRON, FRONT FENDER, FRONT RH

main53711-22340iRX7#,YX72198810-199302

53712BAPRON, FRONT FENDER, FRONT LH

main53712-22310iRX7#,YX72198810-199302

53733CPATCH, FRONT FENDER APRON

main53733-22060iGX71,MX75,RX7#,YX72198810-199302

53769PLATE, IGNITION COIL MOUNTING, LH

main53769-22030iGX71,MX75,RX7#,YX72198810-199302

53791COVER, COOL AIR INTAKE HOLE

main53791-22020iYX72198810-199302

55101PANEL SUB-ASSY, DASH

main55101-22915iRX7#..RHD198810-199302

main55101-22931iRX72..V198810-199302

main55101-22932iRX72..LHD..GEN198810-199302

55210INSULATOR ASSY, DASH PANEL

main55210-22161iRX72..LHD198810-199302

sub55210-22250

main55210-22180iGX71,MX75,RX7#,YX72..RHD198810-199302

sub55210-22200

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-22010iGX71,MX75,RX7#,YX72..RHD198810-199302

main55220-22020iRX72..LHD198810-199302

55223AINSULATOR, DASH PANEL, OUTER

main55223-22100iGX71,MX75198812-199205

55250DOOR ASSY, COWL SIDE VENTILATOR, RH

main55250-22010iGX71,MX75,RX7#,YX72..RHD198810-199302

57161CROSSMEMBER, FRONT

main57104-22110iRX72..GEN198810-199302

main57104-22120iRX72..V198810-199302

6786830030CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-30030

9011906352

main90119-06352

9033330002

main90333-30002

9046708044

main90467-08044

9046713025

main90467-13025

9048040010

main90480-40010

9056109008

main90561-09008

9056116004

main90561-16004

9095001006

main90950-01006

9095001056

main90950-01056

9095001109

main90950-01109

9095001247

main90950-01247

9095006051

main90950-06051

9165140610

main91651-40610

9165140612

main91651-40612

91651A0610

main91651-A0610

37 parts on this diagram · 2 diagrams in section
