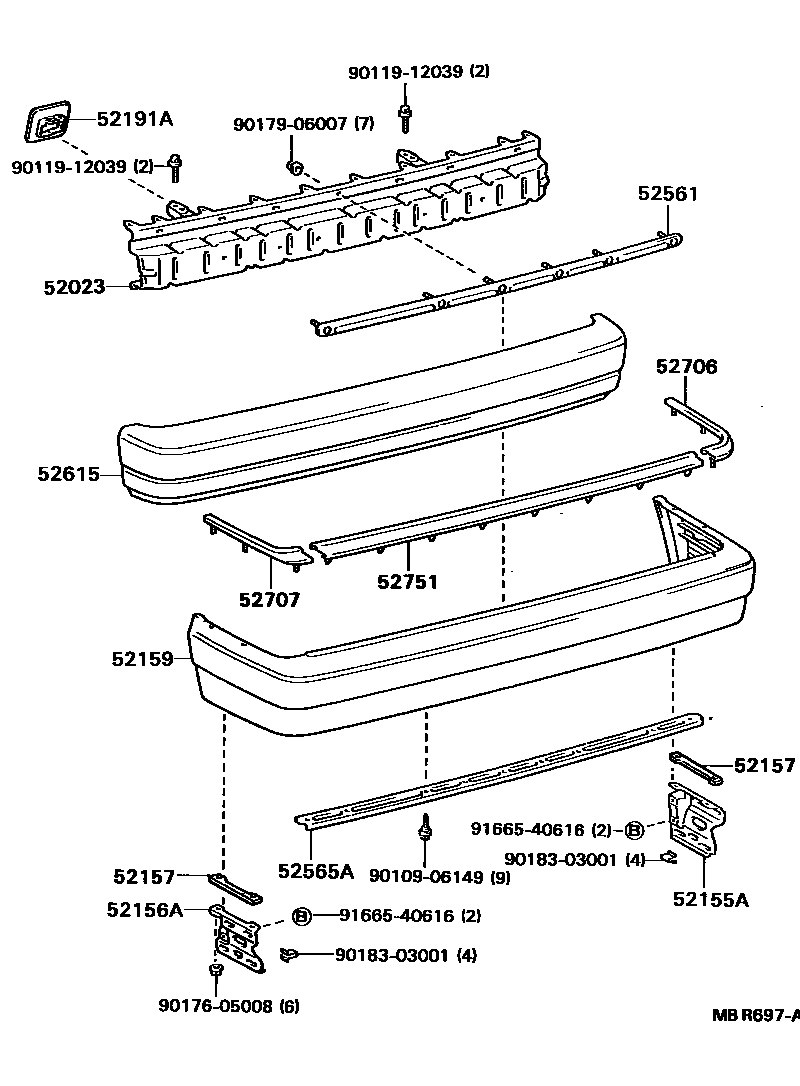

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-23010iRX72..GEN198810-199302

main52023-23020iRX72..V198810-199302

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-23020iRX72..GEN198810-199302

main52155-23030iRX72..SA198812-199205

main52155-23040iRX72..V198810-199302

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-23020iRX72..GEN198810-199302

main52156-23030iRX72..SA198812-199205

main52156-23040iRX72..V198810-199302

52157SUPPORT, REAR BUMPER SIDE, NO.2

main52157-23010iRX72..V198810-199302

52159COVER, REAR BUMPER

main52159-22140iRX72..SA198812-199205

main52159-22180iRX73,YX72198812-199205

main52159-22200iRX72..V198810-199302

main52159-22210iRX72..GEN198810-199302

main52159-22904iGX71,MX75198812-199205

main52159-22905iRX72..GL198810-199008

FOR PAINTED BUMPER

sub52159-22921

main52159-22921iRX72..GL199008-199302

FOR PAINTED BUMPER

52191ASEAL, REAR BUMPER ARM

main52191-23010iRX72198810-199302

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-22050iGX71,MX75,RX7#,YX72..GEN,SA198810-199302

main52561-22060iRX72..V198810-199302

52565ARETAINER, REAR BUMPER, LOWER

main52565-22030iGX71,MX75,RX7#,YX72..GEN,SA198810-199302

main52565-32020iRX72..V198810-199302

52615ABSORBER, REAR BUMPER ENERGY

main52615-22060iGX71,MX75,RX7#,YX72..SA198812-199205

main52615-22070iRX72..V198810-199302

main52615-22080iRX72..GEN198810-199302

52706MOULDING SUB-ASSY, REAR BUMPER SIDE, RH

main52706-22010iGX71,MX75,RX73,YX72198812-199205

main52706-23020iRX72..SA,V198810-199302

main52706-23030iRX72..GEN198810-199302

52707MOULDING SUB-ASSY, REAR BUMPER SIDE, LH

main52707-22010iGX71,MX75,RX73,YX72198812-199205

main52707-23020iRX72..SA,V198810-199302

main52707-23030iRX72..GEN198810-199302

52751MOULDING, REAR BUMPER

main52751-22070iGX71,MX75,RX73,YX72198812-199205

main52751-23010iRX72..SA,V198810-199302

main52751-91604iRX72..GEN198810-199302

9010906149

main90109-06149

9011912039

main90119-12039

9017605008

main90176-05008

9017906007

main90179-06007

9018303001

main90183-03001

9166540616

main91665-40616

18 parts on this diagram · 1 diagram in section
