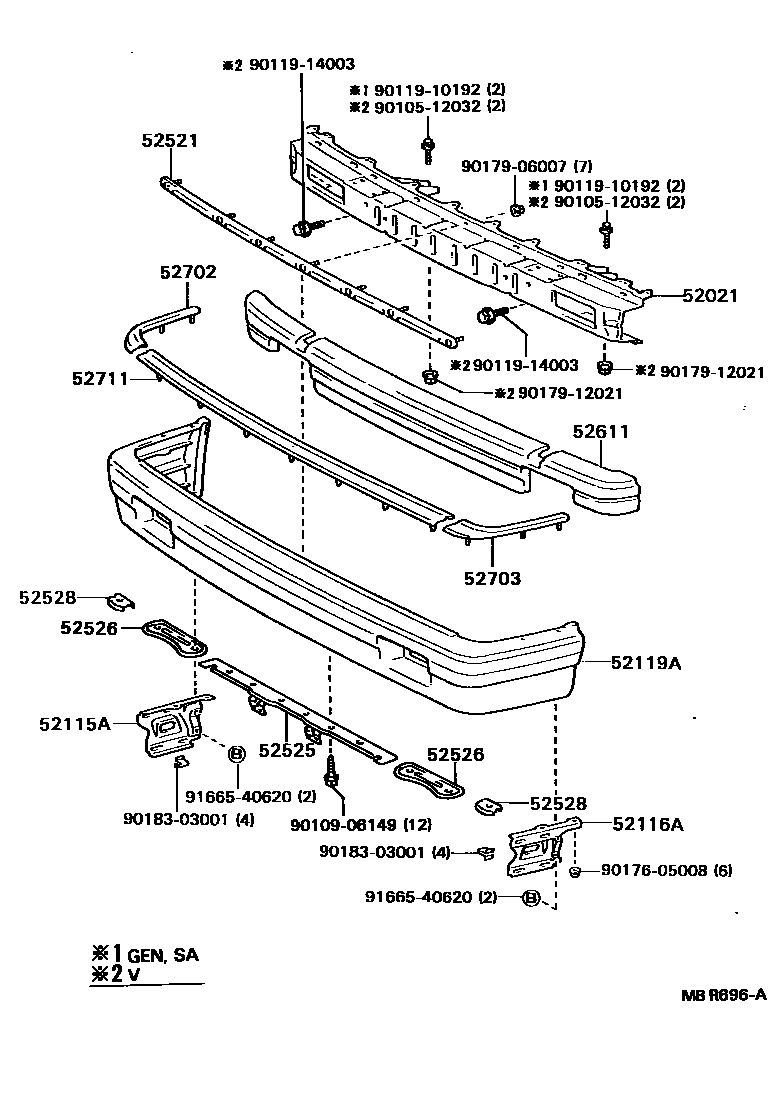

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52521RETAINER, FRONT BUMPER, UPPER CENTER
52525RETAINER, FRONT BUMPER, LOWER CENTER
52526RETAINER, FRONT BUMPER, LOWER SIDE
52528RETAINER, FRONT BUMPER, LOWER CORNER
52611ABSORBER, FRONT BUMPER ENERGY
52702MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH
52703MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH
52711MOULDING, FRONT BUMPER
9010512032
main90105-12032
9010906149
main90109-06149
9011910192
main90119-10192
9011914003
main90119-14003
9017605008
main90176-05008
9017906007
main90179-06007
9017912021
main90179-12021
9018303001
main90183-03001
9166540620
main91665-40620
21 parts on this diagram · 1 diagram in section
