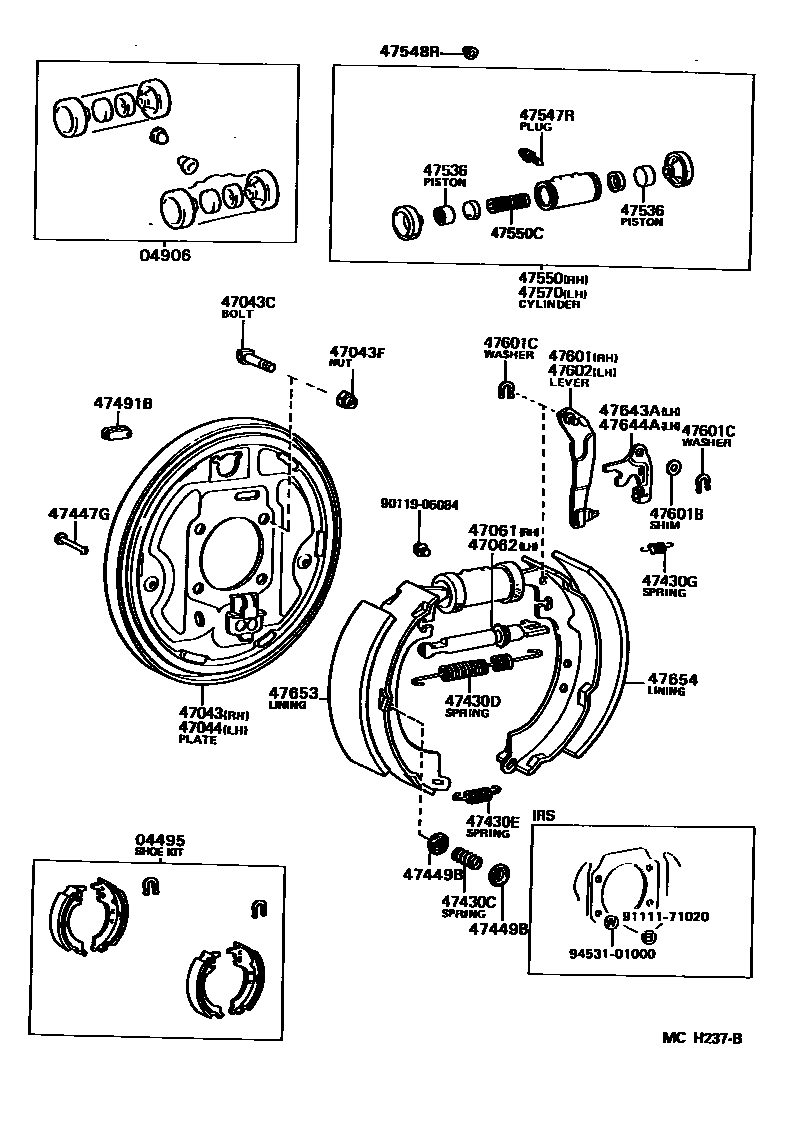

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0005 1

04495SHOE KIT, REAR BRAKE

main04495-22041iGX71,RX73¥7,800198812-199205

sub04495-14042¥8,600

main04495-22081iRX72,YX72¥7,800198810-199302

sub04495-22090¥9,200

main04495-22090iRX72..GEN¥9,200199002-199302

main04497-22050iRX72..GEN199002-199008

REBUILT

04906CUP KIT, REAR WHEEL CYLINDER

main04906-14010iRX72..V¥1,120199002-199302

main04906-14020iGX71,RX7#,YX72..SA¥1,110198810-199205

main04906-22040iRX72..GEN¥1,110199105-199302

main04906-22H00iRX72,YX72..GEN,SA¥1,110199001-199007

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-22040iGX71,RX73¥5,100198812-199205

main47043-22060iRX72,YX72¥5,100198810-199302

sub47043-23020¥5,100

sub47492-28010¥130

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011iRX72..GEN,V¥250198810-199302

*10-1.25PX37-15

main42184-22020iRX72,YX72..SA¥230198812-199205

*10-1.25PX26-10

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000iRX72,YX72¥180198810-199302

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-22040iGX71,RX73¥5,100198812-199205

main47044-22060iRX72,YX72¥5,700198810-199302

sub47044-23020¥5,200

sub47492-28010¥130

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-14040iGX71,RX73¥2,170198812-199205

main47061-32020iRX72,YX72¥2,160198810-199302

sub47061-43010¥2,170

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-14040iGX71,RX73¥2,130198812-199205

main47062-32020iRX72,YX72¥2,160198810-199302

sub47062-43010¥2,170

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017iGX71,RX7#,YX72..SA¥190198810-199302

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375iRX72,YX72..SA¥310198810-199302

main90506-29008iGX71,RX73¥550198812-199205

RH

main90506-29009iGX71,RX73¥550198812-199205

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346iGX71,RX7#,YX72¥230198810-199302

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011iRX72,YX72¥190198810-199302

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030iRX72,YX72¥120198810-199302

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iRX72..GEN,V¥120198810-199302

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-20011iRX72,YX72¥140198810-199302

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-21011iRX72..V¥590199002-199302

main47051-22020iGX71,RX7#,YX72..GEN,SA¥930198810-199205

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iRX72..V¥200199002-199302

main47547-22020iGX71,RX73¥180198812-199205

main47547-26010iRX72,YX72¥370198810-199302

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iGX71,RX7#,YX72¥160198810-199302

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-14010iRX72..V¥4,940199002-199302

main47550-22060iGX71,RX73¥5,100198812-199205

main47550-22090iRX72,YX72..GEN,SA¥5,100198810-199205

main47550-22091iRX72,YX72¥4,980199001-199007

sub47550-22090¥5,100

main47550-22100iRX72..GEN¥5,800199105-199302

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-14010iRX72..V¥370199002-199302

main47509-20010iGX71,RX7#,YX72..GEN,SA¥260198810-199205

main90501-09079iRX72,YX72..GEN,SA¥90199001-199302

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-14010iRX72..V¥4,940199002-199302

main47550-22060iGX71,RX73¥5,100198812-199205

main47550-22090iRX72,YX72..GEN,SA¥5,100198810-199205

main47550-22091iRX72,YX72¥4,980199001-199007

sub47550-22090¥5,100

main47550-22100iRX72..GEN¥5,800199105-199302

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iRX72,YX72¥620198810-199302

main47601-14020iGX71,RX73¥790198812-199205

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iGX71,RX7#,YX72¥170198810-199302

T=0.3

main90564-08151iGX71,RX7#,YX72¥170198810-199302

T=0.6

main90564-08152iGX71,RX7#,YX72¥170198810-199302

T=0.9

main90564-08172iGX71,RX7#,YX72¥190198810-199302

T=0.2

main90564-08173iGX71,RX7#,YX72¥170198810-199302

T=0.4

main90564-08174iGX71,RX7#,YX72¥170198810-199302

T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iGX71,RX7#,YX72..SA¥110198810-199302

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iRX72,YX72¥620198810-199302

main47602-14020iGX71,RX73¥790198812-199205

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-20020iGX71,RX7#,YX72¥480198810-199302

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-20020iGX71,RX7#,YX72¥480198810-199302

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-22040iRX72,YX72198810-199302

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-22040iRX72,YX72198810-199302

9011906084

main90119-06084¥100

9111171020

main91111-71020¥170

9453101000

main94531-01000¥90

32 parts on this diagram · 2 diagrams in section
