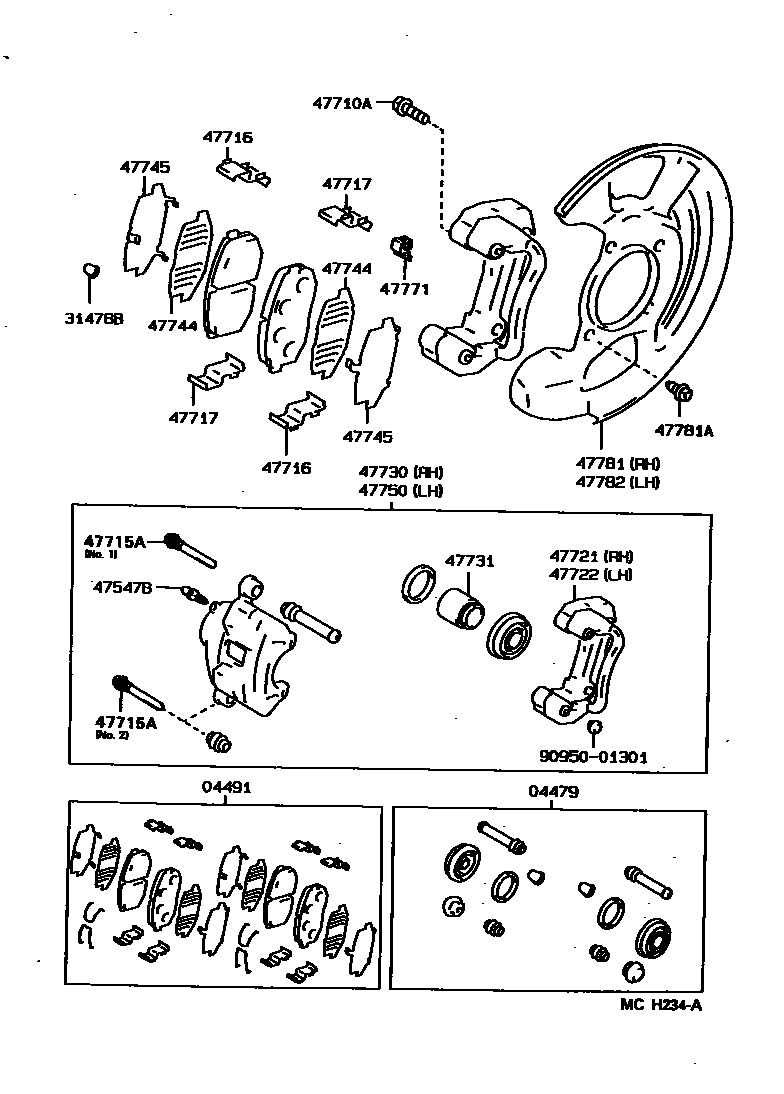

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-22010iGX71,MX75,RX7#,YX72198810-199302

04491PAD KIT, DISC BRAKE, FRONT

main04491-22162iGX71,RX7#,YX72..GEN,SA198810-199302

sub04465-22140

main04491-22210iMX75;RX72..V198810-199302

sub04465-22140

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGX71,MX75,RX7#,YX72198810-199302

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040iGX71,MX75,RX7#,YX72198810-199302

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058iGX71,MX75,RX7#,YX72198810-199302

*12-1.25PX31-20

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22010iGX71,MX75,RX7#,YX72198810-199302

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-22010iGX71,MX75,RX7#,YX72198810-199302

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-22010iGX71,MX75,RX7#,YX72198810-199302

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22050iGX71,RX7#,YX72..GEN,SA198810-199302

main47721-22060iMX75;RX72..V198810-199302

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22030iGX71,RX7#,YX72..GEN,SA198810-199302

main47722-22040iMX75;RX72..V198810-199302

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22150iGX71,RX7#,YX72..GEN,SA198810-199302

sub47730-22151

main47730-22160iMX75;RX72..V198810-199302

47731PISTON, FRONT DISC BRAKE

main47731-22010iGX71,MX75,RX7#,YX72198810-199302

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-22071iGX71,MX75,RX7#,YX72198810-199302

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-22041iGX71,MX75,RX7#,YX72198810-199302

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22150iGX71,RX7#,YX72..GEN,SA198810-199302

sub47750-22151

main47750-22160iMX75;RX72..V198810-199302

47771PLATE, PAD WEAR INDICATOR, NO.1

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-24010iGX71,MX75,RX7#,YX72198810-199302

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08341iGX71,MX75,RX7#,YX72198810-199302

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-24010iGX71,MX75,RX7#,YX72198810-199302

9095001301

main90950-01301

20 parts on this diagram · 2 diagrams in section
