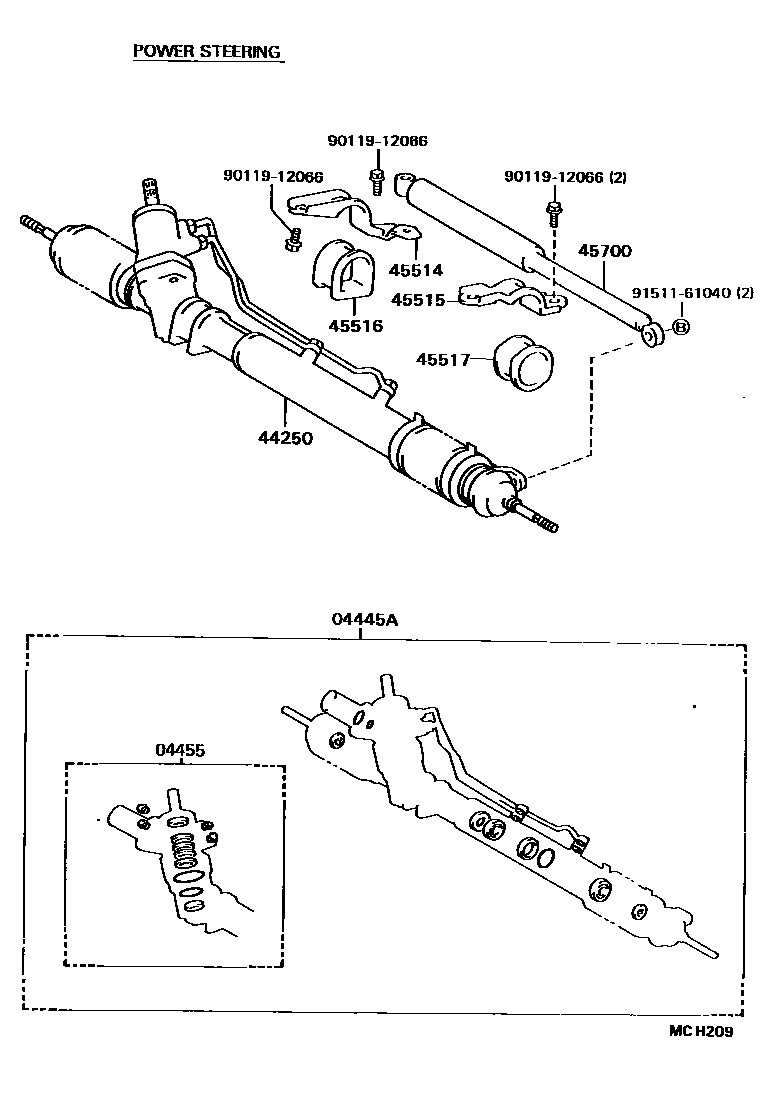

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-22061iRX7#¥6,300198810-198906

sub04445-22062¥6,200

main04445-22062iRX7#¥6,200198906-199205

sub04445-22220¥6,200

main04445-22071iGX71¥6,200198812-199205

main04445-22081iMX75¥6,200198812-199205

main04445-22150iRX72..GEN,V¥6,200199008-199302

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-22040iRX7#..SA¥2,690198810-199205

sub04455-20120¥3,090

main04455-22050iGX71,MX75¥2,680198812-199205

sub04455-35130¥3,090

main04455-22070iRX72..GEN,V¥3,130199008-199104

sub04455-22071¥3,090

main04455-22071iRX72..GEN,V¥3,090199104-199302

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-22011iRX7#..RHD¥108,000198810-199003

sub44250-22012¥107,000

main44250-22012iRX7#..RHD¥107,000199003-199302

sub44250-22013¥107,000

main44250-22031iRX72..LHD¥97,600198810-199003

sub44250-22032¥107,000

main44250-22032iRX72..LHD¥107,000199003-199302

main44250-22051iGX71¥108,000198812-199003

sub44250-22052¥107,000

main44250-22052iGX71¥107,000199003-199205

main44250-22071iMX75¥126,000198812-199003

sub44250-22072¥124,000

main44250-22072iMX75¥124,000199003-199205

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-22030iYX72¥980198812-199205

main45514-22040iGX71,MX75¥1,410198812-199205

main45514-22050iRX7#..RHD¥1,290198810-199302

main45514-22060iRX72..LHD¥1,070198810-199302

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-22030iGX71,MX75¥760198812-199205

main45515-22040iYX72¥760198812-199205

main45515-22050iRX7#..SA¥1,120198812-199205

main45515-22100iRX72..RHD..GEN¥940198810-199302

main45515-22110iRX72..LHD¥1,010198810-199302

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-22010iGX71,MX75,RX7#,YX72¥870198810-199205

main45516-22011iRX72..GEN,V¥920199008-199302

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-22010iYX72¥800198812-199205

main45517-22020iGX71,MX75,RX7#..SA¥870198812-199205

main45517-22040iRX72..GEN,V¥950198810-199302

45700DAMPER ASSY, STEERING

main45700-22010iGX71,MX75¥9,800198812-199205

9011912066

main90119-12066¥210

9151161040

main91511-61040¥170

10 parts on this diagram · 9 diagrams in section
