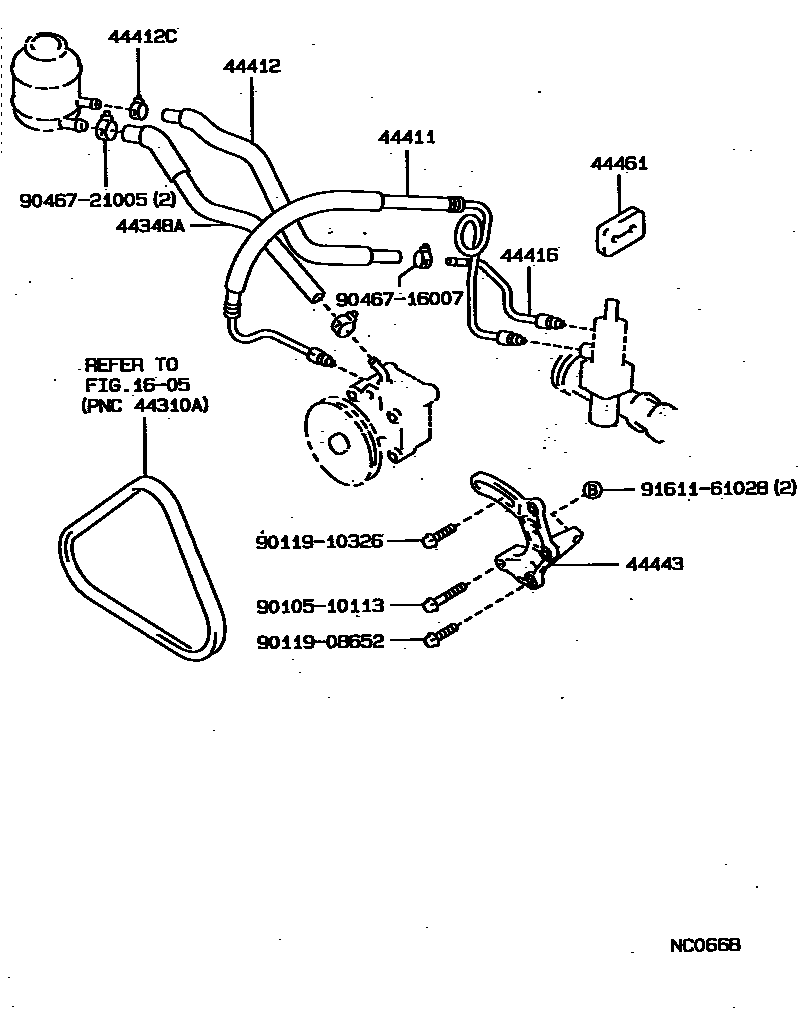

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1605

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-22130iRX7#198810-199302

sub44348-22131

main44348-22210iGX71198812-199205

main44348-22230iMX75198812-199205

44411HOSE, PRESSURE FEED

main44411-22550iRX72..LHD198810-199302

main44411-22590iGX71198812-199205

main44411-22600iMX75198812-199205

44412HOSE, RETURN

main44412-22210iRX72..LHD198810-199302

main44412-22350iGX71,MX75198812-199205

44412CCLAMP(FOR RETURN HOSE)

main90467-16008iRX7#..RHD198810-199302

sub90467-16019

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-22150iGX71,MX75198812-199205

main44416-22181iRX7#..RHD198810-199302

main44416-22210iRX72..LHD198810-199302

44443BRACKET, PUMP

main44443-22100iGX71198812-199205

main44443-30100iMX75198812-199205

main44443-35020iRX7#198810-199302

44461INSULATOR, TUBE REFRIGERANT

main44461-22010iRX72..LHD198810-199008

NO.1

main44461-22011iRX72..LHD199008-199302

NO.1

main44461-22020iGX71,MX75,RX7#..RHD198810-199302

NO.2

9010510113

main90105-10113

9011908652

main90119-08652

9011910326

main90119-10326

9046716007

main90467-16007

9046721005

main90467-21005

9161161028

main91611-61028

14 parts on this diagram · 4 diagrams in section
