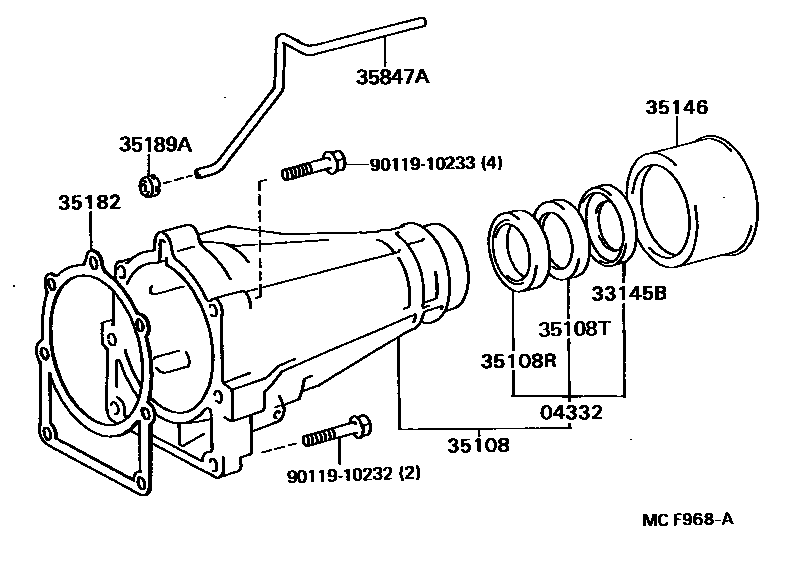

EXTENSION HOUSING (ATM)

0001 1A42DL,A43D 0002 1A340E

04332SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30030iGX71,RX7#..4FC¥730198810-199302

33145BRETAINER, EXTENSION HOUSING DUST SEAL

main33145-30010iGX71,RX7#..4FC¥190198810-199302

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-35020iGX71,RX7#..4FC¥27,900198810-199302

sub35108-35040¥27,900

main35108-35030iMX75..GLX¥27,900198812-199205

sub35108-35050¥27,900

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38030iGX71,RX7#..4FC¥400198810-199302

sub90311-38032¥400

main90311-40001iMX75..GLX¥400198812-199205

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iGX71,RX7#..4FC¥140198810-199302

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iGX71,MX75,RX7#..4FC¥1,680198810-199302

sub33146-30020¥990

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iGX71,MX75,RX7#..4FC¥780198810-199012

sub35182-28010¥520

main35182-28010iMX75..GLX¥520199008-199302

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iGX71,MX75,RX7#..4FC¥500198810-199302

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iGX71,MX75,RX7#..4FC¥460198810-199302

9011910232

main90119-10232¥110

9011910233

main90119-10233¥160

11 parts on this diagram · 2 diagrams in section
