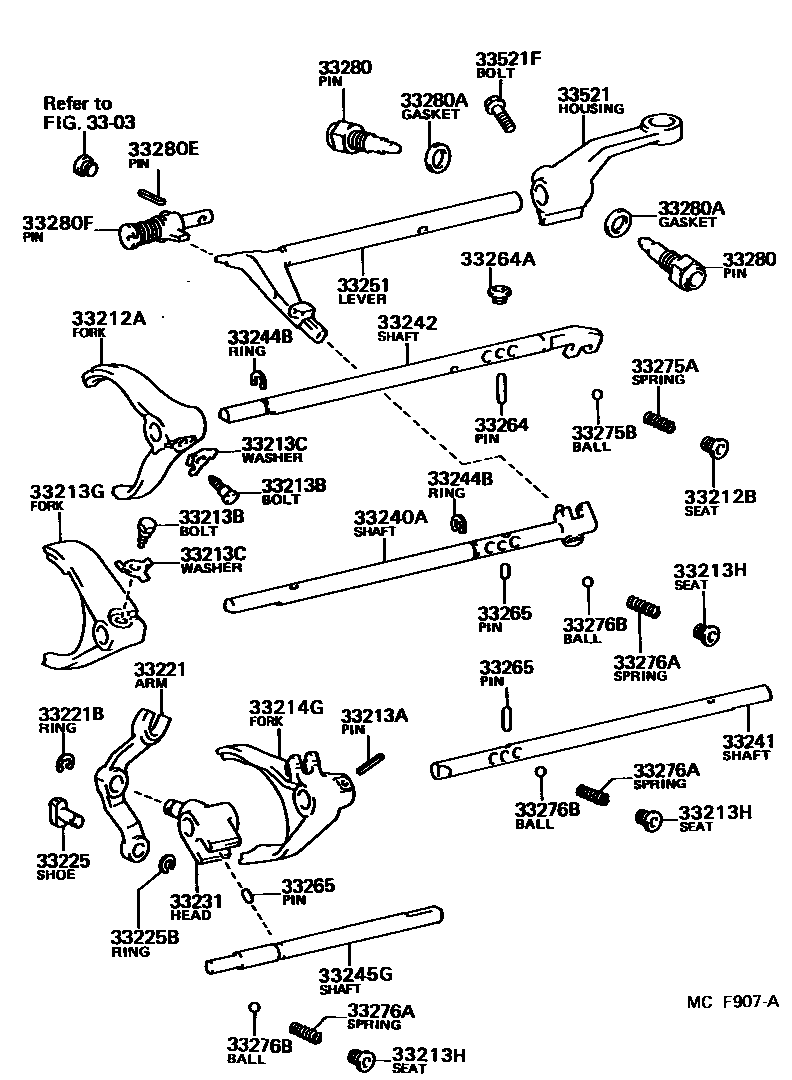

GEAR SHIFT FORK & LEVER SHAFT (MTM)
3303
33212BPLUG, W/HEAD STRAIGHT SCREW, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213CWASHER, LOCK(FOR SHIFT FORK SET)
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33225SHOE, SHIFT ARM
33225BRING, E(FOR SHIFT ARM SHOE)
33231HEAD, REVERSE SHIFT
33241SHAFT, REVERSE SHIFT FORK
33242SHAFT, GEAR SHIFT FORK, NO.1
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245GSHAFT, GEAR SHIFT FORK, NO.4
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33264APLUG, INTERLOCK HOLE
L=7.5,OD=15
33265PIN, SHIFT INTERLOCK, NO.2
L=11.2,OD=4
L=13.6,OD=6
L=8.6,OD=6
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=17
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=20.2
33275BBALL, SHAFT DETENT
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
L=14.64
SHIFT HEAD
sub90501-14123
SHIFT FORK SHAFT
33276BBALL, SHIFT DETENT, NO.2
SHIFT HEAD
SHIFT FORK SHAFT
33280PIN ASSY, REVERSE RESTRICT
RH
LH
33280AGASKET, REVERSE RESTRICT PIN
33280EPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33280FPIN ASSY, REVERSE RESTRICT
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
34 parts on this diagram · 2 diagrams in section
