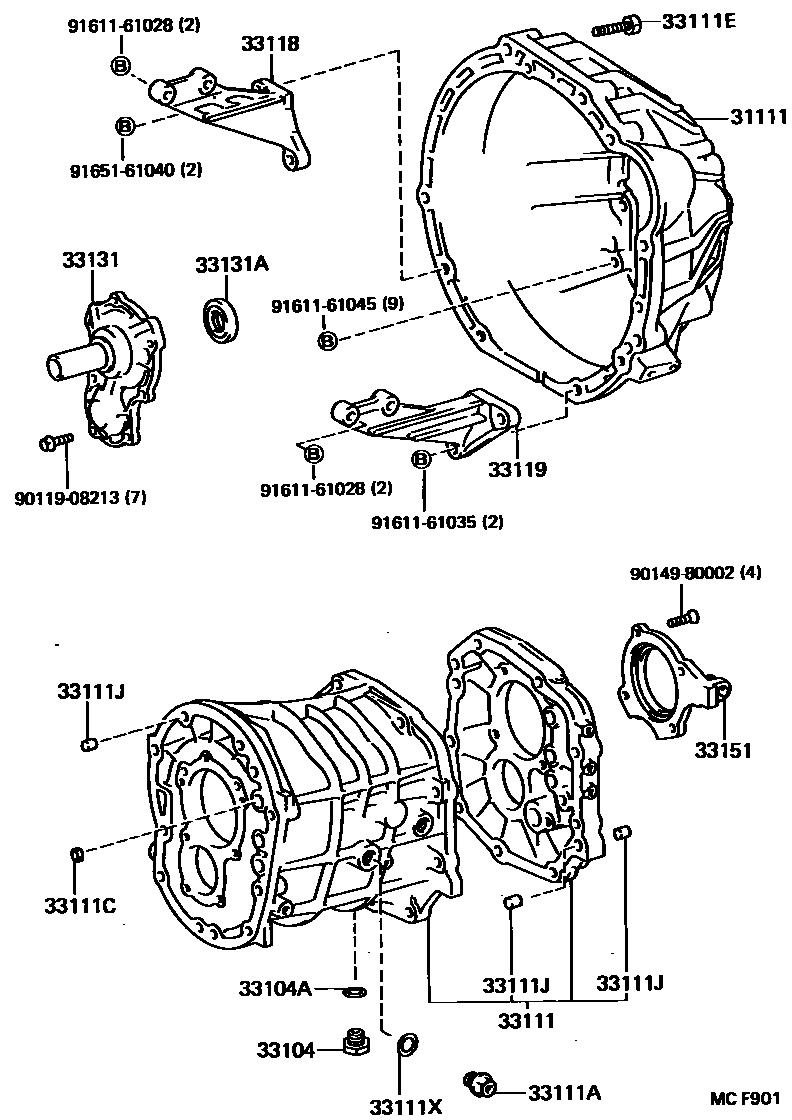

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1W57 0002 1W57 0003 1W57 0004 1W57 0005 1W55 0006 1W55 0007 1W55 0008 1W55

31111HOUSING, CLUTCH

main31111-20171iRX7#..5F198810-199302

main31111-20230iYX72198812-199205

main31111-22091iMX75..GL198812-199205

main31111-22130iGX71..5F198812-199205

main31111-22131iGX71..5F199004-199107

sub31111-22130

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iGX71,MX75,RX7#,YX72..5F198810-199302

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iGX71,MX75,RX7#,YX72..5F198810-199302

33111CASE, MANUAL TRANSMISSION

main33101-22031iGX71,MX75,RX7#,YX72..5F198810-198904

sub33101-22032

main33101-22032iGX71,MX75,RX7#,YX72..5F198904-199108

sub33101-30070

sub33242-30080

main33101-30070iGX71,MX75,RX7#,YX72..5F199108-199302

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iGX71,MX75,RX7#,YX72..5F198810-199302

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iGX71,MX75,RX7#,YX72..5F198810-199108

OD=14

main90331-14004iGX71,MX75,RX7#,YX72..5F199108-199111

OD=14,OD=14

main90331-17004iGX71,MX75,RX7#,YX72..5F199108-199111

OD=17,OD=17

33111EBOLT(FOR TRANSMISSION CASE & ENGINE SETTING)

main90119-10019iMX75..GL198812-199205

main90119-12168iYX72198812-199205

main91619-61250iGX71,RX7#..5F198810-199302

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iRX72..5F198810-199302

L=16,OD=12

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iRX72..5F198810-199302

33118PLATE, STIFFENER, RH(MTM)

main33118-22030iRX7#..5F198810-199302

main33118-22051iGX71..5F198812-199205

main33118-22060iMX75..GL198812-199205

main33118-28010iYX72198812-199205

33119PLATE, STIFFENER, LH(MTM)

main33119-22022iRX7#..5F198810-199302

main33119-22030iMX75..GL198812-199205

main33119-22042iGX71..5F198812-199205

main33119-28010iYX72198812-199205

33131RETAINER, BEARING, FRONT(MTM)

main33131-22021iGX71,MX75,RX7#,YX72..5F198810-199111

main33131-30080iRX72..5F199111-199302

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iGX71,MX75,RX7#,YX72..5F199111-199302

main90311-30115iGX71,MX75,RX7#,YX72..5F198810-199111

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iGX71,MX75,RX7#,YX72..5F198810-199111

main33107-30020iGX71,MX75,RX7#,YX72..5F199111-199302

9011908213

main90119-08213

9014980002

main90149-80002

9161161028

main91611-61028

9161161035

main91611-61035

9161161045

main91611-61045

9165161040

main91651-61040

20 parts on this diagram · 8 diagrams in section
