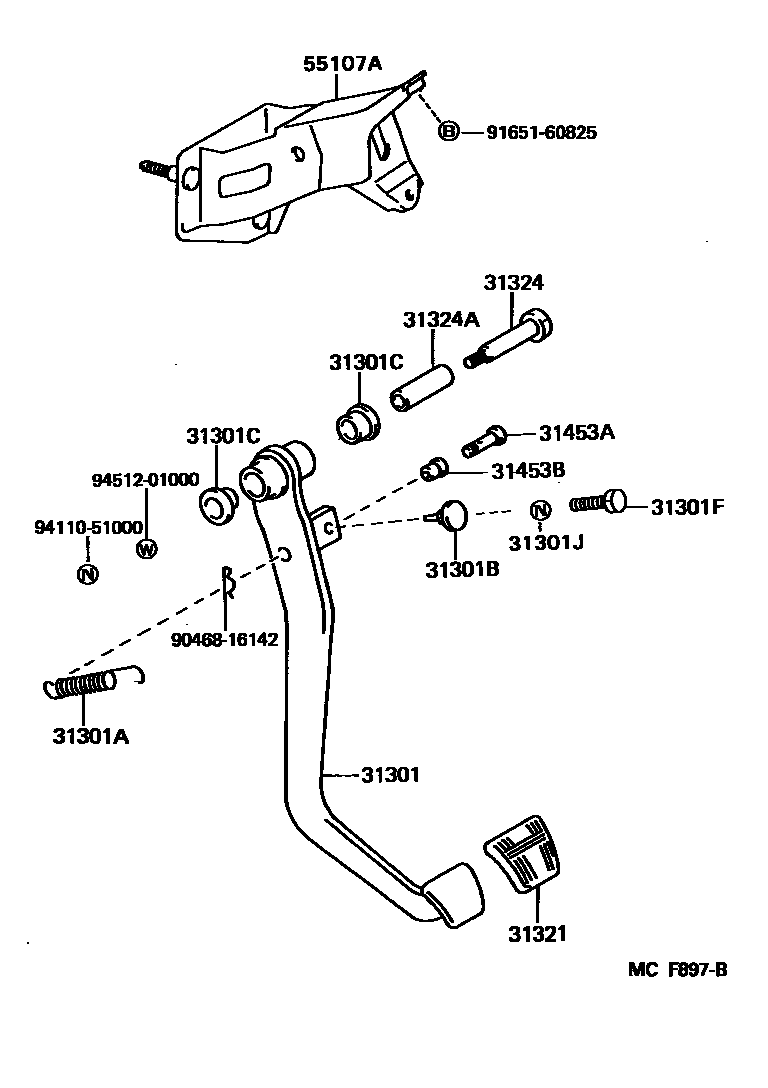

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-22150iRX72..LHD..5F198810-199302

main31301-22160iGX71,RX7#,YX72..RHD..5F198810-199302

main31310-22040iMX75..GL198812-199205

31301ASPRING(FOR CLUTCH PEDAL)

main90507-12011iGX71,RX7#,YX72..5F198810-199302

main90508-35022iMX75..GL198812-199205

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iGX71,MX75,RX7#,YX72..5F198810-199302

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iGX71,RX7#,YX72..5F198810-199302

main90386-13192iMX75..GL198812-199205

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iGX71,RX7#,YX72..5F198810-199302

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-41000iGX71,RX7#,YX72..5F198810-199302

31321PAD, CLUTCH PEDAL

main31321-14020iGX71,MX75,RX7#,YX72..5F198810-199302

31324SHAFT, CLUTCH PEDAL

main90101-10039iGX71,MX75,RX7#,YX72..5F198810-199302

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iGX71,MX75,RX7#,YX72..5F198810-199302

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iMX75..GL198812-199205

L=23.5

main90249-08018iGX71,RX7#,YX72..5F198810-199302

L=29.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iGX71,MX75,RX7#,YX72..5F198810-199302

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-22140iGX71,RX7#,YX72..RHD..5F198810-199302

main55107-22150iRX72..LHD..5F198810-199302

main55107-22160iMX75..GL198812-199205

9046816142

main90468-16142

9165160825

main91651-60825

9411051000

main94110-51000

9451201000

main94512-01000

16 parts on this diagram · 4 diagrams in section
