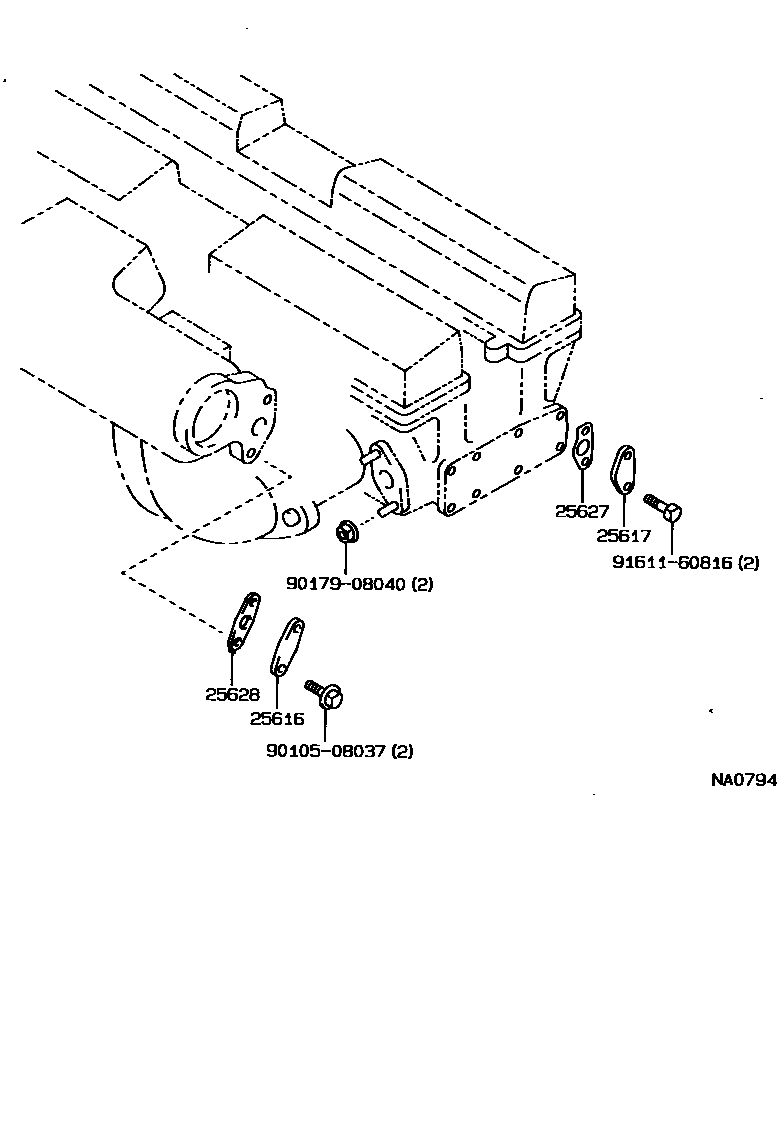

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25616PLATE, HOLE COVER(FOR EGR PIPE)

main25617-42010i7MGE..MX75198812-199205

25617PLATE, EGR HOLE COVER

main25615-43020i7MGE..MX75198812-199205

25627GASKET, EGR VALVE

main25627-42040i7MGE..MX75198912-199205

25628GASKET, EGR INLET

main25628-35030i22R..RX72..4FC199004-199302

main25628-38010i22R..RX72..4FC198810-199004

sub25628-35030

main25628-42010i7MGE..MX75198812-198908

sub25628-42020

main25628-42020i7MGE..MX75198908-199205

9010508037

main90105-08037

9017908040

main90179-08040

9161160816

main91611-60816

7 parts on this diagram · 2 diagrams in section
