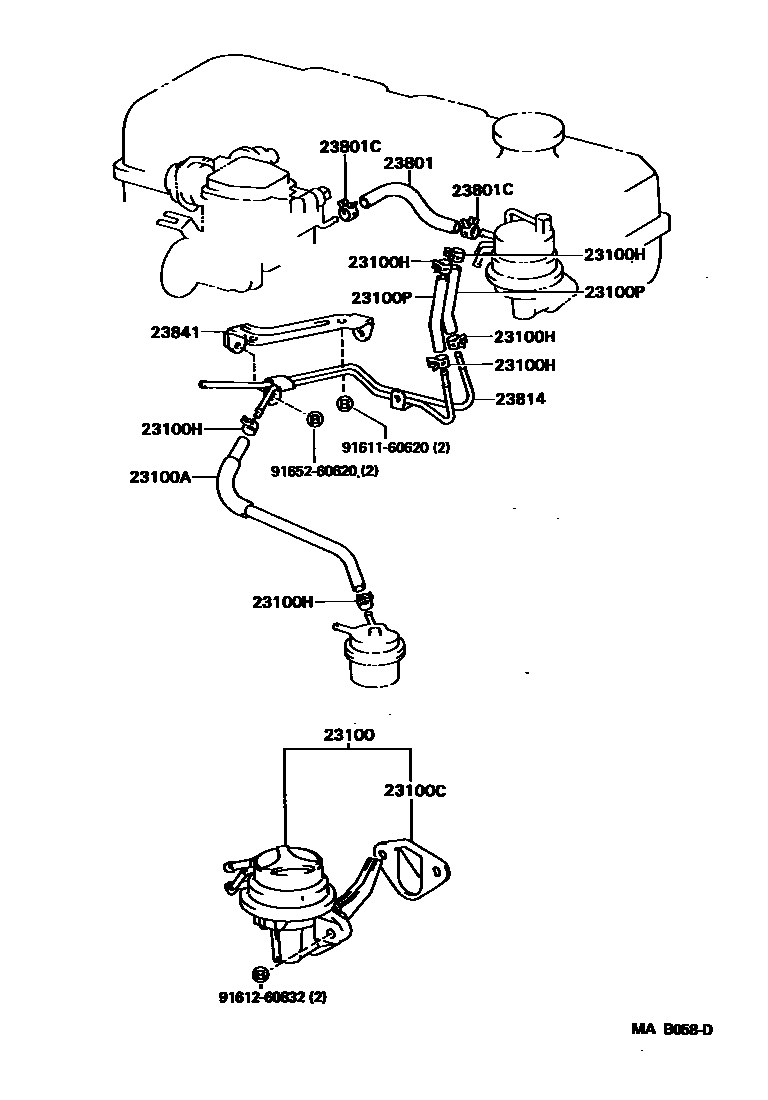

FUEL PUMP & PIPE

0001 1 0002 1

23100PUMP ASSY, FUEL

main23100-39336i22R..RX7#¥11,300198810-199302

main23100-73021i3Y..YX72¥9,800198812-199205

23100AHOSE, FUEL

main90445-12160i3Y..YX72¥710198812-199205

sub95333-06040¥730

main90447-12082i22R..RX7#¥850198810-199302

sub90447-12058¥860

23100CINSULATOR, FUEL PUMP

main90923-06008i3Y..YX72¥380198812-199002

sub90923-06010¥570

sub90923-06014¥900

main90923-06010i22R..RX7#¥570198810-199302

main90923-06014i3Y..YX72¥900199002-199205

23100HCLIP(FOR FUEL HOSE)

main96132-30600i3Y..YX72¥200198812-199205

sub96132-51100¥120

main96132-41100i22R..RX7#..SA¥160199008-199205

sub96132-51100¥120

main96132-41100i22R..RX7#¥160198810-199008

FILTER TO PIPE

sub96132-51100¥120

main96132-41100i22R..RX7#¥160198810-199302

FUEL PUMP TO PIPE

sub96132-51100¥120

23100PHOSE(FOR FUEL PUMP TO FUEL TUBE)

main95333-06020i22R..RX7#¥480198810-199302

sub95337-06020¥570

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-71011i3Y..YX72¥3,230198812-199205

main95333-06020i22R..RX7#¥480198810-199302

L=200

sub95337-06020¥570

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600i3Y..YX72¥200198812-199205

sub96132-51100¥120

main96132-41100i22R..RX7#¥160198810-199302

sub96132-51100¥120

23814PIPE, FUEL DELIVERY

main23814-37040i22R..RX7#¥3,310198810-199302

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-35050i22R..RX7#¥640198810-199302

9161160620

main91611-60620¥90

9161260832

main91612-60832¥140

9165260620

main91652-60620¥110

12 parts on this diagram · 2 diagrams in section
