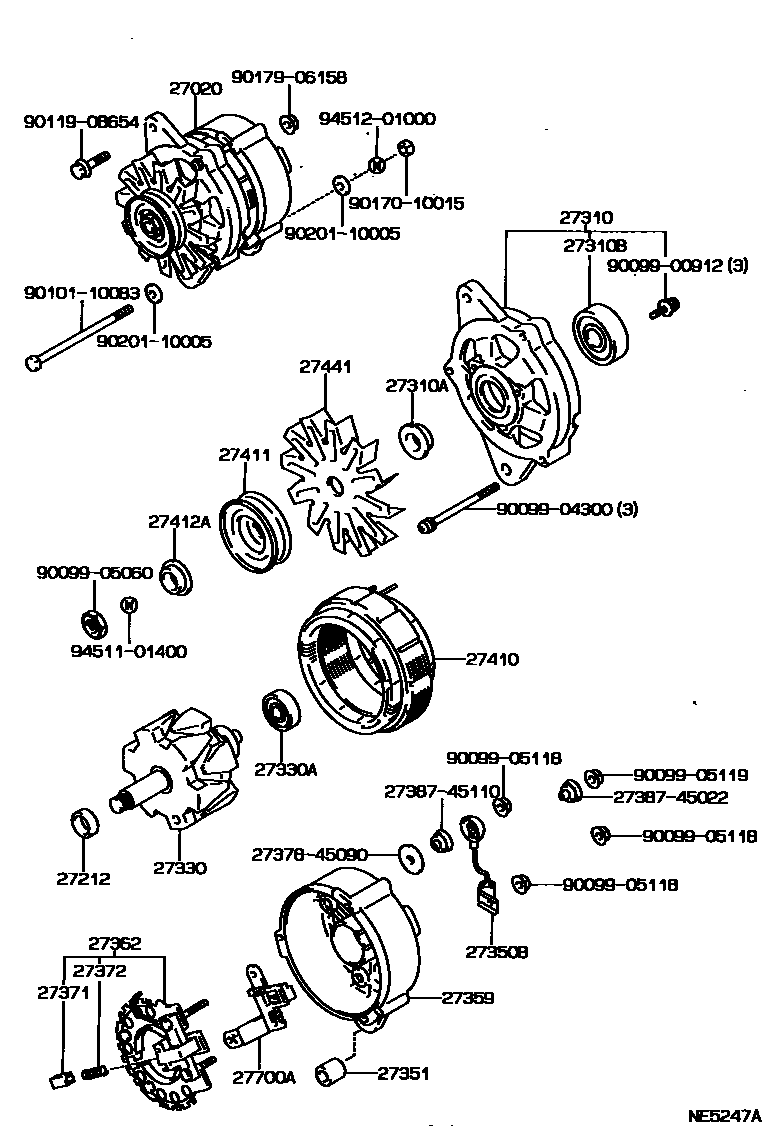

ALTERNATOR

0001 112V 60A 0002 112V 65A 0003 112V 55A 0004 112V 70A 0005 112V 80A 0006 112V 80A

27020ALTERNATOR ASSY

main27020-72010i3Y..YX72198812-199205

12V 55A

main27060-34040i22R..RX7#198810-198906

12V 65A

main27060-35080i22R..RX7#198906-199302

12V 65A

sub27060-34040

sub82989-22030

main27060-42030i7MGE..MX75198812-199205

12V 80A

main27060-70270i1GFE..GX71..5F198812-199205

12V 70A

main27060-70290i1GFE..GX71..4FC198812-199205

12V 80A

sub27060-70291

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27412-16040i3Y..YX72198812-199205

main27412-45070i22R..RX7#198810-198906

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-35020i22R..RX7#198810-198906

main27310-35150i22R..RX7#198906-199302

sub27060-34H00

main27310-42010i7MGE..MX75;1GFE..GX71..4FC198812-199101

main27310-70100i1GFE..GX71..5F198812-199205

main27310-72041i3Y..YX72198812-199205

main27310-74110i7MGE..MX75;1GFE..GX71..4FC199008-199205

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-15150i3Y..YX72198812-199205

main27412-31040i22R..RX7#198810-198906

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i22R..RX7#198810-198906

main90099-10142i3Y..YX72198812-199205

sub90099-10223

main90099-10160i7MGE..MX75;1GFE..GX71..4FC198812-199101

sub90099-10219

main90099-10178i1GFE..GX71..5F198812-199205

main90099-10192i7MGE..MX75;1GFE..GX71..4FC199008-199205

27330ROTOR ASSY, ALTERNATOR

main27330-35150i22R..RX7#198906-199302

main27330-42010i7MGE..MX75198812-199012

sub27330-76030

main27330-43040i22R..RX7#198810-198906

main27330-63010i3Y..YX72198812-199205

main27330-72101i1GFE..GX71..5F198812-199205

main27330-76030i7MGE..MX75;1GFE..GX71..4FC198812-199205

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i22R..RX7#198810-199205

main90099-10140i1GFE,7MGE..GX71,MX75198812-199205

27350BCONDENSER, ALTERNATOR

main90099-52065i22R..RX7#198810-199205

sub90099-52034

main90099-52095i22R..RX7#198906-199302

main90099-52096i1GFE..GX71..4FC198812-198901

main90099-52100i1GFE..GX71..5F198812-199205

main90099-52101i1GFE..GX71..4FC198901-199205

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i3Y..YX72198810-199205

27359FRAME, ALTERNATOR RECTIFIER END

main27359-28030i22R..RX7#198810-198906

main27359-35150i22R..RX7#198906-199302

sub27060-34H00

main27359-42010i7MGE..MX75;1GFE..GX71..4FC198812-199205

sub27359-74330

main27359-70260i1GFE..GX71..5F198812-199205

main27359-72010i3Y..YX72198812-199205

27362RECTIFIER ASSY, W/BRUSH

main27362-43040i22R..RX7#198810-198906

main27362-63011i3Y..YX72198812-199205

27371BRUSH, ALTERNATOR

main27371-31011i22R..RX7#198810-199205

main27371-63020i1GFE..GX71..5F198812-199205

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011i22R..RX7#198810-199205

main27372-63020i1GFE..GX71..5F198812-199205

sub27372-87501

27410STATOR ASSY, ALTERNATOR

main27410-35150i22R..RX7#198906-199302

main27410-43040i22R..RX7#198810-199205

27411PULLEY, ALTERNATOR

main27411-26111i22R..RX7#198810-198906

main27411-35150i22R..RX7#198906-199302

main27411-42010i1GFE..GX71..4FC198812-199205

main27411-42030i7MGE..MX75198812-199205

main27411-70200i1GFE..GX71..5F198812-199205

main27411-72040i3Y..YX72198812-199205

27412ACOLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)

main27412-35150i22R..RX7#198906-199302

main27412-44031i22R..RX7#198810-198906

27441FAN, ALTERNATOR

main27441-34111i22R..RX7#198810-198906

main27441-35150i22R..RX7#198906-199302

main27441-63030i3Y..YX72198812-199205

27700AREGULATOR ASSY, GENERATOR

main27700-16010i1GFE,7MGE..GX71,MX75198812-199205

sub27700-66020

main27700-35050i22R..RX7#198810-199302

sub27060-34H02

sub82989-22030

main27700-43010i22R..RX7#198810-198906

main27700-63010i3Y..YX72198812-199205

main27700-76020i1GFE..GX71..5F199109-199205

sub27700-66020

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110083

main90101-10083

9011908654

main90119-08654

9017010015

main90170-10015

9017906158

main90179-06158

9020110005

main90201-10005

9451101400

main94511-01400

9451201000

main94512-01000

33 parts on this diagram · 6 diagrams in section
