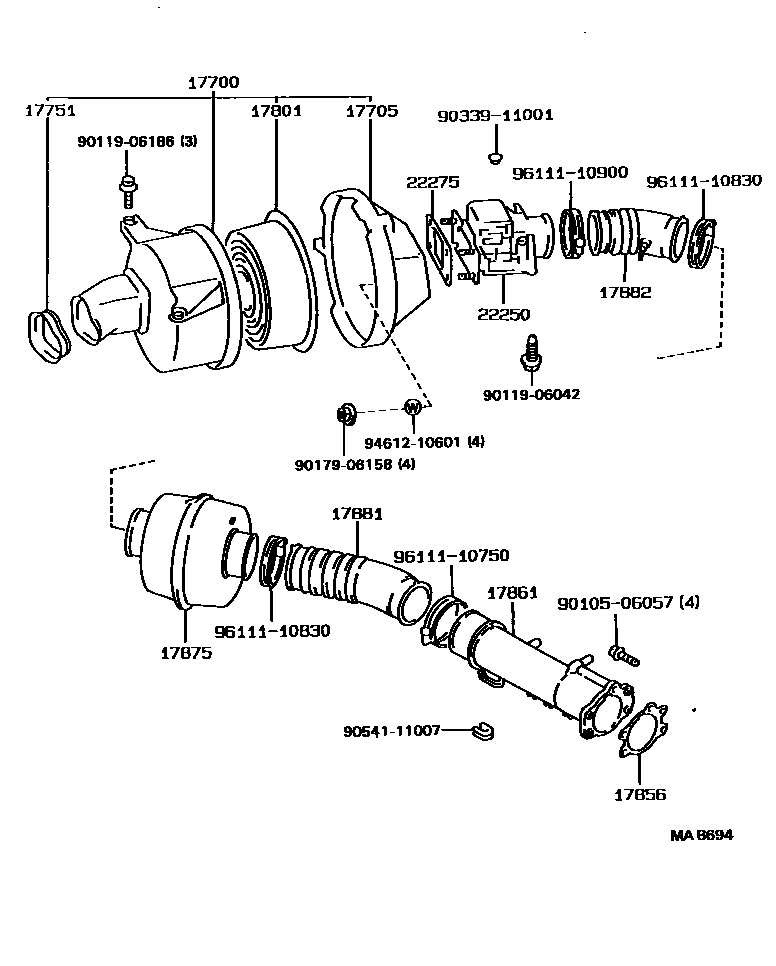

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17700CLEANER ASSY, AIR

main17700-35390i22R..RX7#198810-199302

main17700-35400i22R..RX7#..SA199003-199205

main17700-35400i22R..RX72..GEN198810-199302

W(HOT AIR INTAKE)

main17700-70031i1GFE..GX71198812-199205

main17700-72060i3Y..YX72198812-199003

main17700-72140i3Y..YX72199003-199205

17705CAP SUB-ASSY, AIR CLEANER

main17705-35180i22R..RX7#198810-199302

main17705-70030i1GFE..GX71198812-199205

sub17705-73120

main17705-71020i3Y..YX72198812-199205

sub17705-73080

17751INLET, AIR CLEANER, NO.1

main17751-70011i1GFE..GX71198812-199205

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-34070i3Y..YX72198812-199205

sub17801-34060

main17801-37010i22R..RX7#198810-199302

sub17801-41090

main17801-70020i1GFE..GX71198812-199205

17856GASKET, AIR INTAKE FLANGE

main17856-70020i1GFE..GX71198812-199205

17861CONNECTOR, INTAKE AIR

main17861-42030i7MGE..MX75198812-199205

main17861-70020i1GFE..GX71198812-199205

17875PIPE, INTAKE AIR CONNECTOR

main17875-42060i7MGE..MX75198812-199205

main17875-70140i1GFE..GX71198812-199205

17881HOSE, AIR CLEANER, NO.1

main17881-16210i3Y..YX72199007-199205

main17881-35060i22R..RX72..GEN198810-199302

main17881-42060i7MGE..MX75198812-199205

main17881-70200i1GFE..GX71198812-199205

main17881-74040i3Y..YX72199003-199007

17882HOSE, AIR CLEANER, NO.2

main17880-37022i22R..RX7#..GEN,SA198810-199302

main17881-54250i3Y..YX72198812-199205

main17882-70140i1GFE..GX71198812-199205

22250METER ASSY, INTAKE AIR FLOW

main22250-42090i7MGE..MX75198812-199205

main22250-70250i1GFE..GX71198812-199205

22275GASKET, AIR FLOW METER

main22275-43010i1GFE..GX71198812-199205

9010506057

main90105-06057

9011906042

main90119-06042

9011906186

main90119-06186

9017906158

main90179-06158

9033911001

main90339-11001

9054111007

main90541-11007

9461210601

main94612-10601

9611110750

main96111-10750

9611110830

main96111-10830

9611110900

main96111-10900

21 parts on this diagram · 6 diagrams in section
