VENTILATION HOSE

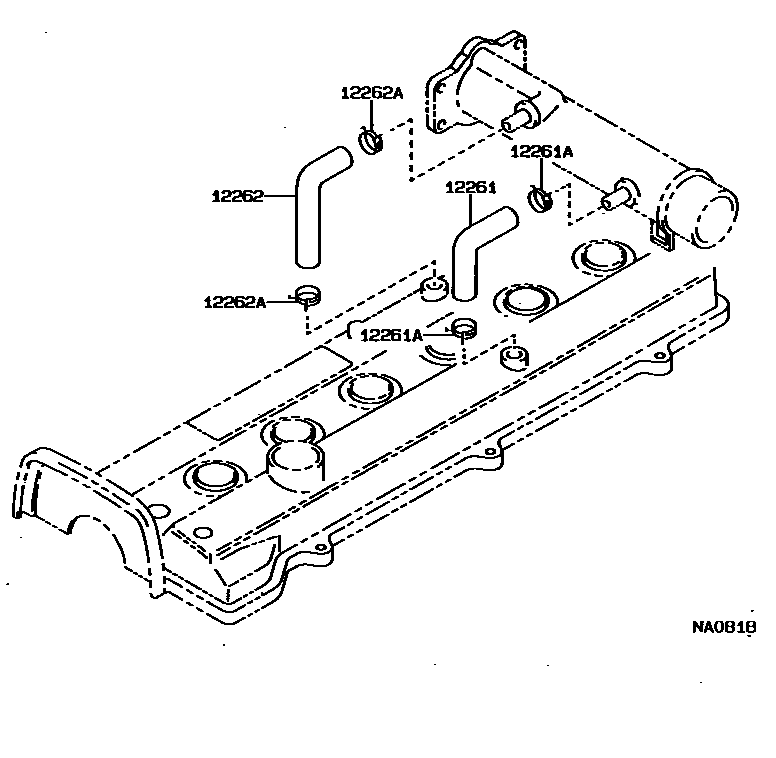

Parts diagram
12261HOSE, VENTILATION
main12261-42010i198812-199205
main12261-70040i198812-199205
main12261-72020i198812-199205
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-16035i198812-199205
main90467-17006i198812-199205
sub90467-17011
12262HOSE, VENTILATION, NO.2
main12261-37020i198810-199302
main12261-38011i199008-199302
main12261-42010i198812-199205
main12262-70020i198812-199205
main12262-72020i198812-199205
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-15006i198810-199302
main90467-16035i198812-199205
main90467-17006i198812-199205
sub90467-17011

4 parts on this diagram · 4 diagrams in section
