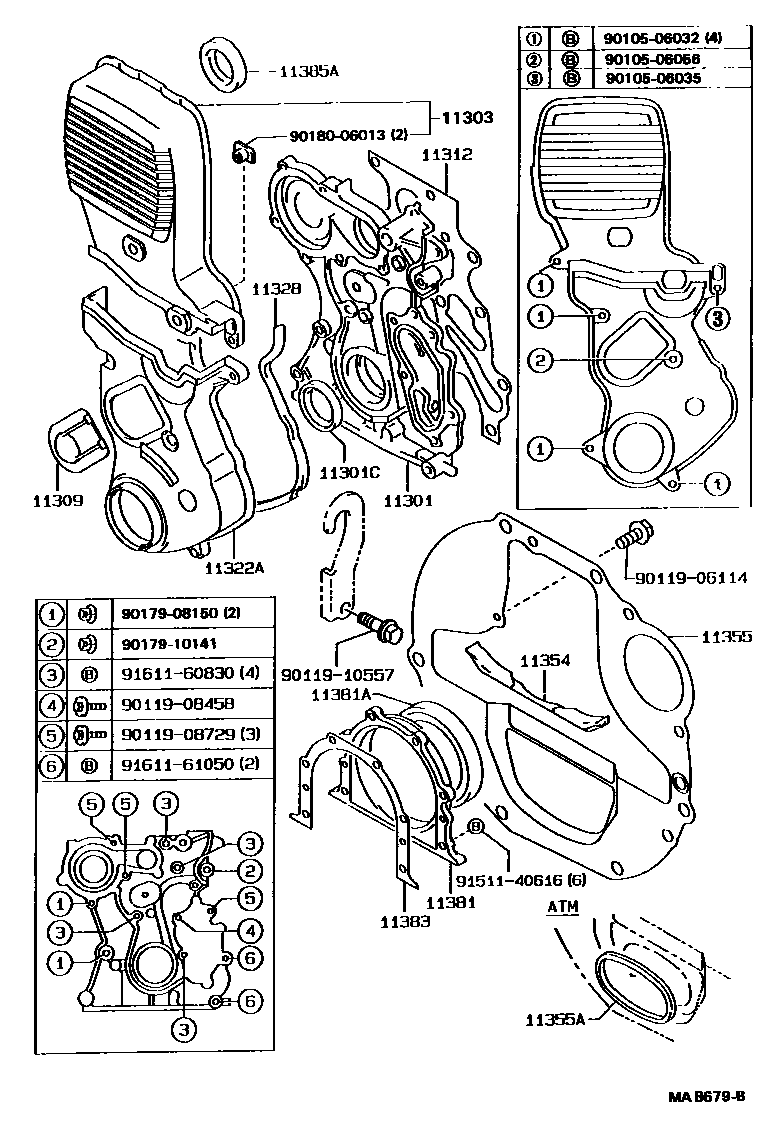

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-42010i7MGE..MX75198812-199205

main11301-71010i3Y..YX72198812-199205

main11311-70040i1GFE..GX71198812-199010

sub11311-79035

main11311-79035i1GFE..GX71199010-199205

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42003i7MGE..MX75198812-199205

sub90311-42026

main90311-45003i1GFE..GX71198812-199205

sub90311-45015

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-70020i1GFE..GX71198812-199205

11309COVER SUB-ASSY, TIMING BELT, NO.4

main11325-42010i7MGE..MX75198812-199205

main11325-88300i1GFE..GX71198812-199205

11312GASKET, FRONT END PLATE

main11312-42010i7MGE..MX75198912-199205

NO.1

main11312-43010i7MGE..MX75198812-198912

NO.1

sub11312-42010

main11312-70013i1GFE..GX71198812-199009

sub11312-70014

main11312-70014i1GFE..GX71199009-199205

sub11312-70020

main11313-42010i7MGE..MX75198812-198912

NO.2

sub11313-42020

main11313-42020i7MGE..MX75198912-199205

NO.2

11322ACOVER, TIMING BELT, NO.1

main11302-70040i1GFE..GX71198812-199205

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-35030i22R..RX7#198810-199302

main11328-42010i7MGE..MX75198812-199205

main11328-70030i1GFE..GX71198812-199205

main11328-71011i3Y..YX72198812-198912

sub11328-71012

main11328-71012i3Y..YX72198912-199205

11354SEAL, FLYWHEEL HOUSING DUST

main11354-70010i1GFE..GX71198812-199205

main11354-71010i3Y..YX72198812-199205

11355PLATE, REAR END

main11355-35010i22R..RX7#..5F198810-199302

main11355-35030i22R..RX72..4FC198810-199302

main11355-41010i7MGE..MX75198812-199205

main11355-70010i1GFE..GX71..5F198812-199205

main11355-70020i1GFE..GX71..4FC198812-199205

main11355-71010i3Y..YX72198812-199205

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01128i22R..RX73..4FC198812-199205

main90950-01307i1GFE..GX71..4FC198812-199205

main90950-01458i22R..RX72..4FC198810-199302

11381RETAINER, ENGINE REAR OIL SEAL

main11381-38010i22R..RX7#198810-199302

main11381-43010i7MGE..MX75198812-199205

main11381-70010i1GFE..GX71198812-199205

main11381-71010i3Y..YX72198812-199205

11381ASEAL, ENGINE REAR OIL

main90311-75004i1GFE..GX71198812-198908

sub90311-75006

main90311-75007i1GFE..GX71198908-199205

main90311-80001i7MGE..MX75198812-199205

main90311-80003i3Y..YX72198812-199004

sub90311-80009

main90311-80004i22R..RX7#198810-199006

sub90311-80010

main90311-80009i3Y..YX72199004-199205

sub90311-80014

main90311-80010i22R..RX7#199006-199302

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i3Y..YX72198812-198912

main11383-35020i22R..RX7#198810-199302

main11383-41010i7MGE..MX75198812-199205

main11383-70010i1GFE..GX71198812-199009

sub11383-70011

main11383-70011i1GFE..GX71199009-199205

main11383-71010i3Y..YX72198912-199205

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-35008i1GFE..GX71198812-199003

sub90311-35022

main90311-35013i1GFE..GX71199003-199205

ARS

sub90311-35022

main90311-35022i1GFE..GX71199003-199205

NOK

sub90311-35040

9010506032

main90105-06032

9010506035

main90105-06035

9010506056

main90105-06056

9011906114

main90119-06114

9011908458

main90119-08458

9011908729

main90119-08729

9011910557

main90119-10557

9017908150

main90179-08150

9017910141

main90179-10141

9018006013

main90180-06013

9151140616

main91511-40616

9161160830

main91611-60830

9161161050

main91611-61050

27 parts on this diagram · 5 diagrams in section
