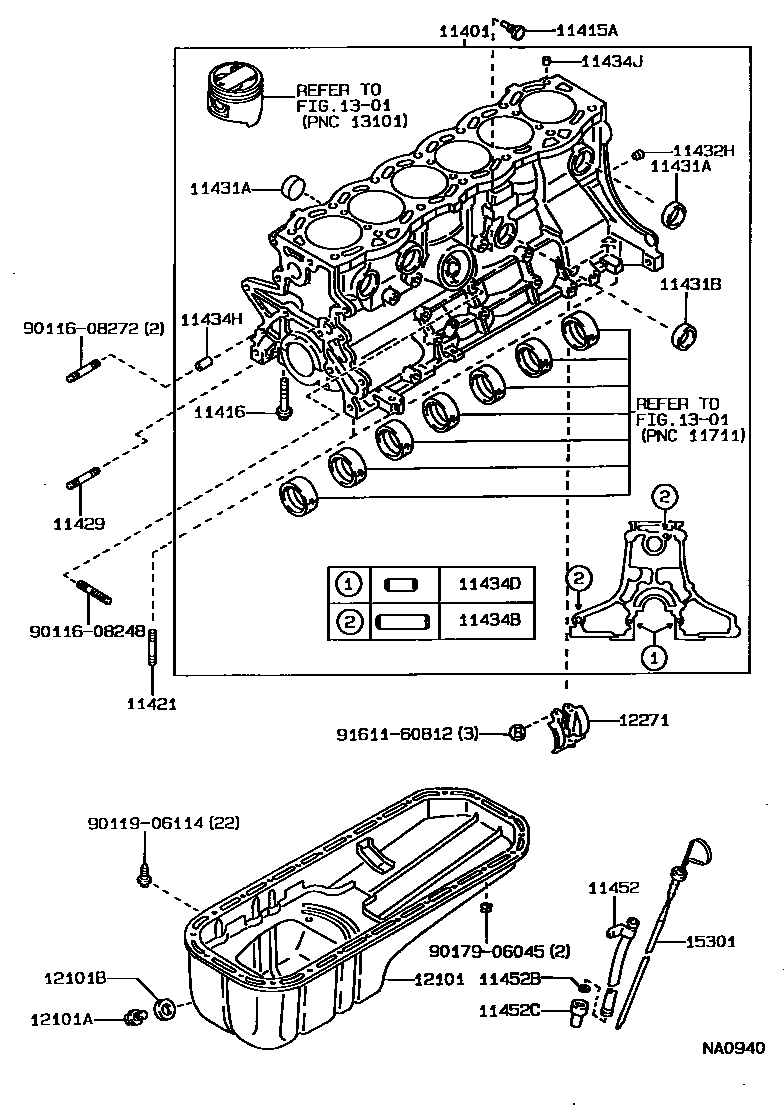

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-39447i22R..RX72..GEN,V198810-199302

main11401-49615i7MGE..MX75198812-198903

sub11401-49616

main11401-49616i7MGE..MX75198903-199205

main11401-79086i3Y..YX72198812-198908

sub11401-79088

main11401-79088i3Y..YX72198908-199205

sub11401-79735

main11401-79415i1GFE..GX71198812-199205

sub11401-80020

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main96431-53828i3Y..YX72198810-199302

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main96431-23814i1GFE..GX71198812-199205

main96432-23814i22R..RX7#198810-199302

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10028i1GFE..GX71198812-199205

main90910-02032i3Y..YX72198812-199205

main90910-02042i22R..RX7#198810-199302

main90910-02047i7MGE..MX75198812-199205

11421BOLT, STUD(FOR OIL PAN)

main90116-06014i1GFE..GX71198812-199205

main90116-08208i7MGE..MX75198812-199205

main92122-40814i22R..RX7#198810-199302

11429BOLT, STUD(FOR ALTERNATOR BRACKET)

main90116-10051i1GFE..GX71198812-199205

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-01800i3Y..YX72198812-199205

main96411-43500i1GFE..GX71198812-199205

main96411-44000i7MGE..MX75198812-199205

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43500i3Y..YX72198812-199205

main96411-44000i1GFE..GX71198810-199302

main96412-43500i7MGE..MX75198812-199205

11432HPLUG, W/HEAD TAPER SCREW, NO.5

main90344-53015i1GFE..GX71198812-199205

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-08120i3Y..YX72198812-199205

L=18,OD=8

main90250-10113i3Y..YX72198810-199302

L=22,OD=10

main90250-10192i7MGE..MX75198812-199205

L=22,OD=10

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i1GFE..GX71198812-198904

L=14,OD=6

main90250-06015i1GFE..GX71198904-199205

L=11,OD=6

main90250-10192i7MGE..MX75198812-199205

L=22,OD=10

11434HPIN, RING (FOR TIMING BELT COVER SET)

main90253-11021i1GFE..GX71198812-199205

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017i1GFE..GX71198812-199205

main90253-15016i3Y..YX72198812-199205

11452GUIDE, OIL LEVEL GAGE

main11452-35010i22R..RX7#198810-199302

main11452-40010i3Y..YX72198812-199205

main11452-42020i7MGE..MX75198812-199205

main11452-70020i1GFE..GX71198812-199205

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1GFE..GX71198812-199205

11452CUNION(FOR OIL LEVEL GAGE GUIDE)

main90405-10016i1GFE..GX71198812-199205

12101PAN SUB-ASSY, OIL

main12101-35011i22R..RX7#198810-199302

main12101-42040i7MGE..MX75198812-199205

main12101-70070i1GFE..GX71198812-199205

main12101-71011i3Y..YX72198812-199101

sub12101-72010

main12101-72010i3Y..YX72199101-199205

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3Y..YX72198810-199205

main90341-12026i1GFE..GX71199111-199302

sub90341-12012

main90341-18089i7MGE..MX75198812-199205

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12019i1GFE..GX71198812-199111

sub90430-12028

main90430-12021i22R..RX7#198810-199004

sub90430-12028

main90430-12027i22R..RX7#199004-199207

sub90430-12031

main90430-12028i1GFE..GX71199111-199207

sub90430-12031

main90430-18013i7MGE..MX75198812-199007

sub90430-18023

main90430-18024i7MGE..MX75199007-199106

sub90430-18026

main90430-18026i7MGE..MX75199106

12271SCREEN, OIL SEPARATOR

main12271-70010i1GFE..GX71198812-199205

1301

15301GAGE SUB-ASSY, OIL LEVEL

main15301-35020i22R..RX7#198810-199302

main15301-42030i7MGE..MX75198812-199205

main15301-70050i1GFE..GX71198812-199205

main15301-72010i3Y..YX72198812-199205

9011608248

main90116-08248

9011608272

main90116-08272

9011906114

main90119-06114

9017906045

main90179-06045

9161160812

main91611-60812

27 parts on this diagram · 4 diagrams in section
