TELEPHONE & MAYDAY

82817RPROTECTOR, WIRING HARNESS, NO.16

main82817-12400iGZG50199810-200004

86011LFILTER, NOISE

main90980-05281iGZG50199810-200004

86705CORD SUB-ASSY, TELEPHONE ANTENNA

main86705-40060iGZG50199810

86719BRACKET, TELEPHONE

main86719-50070iGZG50199810-200004

86719ABRACKET, TELEPHONE NO.1

main86719-50080iGZG50199810-200004

86719BBRACKET, TELEPHONE NO.2

main86719-50100iGZG50199810-200004

86719CBRACKET, TELEPHONE NO.3

main86719-50110iGZG50199810-200004

86723WIRE, MOBILEPHONE

main86723-40060iGZG50199810-200004

86723AWIRE, MOBILEPHONE

main86723-50100iGZG50199810-200004

827113H630WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H630

9011906122

main90119-06122

9017906100

main90179-06100

9321954010

main93219-54010

9321954030

main93219-54030

9324954010

main93249-54010

9331116010

main93311-16010

9413060440

main94130-60440

9413060600

main94130-60600

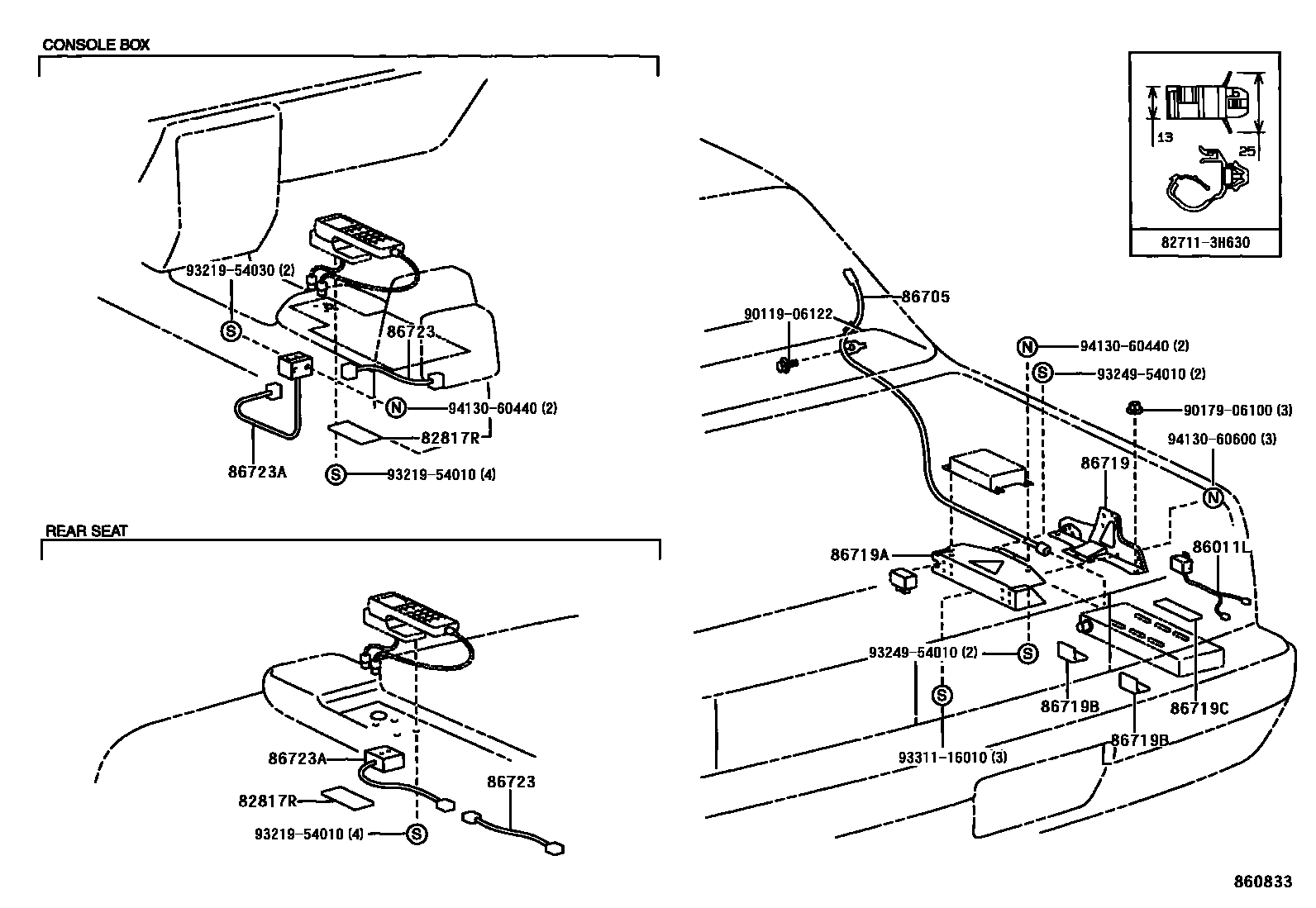

18 parts on this diagram · 1 diagram in section
