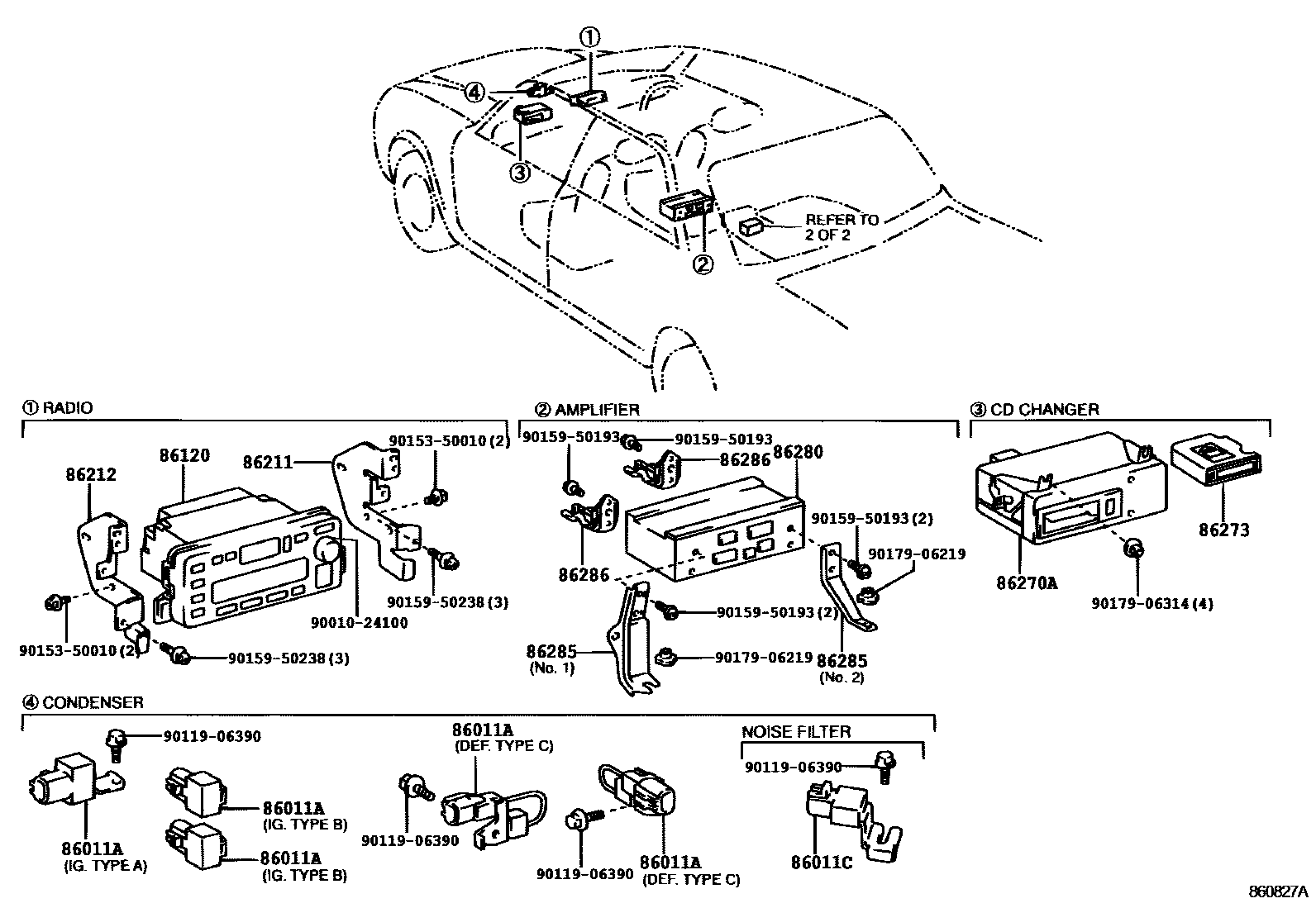

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04077iGZG50199810

TYPE A:REFER ILLUST.

main90980-04083iGZG50199810

TYPE B:REFER ILLUST.

main90980-04125iGZG50199810

TYPE C:REFER ILLUST.

86011CFILTER, NOISE

main90084-98014iGZG50199810

86120RECEIVER ASSY, RADIO

main86120-40120iGZG50199810

86211BRACKET, RADIO, NO.1

main86211-40050iGZG50199810

86212BRACKET, RADIO, NO.2

main86212-40050iGZG50199810

86270ADISC PLAYER ASSY

main86270-40040iGZG50199810

86273MAGAZINE, DISC PLAYER

main86273-60030iGZG50199810

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-40110iGZG50199810

86285BRACKET, AMPLIFIER, NO.1

main86285-40020iGZG50199810

NO.1

main86285-40030iGZG50199810

NO.2

86286BRACKET, AMPLIFIER, NO.2

main86286-40010iGZG50199810

9001024100

main90010-24100

9011906390

main90119-06390

9015350010

main90153-50010

9015950193

main90159-50193

9015950238

main90159-50238

9017906219

main90179-06219

9017906314

main90179-06314

17 parts on this diagram · 2 diagrams in section
