ANTI-THEFT DEVICE

8121

8420

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-40010iGZG50..LHD199810

main89780-40020iGZG50..RHD199810

89782COIL, TRANSPONDER KEY

main89782-30010iGZG50..RHD199810

main89782-40010iGZG50..LHD199810

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-60060iGZG50199810

89785ATRANSMITTER, TRANSPONDER CUT KEY MASTER

main89785-60050iGZG50199810

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60090iGZG50199810

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-60080iGZG50199810

9331315012

main93313-15012

9356855014

main93568-55014

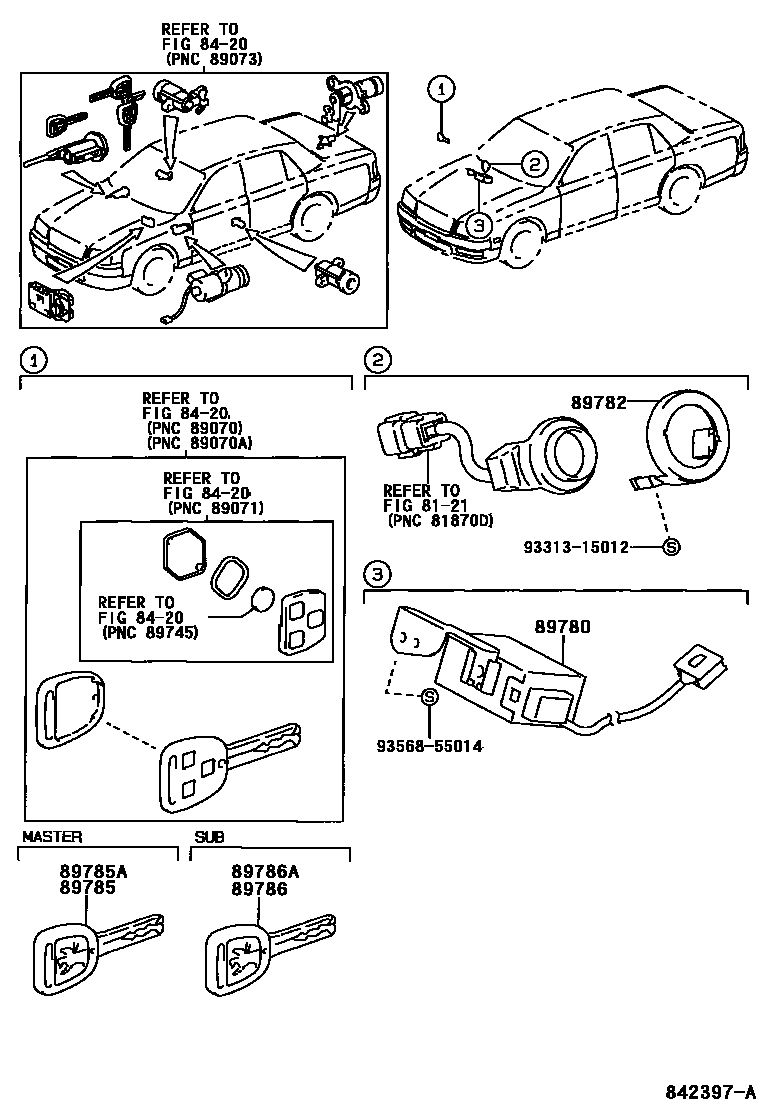

10 parts on this diagram · 1 diagram in section
