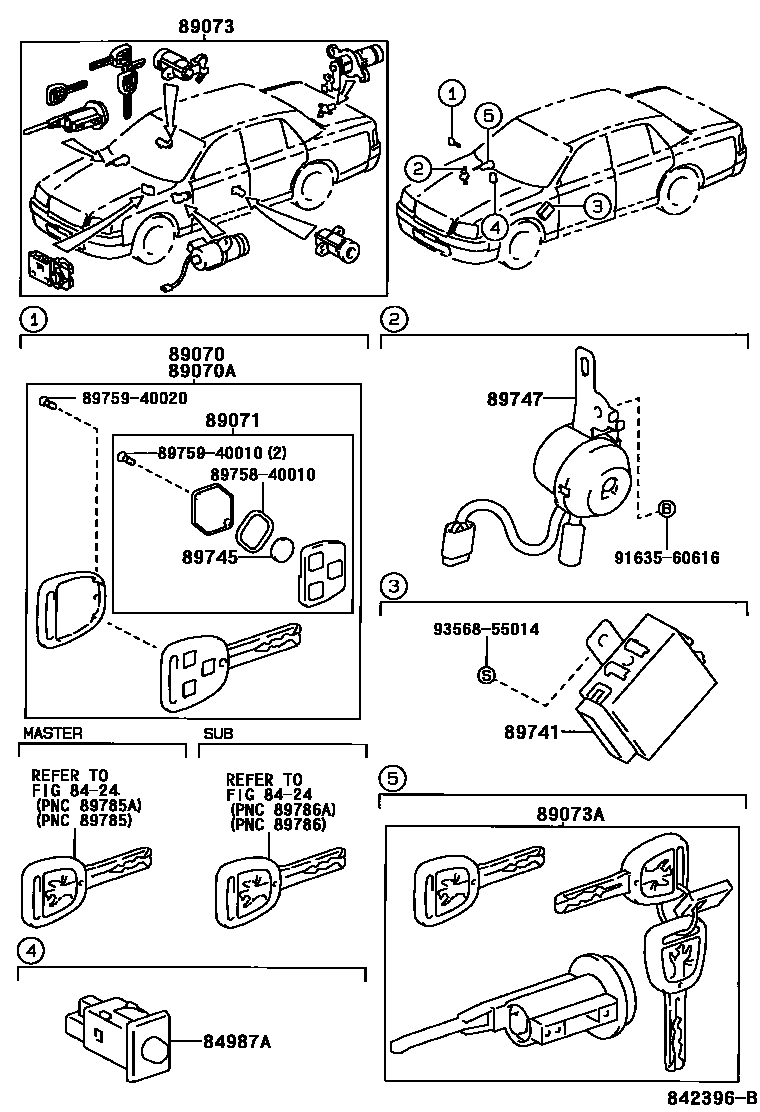

WIRELESS DOOR LOCK
8424
84987ASWITCH, KEYLESS ENTRY CANCEL
89070TRANSMITTER ASSY, DOOR CONTROL
sub89070-40111
sub89070-40111
CHINA SPEC OR HONG KONG SPEC
SINGAPORE SPEC
89070ATRANSMITTER, DOOR CONTROL (CUT KEY)
sub89070-40171
sub89070-40171
CHINA SPEC OR HONG KONG SPEC
SINGAPORE SPEC
89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
CHINA SPEC OR HONG KONG SPEC
SINGAPORE SPEC
89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
sub89073-40081
sub89073-40081
BRUNEI,CHINA,HONG KONG,SINGAPORE OR THAILAND SPEC
89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
sub89073-40021
sub89073-40021
BRUNEI,CHINA,HONG KONG,SINGAPORE OR THAILAND SPEC
89745BATTERY, TRANSMITTER
89747BUZZER, WIRELESS DOOR LOCK
8975840010PACKING, DOOR CONTROL TRANSMITTER
8975940010SCREW, DOOR CONTROL TRANSMITTER
8975940020SCREW, DOOR CONTROL TRANSMITTER
9163560616
9356855014
15 parts on this diagram · 1 diagram in section
