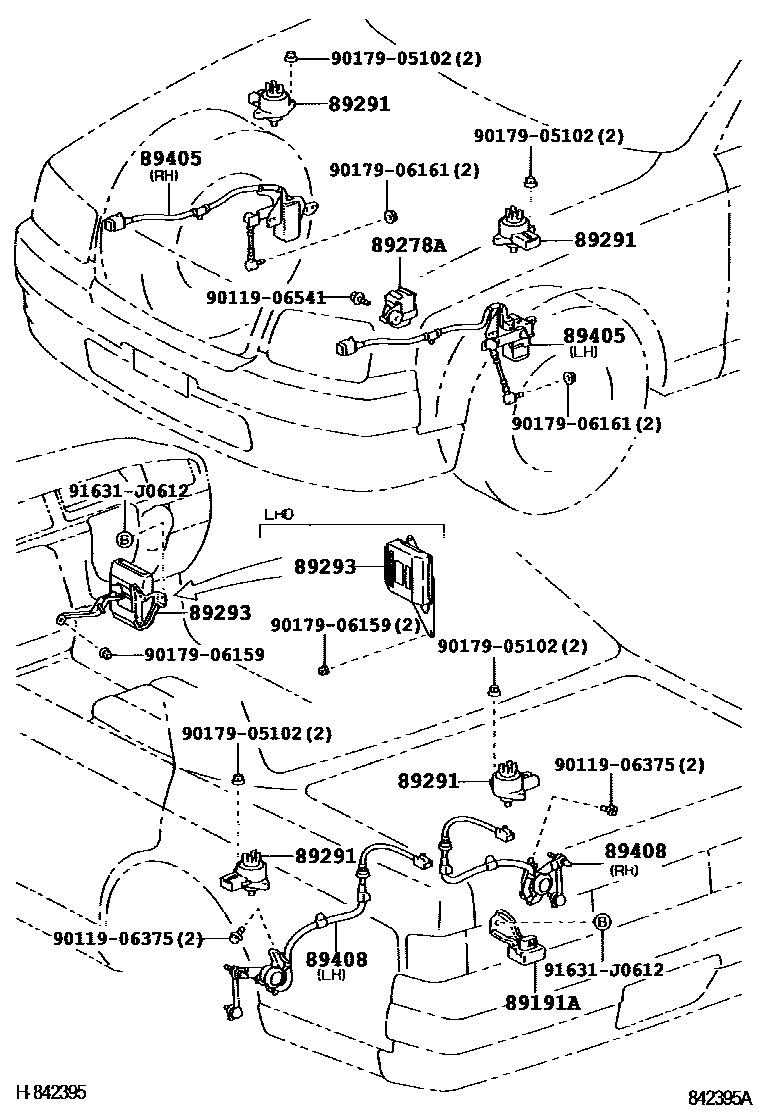

ELECTRONIC MODULATED SUSPENSION

89191ASENSOR, ACCELERATION

main89191-50010iGZG50¥41,100199810

89278ARELAY, HEIGHT CONTROL

main89278-40020iGZG50¥6,300199810

89291ACTUATOR, SUSPENSION CONTROL, FRONT

main89291-50050iGZG50¥18,400199810

89293COMPUTER, SUSPENSION CONTROL

main89293-40010iGZG50..RHD¥147,000199810

main89293-40020iGZG50..LHD¥179,000199810

89405SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT

main89405-40010iGZG50¥41,800199810

RH

main89406-40010iGZG50¥41,800199810

LH

89408SENSOR SUB-ASSY, HEIGHT CONTROL, REAR

main89407-40012iGZG50¥41,700199810

RH

main89408-40012iGZG50¥41,700199810

LH

9011906375

main90119-06375¥70

9011906541

main90119-06541¥160

9017905102

main90179-05102¥90

9017906159

main90179-06159¥70

9017906161

main90179-06161¥70

91631J0612

main91631-J0612¥110

12 parts on this diagram · 1 diagram in section
