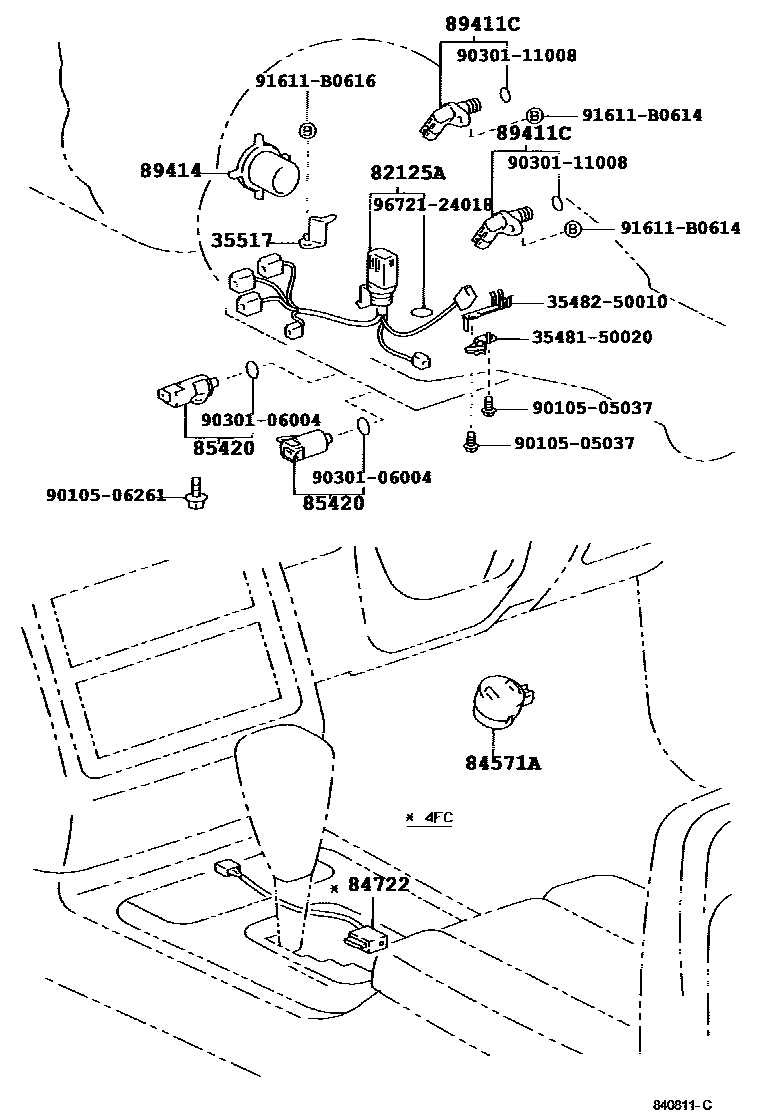

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

35517PLATE, TRANSMISSION WIRE LOCK

main35517-50010iGZG50199810

82125AWIRE, TRANSMISSION

main82125-40050iGZG50199810-201701

84571ASWITCH, KICK DOWN

main84571-50030iGZG50199810-201701

84722SWITCH, TRANSMISSION CONTROL

main84722-50060iGZG50..RHD199810-201701

main84722-50070iGZG50..LHD199810-201701

85420SOLENOID ASSY, TRANSMISSION

main85420-50020iGZG50199810

89411CSENSOR, SPEED

main89411-50010iGZG50199810-201701

89414ROTOR, SENSOR

main89414-30070iGZG50199810

3548150020BODY, GOVERNOR

main35481-50020

3548250010VALVE, GOVERNOR

main35482-50010

9010505037

main90105-05037

9010506261

main90105-06261

9030106004

main90301-06004

9030111008

main90301-11008

91611B0614

main91611-B0614

91611B0616

main91611-B0616

9672124018

main96721-24018

16 parts on this diagram · 1 diagram in section
