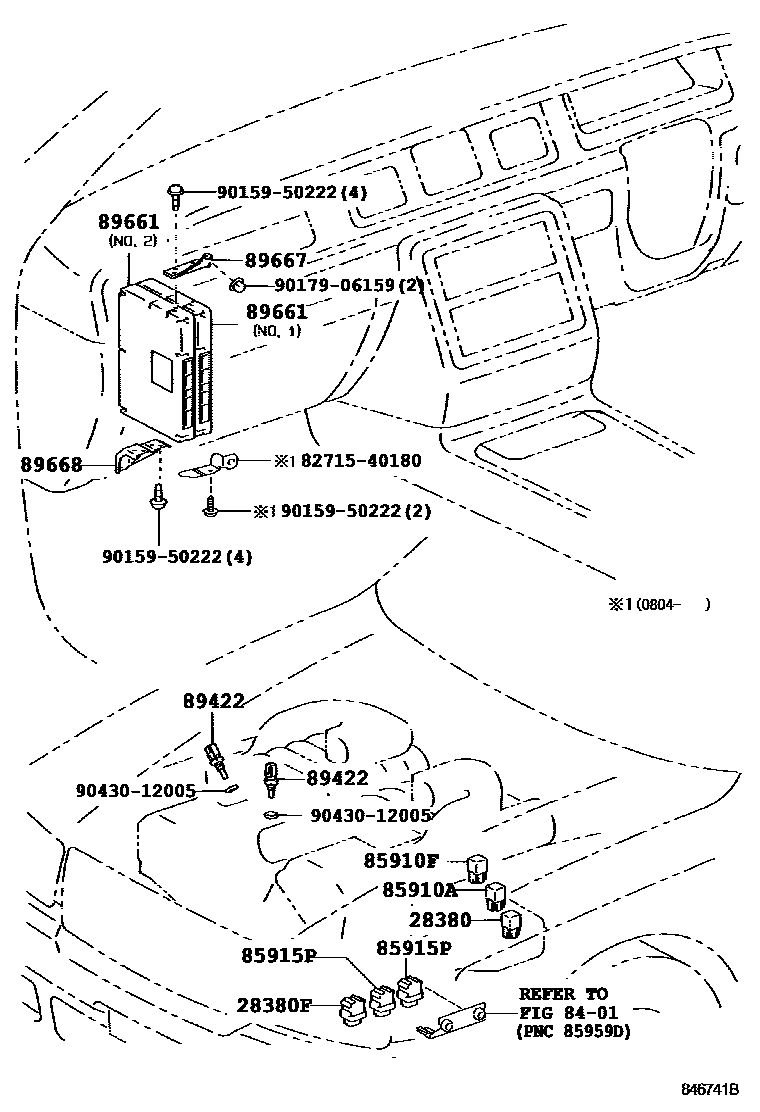

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28380RELAY ASSY, FUEL PUMP

main90987-03003i1GZFE..GZG50199810

28380FRELAY ASSY, FUEL PUMP SELECT

main28381-32010i1GZFE..GZG50199810

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02009iGZG50199810

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iGZG50199810

85915PRELAY, THROTTLE

main89633-50060iGZG50199810

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iGZG50199810-201701

89661COMPUTER, ENGINE CONTROL

main89661-40100iGZG50199810

NO.1

main89661-40110iGZG50199810

NO.2

main89661-40200iGZG50..RHD200112-200803

HONG KONG SPEC,NO.1

sub89661-40201

main89661-40201iGZG50..RHD200804

HONG KONG SPEC,NO.1

main89661-40210iGZG50..RHD200112-200803

HONG KONG SPEC,NO.2

sub89661-40211

main89661-40211iGZG50..RHD200804

HONG KONG SPEC,NO.2

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-40020iGZG50..RHD199810

main89667-40030iGZG50..LHD199810

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-40020iGZG50..RHD199810

main89668-40030iGZG50..LHD199810

8271540180BRACKET,WIRING HARNESS CLAMP

main82715-40180

9015950222

main90159-50222

9017906159

main90179-06159

9043012005

main90430-12005

14 parts on this diagram · 2 diagrams in section
