WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0002 1ENGINE ROOM WIRE 0003 1ENGINE WIRE 0004 1ENGINE WIRE 0005 1COWL WIRE 0006 1COWL WIRE 0007 1DOOR WIRE 0008 1ROOF & FLOOR & LUGGAGE WIRE 0009 1SEAT WIRE 0010 1CABLE BOND 0011 1CONNECTOR

82111WIRE, ENGINE ROOM MAIN

main82111-40151iGZG50..RHD199810

main82111-40170iGZG50..LHD199810

main82111-40190iGZG50..RHD200112

HONG KONG SPEC

82210CFUSIBLE LINK

main90982-08202iGZG50199810

60A,TERM.:MALE,YEL

main90982-08203iGZG50..LHD199810

80A,TERM.:MALE,BLK

main90982-08223iGZG50199810

30A,TERM.:MALE,PNK

main90982-08257iGZG50..LHD199810

40A,TERM.:MALE,GRN

main90982-08280iGZG50199810

30A,TERM.:FEMALE,PNK

main90982-08281iGZG50199810

40A,TERM.:FEMALE,GRN

main90982-08286iGZG50199810

140A,TERM.:MALE,RBR

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-5A790iGZG50199810

8401

827113F040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F040

8271150020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50020

8271540080BRACKET,WIRING HARNESS CLAMP

main82715-40080

9011906390

main90119-06390

9011906660

main90119-06660

9017908158

main90179-08158

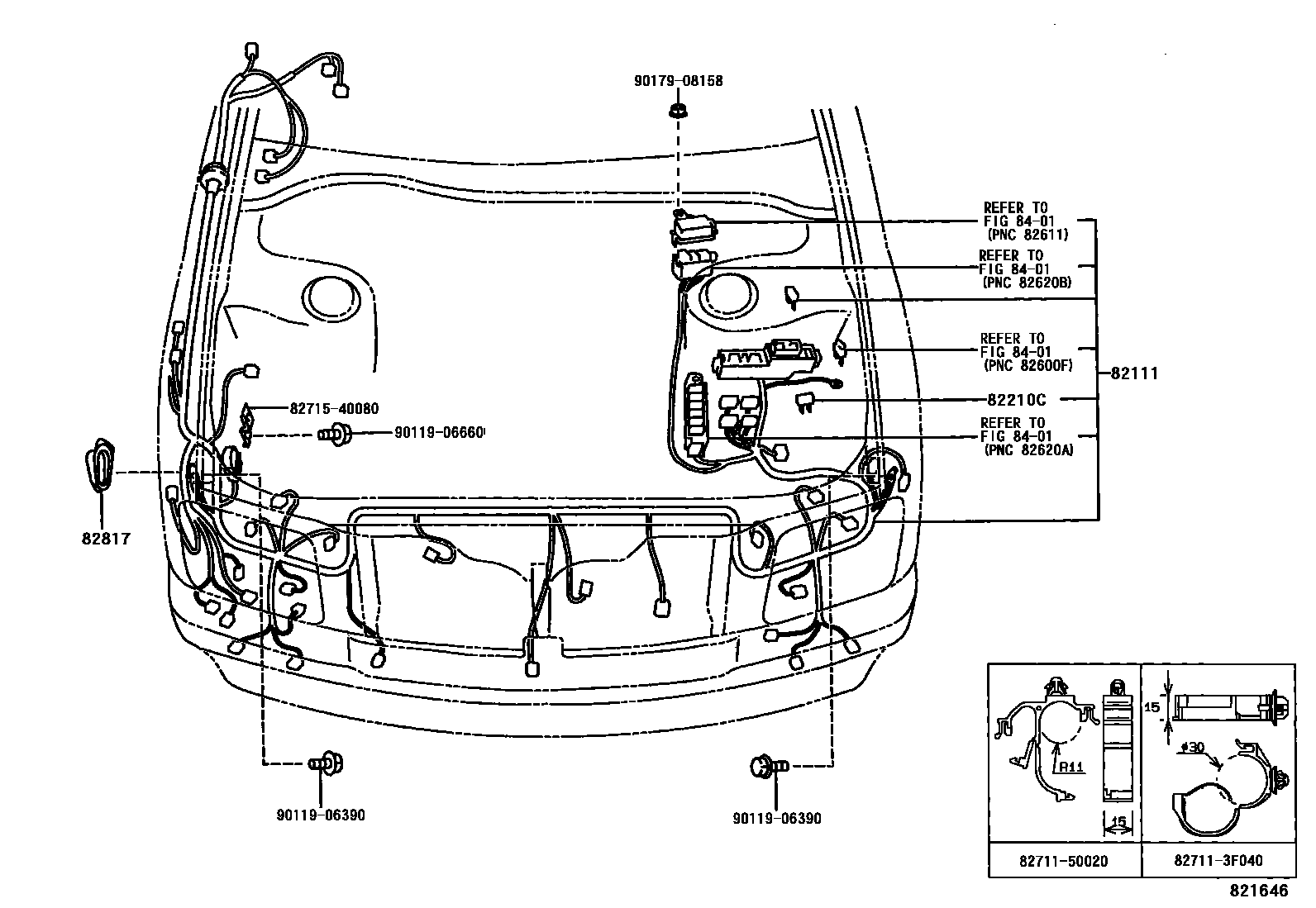

10 parts on this diagram · 11 diagrams in section
