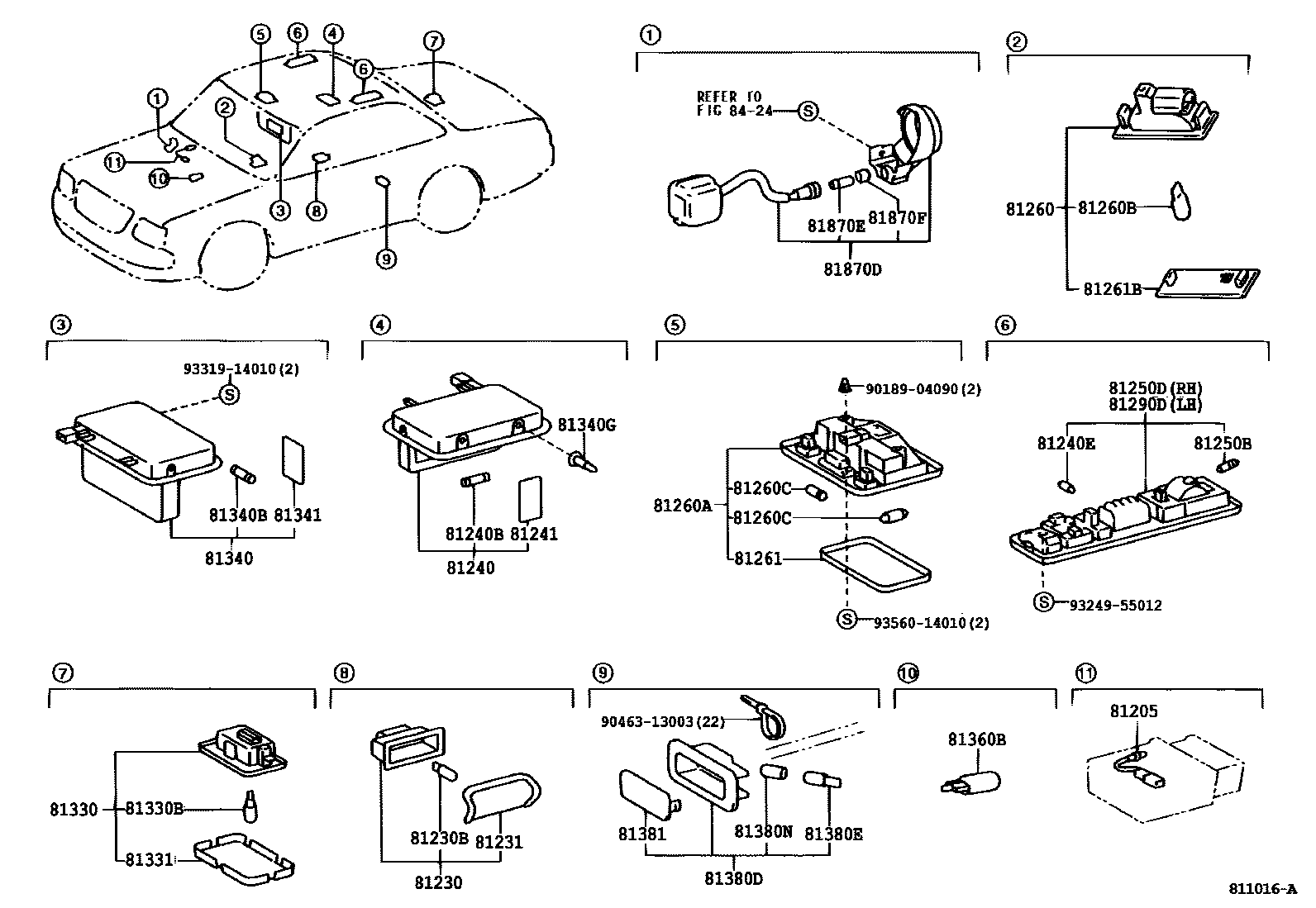

INTERIOR LAMP
81205LAMP SUB-ASSY, ASH RECEPTACLE
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81231LENS, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
LT. GRAY,TRIM1#,LH
ORCHID,TRIM4#,LH
LT. GRAY,TRIM1#,RH
ORCHID,TRIM4#,RH
81240BBULB, ROOM LAMP, NO.1
12V 3W
81240EBULB, ROOM LAMP, NO.2
12V 10W
81241LENS, ROOM LAMP, NO.1
81250BBULB, ROOM LAMP, NO.2
12V 10W
81250DLAMP ASSY, REAR ROOM, RH
LT.GRAY,TRIM1#
ORCHID,TRIM4#
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
LT.GRAY,TRIM1#
ORCHID,TRIM4#
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81261LENS AND COVER, MAP LAMP
81261BLENS,GLOVE BOX LAMP
81290DLAMP ASSY, REAR ROOM, LH
LT.GRAY,TRIM1#
ORCHID,TRIM4#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331LENS, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
LT.GRAY,TRIM1#,LH
ORCHID,TRIM4#,LH
LT.GRAY,TRIM1#,RH
ORCHID,TRIM4#,RH
81340BBULB (FOR VANITY LAMP)
12V 3W
81340GCLIP (FOR VANITY LAMP)
81341LENS, VANITY LAMP
81360BBULB, STEP OR SPOT LAMP
14V 1.4W
81380DLAMP ASSY, STEP
MD.GRAY,TRIM1#
ORCHID,TRIM4#
81380EBULB (FOR STEP LAMP)
81380NCAP, STEP LAMP
81381LENS, STEP LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
81870FCAP, KEY CYLINDER LAMP BULB
8424
9018904090
main90189-04090
9046313003
main90463-13003
9324955012
main93249-55012
9331914010
main93319-14010
9356014010
main93560-14010
38 parts on this diagram · 1 diagram in section
