REAR COMBINATION LAMP

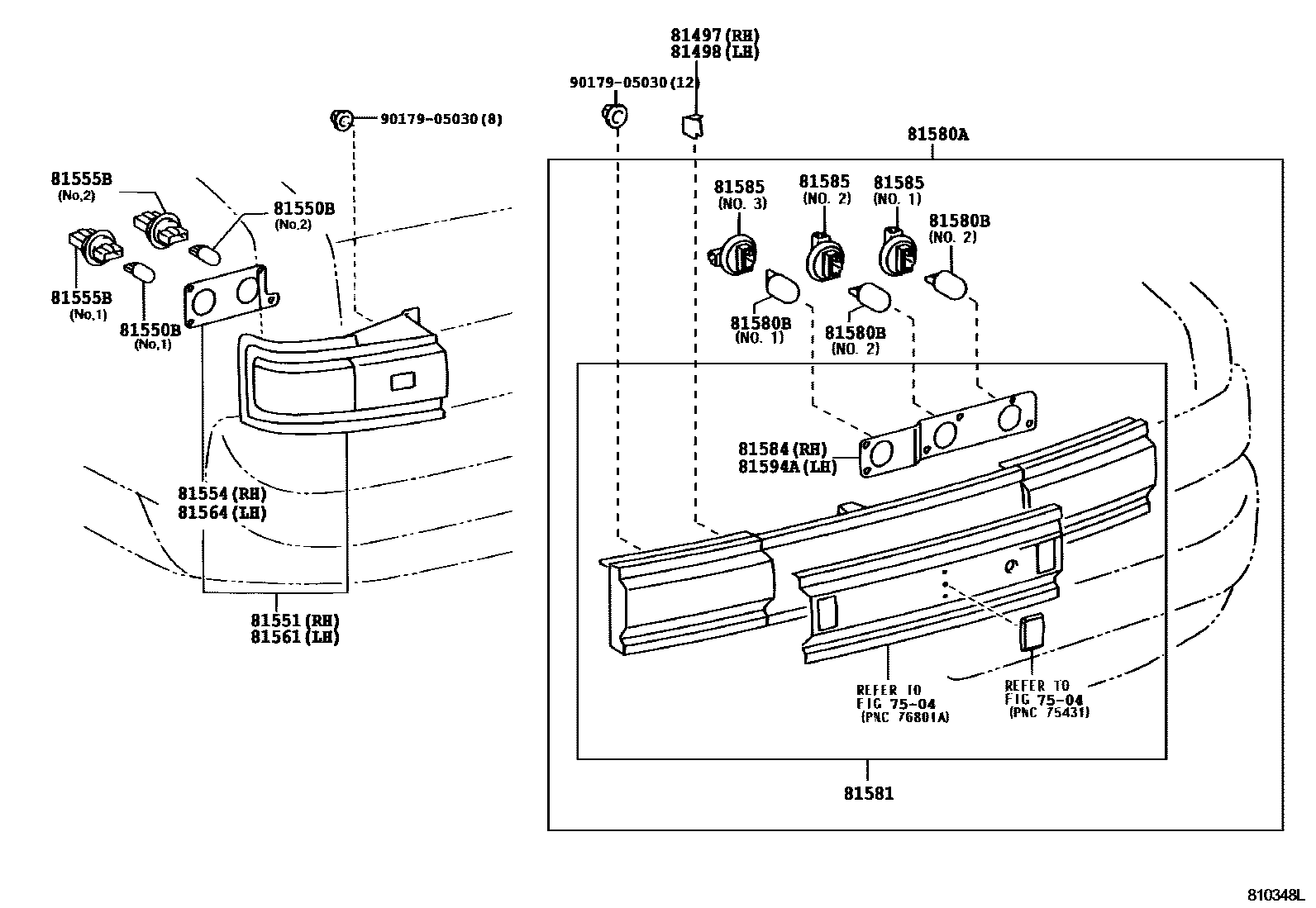

Parts diagram
7504
81497COVER, REAR COMBINATION LAMP, RH
main81497-40010i199810
81498COVER, REAR COMBINATION LAMP, LH
main81498-40010i199810
81550BBULB(FOR REAR COMBINATION LAMP)
main90981-13043i199810
12V 21W,NO.1
main90981-13044i199810
12V 21/5W,NO.2
81551LENS, REAR COMBINATION LAMP, RH
main81551-40040i199810-200801
BRUNEI OR HONG KONG OR THAILAND SPEC
sub81551-40041
main81551-40041i200801
BRUNEI OR HONG KONG OR THAILAND SPEC
main81551-40050i199810-200801
sub81551-40051
main81551-40051i200801
81554GASKET, REAR COMBINATION LAMP BODY, RH
main81554-40040i199810
81555BSOCKET PLUG, NO.1
main90075-60002i199810
NO.2
main90075-60003i199810
NO.1
81561LENS, REAR COMBINATION LAMP, LH
main81561-40040i199810-200801
BRUNEI OR HONG KONG OR THAILAND SPEC
sub81561-40041
main81561-40041i200801
BRUNEI OR HONG KONG OR THAILAND SPEC
main81561-40050i199810-200801
sub81561-40051
main81561-40051i200801
81564GASKET, REAR COMBINATION LAMP BODY, LH
main81554-40040i199810
81580ALAMP ASSY, REAR
main81580-40010i200112-200712
HONG KONG SPEC
sub81580-40011
main81580-40011i200801
HONG KONG SPEC
main81580-40020i199810-200712
BRUNEI OR HONG KONG OR THAILAND SPEC
sub81580-40021
main81580-40021i200801
BRUNEI OR HONG KONG OR THAILAND SPEC
main81580-40050i199810-200712
sub81580-40051
main81580-40051i200801
81580BBULB (FOR REAR LAMP)
main90981-13043i199810
12V 21W,NO.1
main90981-13044i199810
12V 21/5W,NO.2
81581LENS, REAR LAMP
main81581-40010i200112-200712
HONG KONG SPEC
sub81581-40011
main81581-40011i200801
HONG KONG SPEC
main81581-40020i199810-200712
BRUNEI OR HONG KONG OR THAILAND SPEC
sub81581-40021
main81581-40021i200801
BRUNEI OR HONG KONG OR THAILAND SPEC
main81581-40050i199810-200712
sub81581-40051
main81581-40051i200801
81584PACKING, REAR LAMP RH
main81584-40010i199810
81585SOCKET & WIRE, REAR LAMP
main81585-40010i199810
BRUNEI OR HONG KONG OR THAILAND SPEC,NO.1
main81585-40050i199810
NO.1
main81586-40010i199810
BRUNEI OR HONG KONG OR THAILAND SPEC,NO.2
main81586-40050i199810
NO.2
main81587-40010i199810
NO.3
81594AGASKET, REAR LAMP LH
main81584-40010i199810
9017905030
main90179-05030

16 parts on this diagram · 1 diagram in section
