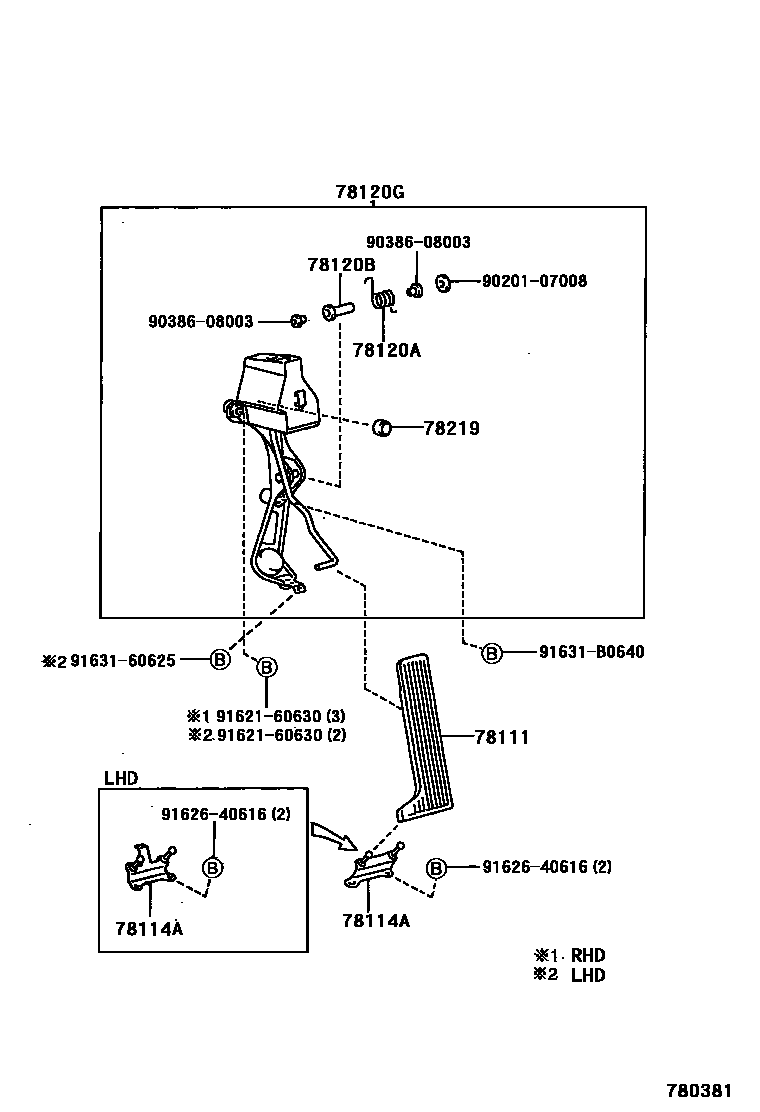

ACCELERATOR LINK

78111PEDAL, ACCELERATOR

main78111-30110iGZG50199810

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-40020iGZG50..RHD199810

main78114-40030iGZG50..LHD199810

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main90959-03144iGZG50199810

78120BBUSH (FOR ACCELERATOR LINK ROD)

main78118-40040iGZG50199810

78120GROD ASSY, ACCELERATOR PEDAL

main78010-40010iGZG50..RHD199810

sub78010-40030

main78010-40020iGZG50..LHD199810

78219CAP, ACCELERATOR PEDAL STOPPER BOLT

main78219-40010iGZG50199810

9020107008

main90201-07008

9038608003

main90386-08003

9162160630

main91621-60630

9162640616

main91626-40616

9163160625

main91631-60625

91631B0640

main91631-B0640

12 parts on this diagram · 1 diagram in section
