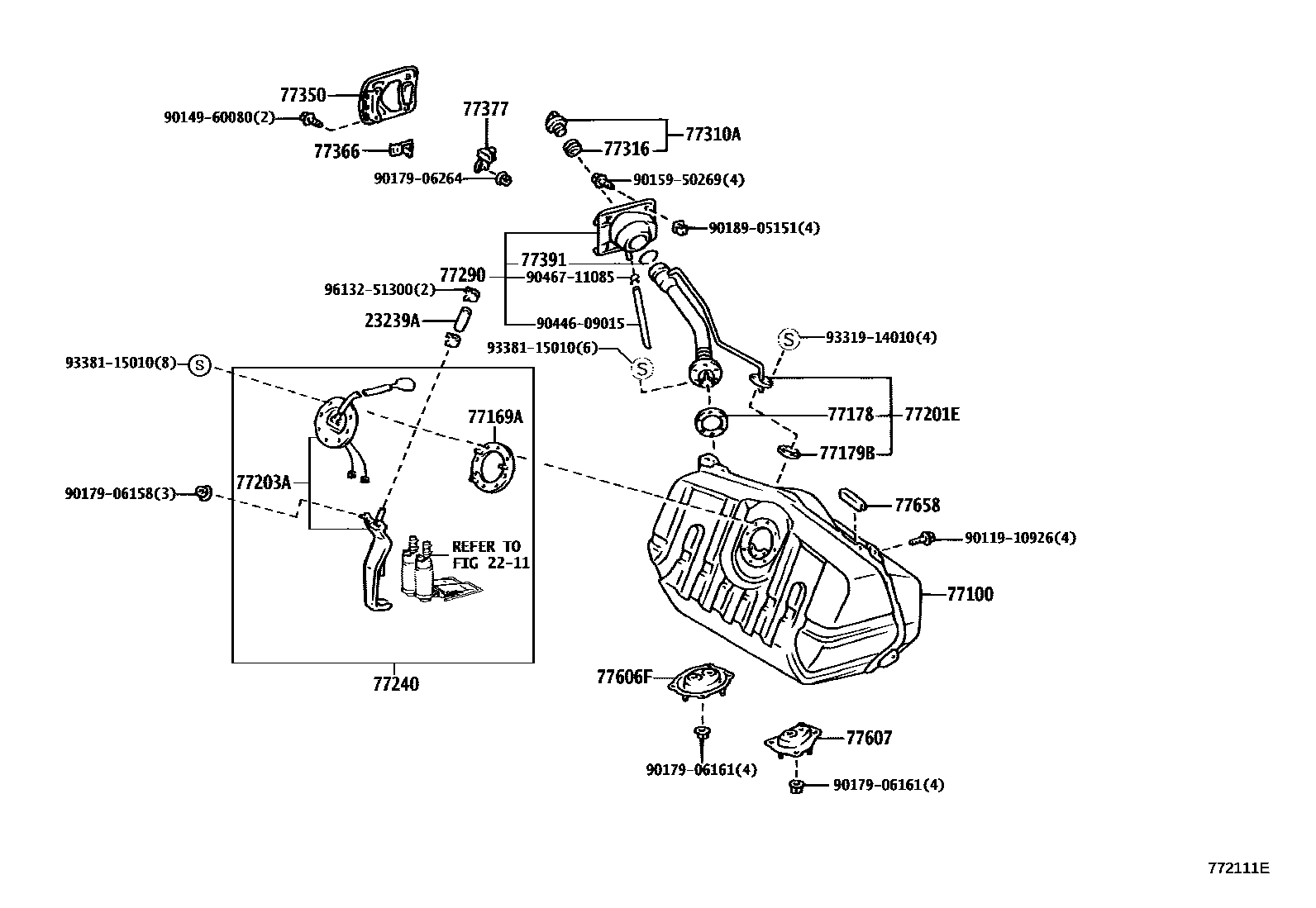

FUEL TANK & TUBE

0001 1 0002 1

2211

23239AHOSE

main23239-16010i1GZFE..GZG50199810

77100TANK ASSY, FUEL

main77001-40050iGZG50199810-200901

sub77001-40051

main77001-40051iGZG50200902

77169AGASKET, FUEL SUCTION TUBE SET

main77169-50020iGZG50199810

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20010iGZG50199810

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-50010iGZG50199810

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-40020iGZG50199810-201006

sub77201-40021

main77201-40021iGZG50201007

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-40020iGZG50199810

77240TUBE ASSY, FUEL SUCTION

main77240-40020iGZG50199810

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-40020iGZG50199810

77310ACAP ASSY, FUEL TANK

main77310-48010iGZG50199810

77316GASKET, FUEL TANK CAP

main77316-16010iGZG50199810

77350LID ASSY, FUEL FILLER OPENING

main77350-40010iGZG50199810-201011

sub77350-40011

main77350-40011iGZG50201012-201701

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-40010iGZG50199810

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-40010iGZG50199810

77391RING, FUEL INLET BOX

main77391-30010iGZG50199810

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-50020iGZG50199810

77607CASE SUB-ASSY, FUEL TANK COVER VENT, LH

main77607-50020iGZG50199810

77658MOULDING, FUEL TANK EDGE

main77658-40010iGZG50199810

9011910926

main90119-10926

9014960080

main90149-60080

9015950269

main90159-50269

9017906158

main90179-06158

9017906161

main90179-06161

9017906264

main90179-06264

9018905151

main90189-05151

9044609015

main90446-09015

9046711085

main90467-11085

9331914010

main93319-14010

9338115010

main93381-15010

9613251300

main96132-51300

31 parts on this diagram · 2 diagrams in section
