ARMREST & VISOR

0001 1 0002 1

74310VISOR ASSY, RH

main74310-40100-B0iGZG50..LHD199810-200004

LT. GRAY,TRIM1#

main74310-40100-E0iGZG50..LHD199810-200004

ORCHID,TRIM4#

main74310-40110-B0iGZG50..RHD199810-200004

LT. GRAY,TRIM1#

main74310-40110-E0iGZG50..RHD199810-200004

ORCHID,TRIM4#

main74310-40130-B0iGZG50..LHD200004-201701

LT. GRAY,TRIM1#

main74310-40130-E0iGZG50..LHD200004-201701

ORCHID,TRIM4#

main74310-40140-B0iGZG50..RHD200004-201701

LT. GRAY,TRIM1#

main74310-40140-E0iGZG50..RHD200004-201701

ORCHID,TRIM4#

74317COVER, VISOR BRACKET, RH

main74317-40010-B0iGZG50199810-201701

LT.GRAY,TRIM1#

main74317-40010-E0iGZG50199810-201701

ORCHID,TRIM4#

74318COVER, VISOR BRACKET, LH

main74318-40010-B0iGZG50199810-201701

LT.GRAY,TRIM1#

main74318-40010-E0iGZG50199810-201701

ORCHID,TRIM4#

74320VISOR ASSY, LH

main74320-40040-B0iGZG50..LHD199810-200004

LT. GRAY,TRIM1#

main74320-40040-E0iGZG50..LHD199810-200004

ORCHID,TRIM4#

main74320-40050-B0iGZG50..LHD199810-200004

CHINA SPEC,LT. GRAY,TRIM1#

main74320-40050-E0iGZG50..LHD199810-200004

CHINA SPEC,ORCHID,TRIM4#

main74320-40060-B0iGZG50..LHD200004-201701

LT. GRAY,TRIM1#

main74320-40060-E0iGZG50..RHD199810-201701

ORCHID,TRIM4#

main74320-40080-B0iGZG50..LHD200004-201701

CHINA SPEC,LT. GRAY,TRIM1#

main74320-40080-E0iGZG50..LHD200004-201701

CHINA SPEC,ORCHID,TRIM4#

74330AVISOR ASSY, CENTER

main74330-40010-B0iGZG50199810-201701

LT. GRAY,TRIM1#

main74330-40010-E0iGZG50199810-201701

ORCHID,TRIM4#

74348HOLDER, VISOR

main74348-50020-B1×2iGZG50199810-201701

LT.GRAY,TRIM1#

main74348-50020-E0×2iGZG50199810-201701

ORCHID,TRIM4#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-40040-B0iGZG50199810-201701

LT. GRAY,TRIM1#

main74610-40040-E0iGZG50199810-201701

ORCHID,TRIM4#

74610AGRIP SUB-ASSY, ASSIST

main74620-40010-B0×2iGZG50199810-201701

MD.GRAY,TRIM1#

sub74620-40011

main74620-40010-E0×2iGZG50199810-201701

ORCHID,TRIM4#

sub74620-40011

74613PLUG, ASSIST GRIP

main74617-40010×6iGZG50199810

74617CPLUG, ASSIST GRIP

main74617-40010×4iGZG50199810

74620BGRIP ASSY, ASSIST, REAR

main74610-40050-B0×2iGZG50199810-201701

LT. GRAY,TRIM1#

main74610-40050-E0×2iGZG50199810-201701

ORCHID,TRIM4#

74631BHOOK, COAT

main74605-40010-B0×2iGZG50199810-201701

LT.GRAY,TRIM1#

main74605-40010-E0×2iGZG50199810-201701

ORCHID,TRIM4#

74671SUPPORT, ASSIST GRIP

main74671-24010×4iGZG50199810

74671DSUPPORT, ASSIST GRIP

main74671-24010×6iGZG50199810

8121

9015960216

main90159-60216

9015960319

main90159-60319

9016250009

main90162-50009

9323925016

main93239-25016

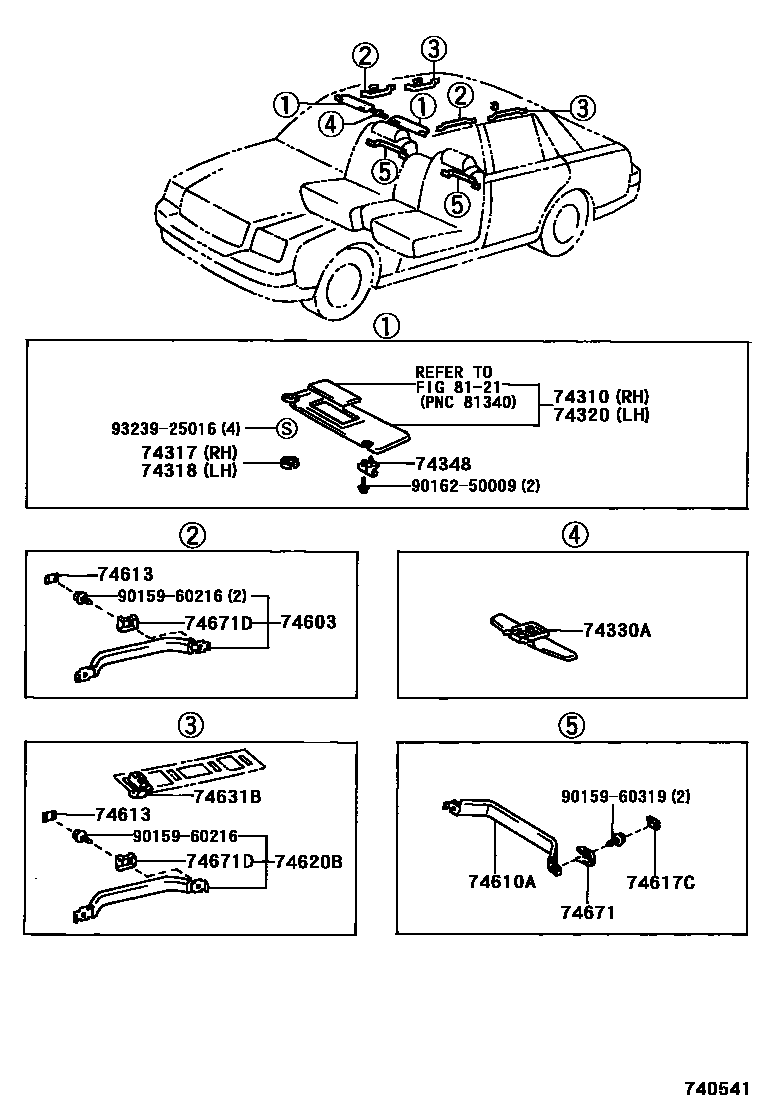

19 parts on this diagram · 2 diagrams in section
