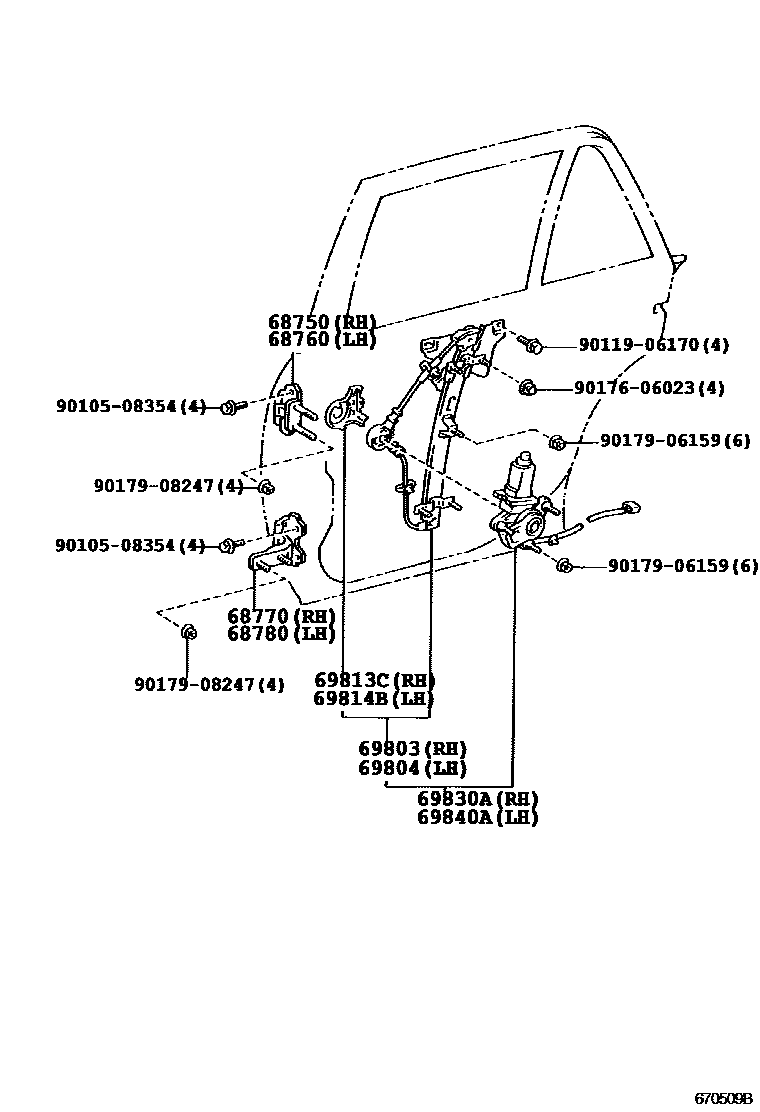

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-40020iGZG50199810-201701

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-40020iGZG50199810-201701

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-50030iGZG50199810-201701

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-50030iGZG50199810-201701

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-40050iGZG50199810

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-40050iGZG50199810

69813CPLATE, REAR DOOR POWER WINDOW REGULATOR BASE

main69811-22120iGZG50199810

69814BPLATE, REAR DOOR WINDOW REGULATOR BASE, LH

main69812-22030iGZG50199810

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-40080iGZG50199810

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-40090iGZG50199810

9010508354

main90105-08354

9011906170

main90119-06170

9017606023

main90176-06023

9017906159

main90179-06159

9017908247

main90179-08247

15 parts on this diagram · 1 diagram in section
